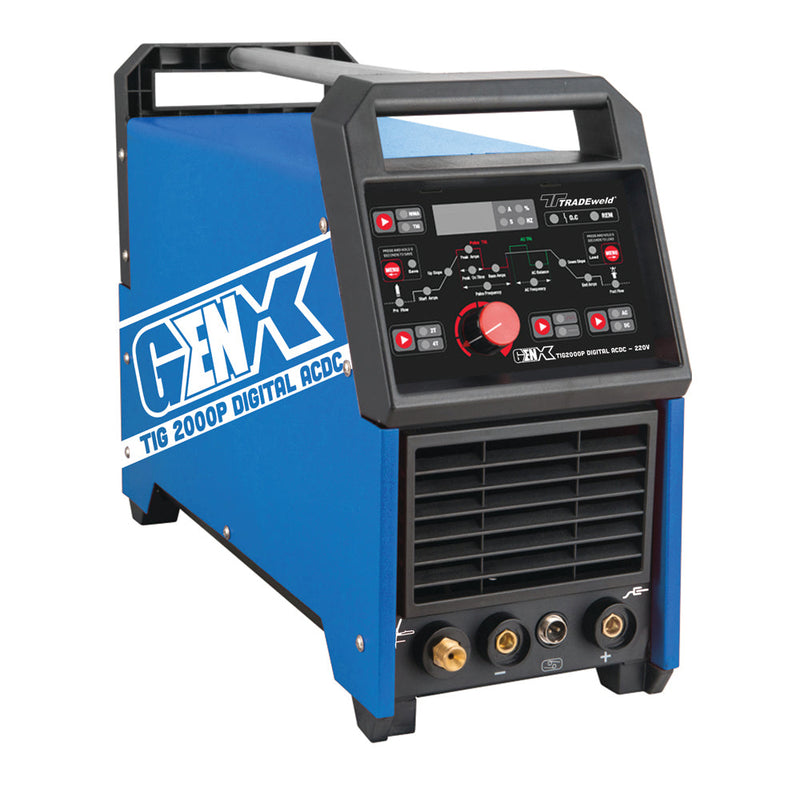

Tradeweld | GENX 200A Tig Inverter (Online Only) - Toolcraft
SKU EWM0130-I

TRADEweld | GENX 200A TIG Inverter

by TRADEweld
Warehouse Stock

Expected delivery between Thursday, October 15 and Wednesday, October 21 - excluding public holidays

Heavy Item

Due to the size of this item there is a shipping surcharge*

R 14,809.00 - R 14,809.00
R 14,809.00
R 14,809.00
R 14,809.00 - R 14,809.00
R 14,809.00
Split your purchase with interest-free payments from R 2,468.16/m

Make your first payment today, then monthly over 2ā€“6 months.

We accept

Visa Mastercard Apple Pay Google Pay Capitec Pay Stitch Pay Later
Request a quote

GENX 200A Tig Inverter Welder

Manufactured to the highest standards using cutting edge 50kHz high frequency CPU inverter technology

  • Digital Display
  • 32 Bit High Speed MCU Control (Store Welding Parameters)
    • Tig Pulse mode
    • 4T/ 2T Function
    • With Pre Flow
    • Arc Start Current
    • Up slope
    • Peak Current
    • Base Current
    • Arc End Current
    • Downslope
    • Pulse Ratio
    • Post Flow
    • Clearance Width
    • AC Frequency
  • Pedal Control
  • MMA Mode with VRD Control
  • Over Current & Overheating Protection

Features

  • Rated input voltage: AC220VĀ±15%
  • Frequency: 50/60Hz
  • Rated input current (A): MMA: 38.1/TIG: 28
  • Output current range (A): MMA: 25-180/TIG: 15-200
  • Arc initiating: H.F. Oscillating
  • Preflow gas: 0,1-1,0
  • Postflow gas: 0,1-15
  • Includes torch: WP17 & foot pedal
  • Efficiency: 80%
  • Duty cycle: 60%@200A
  • Fan cooled
