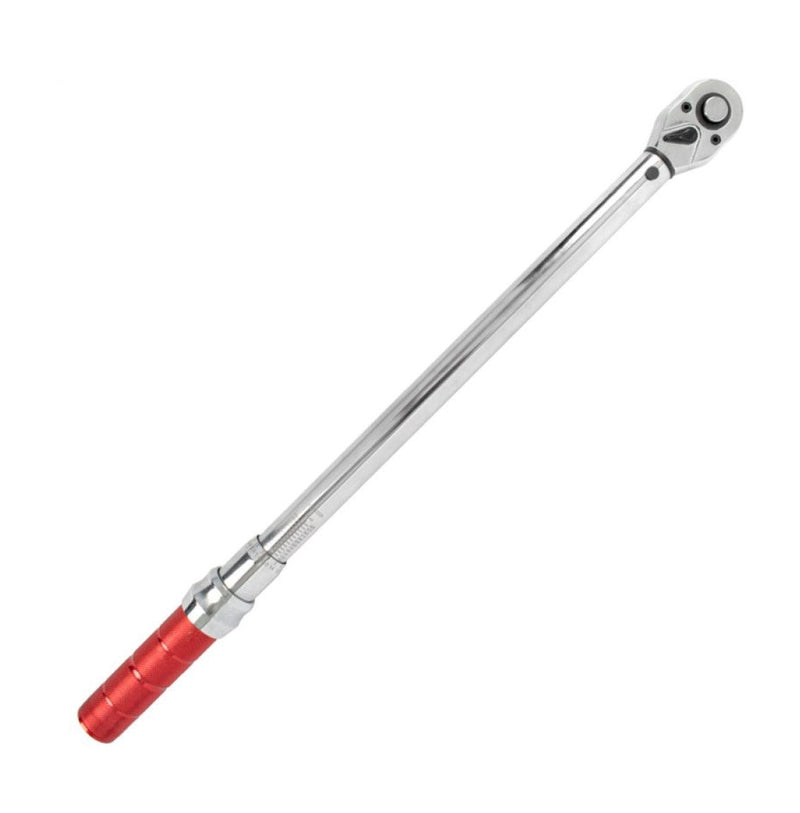

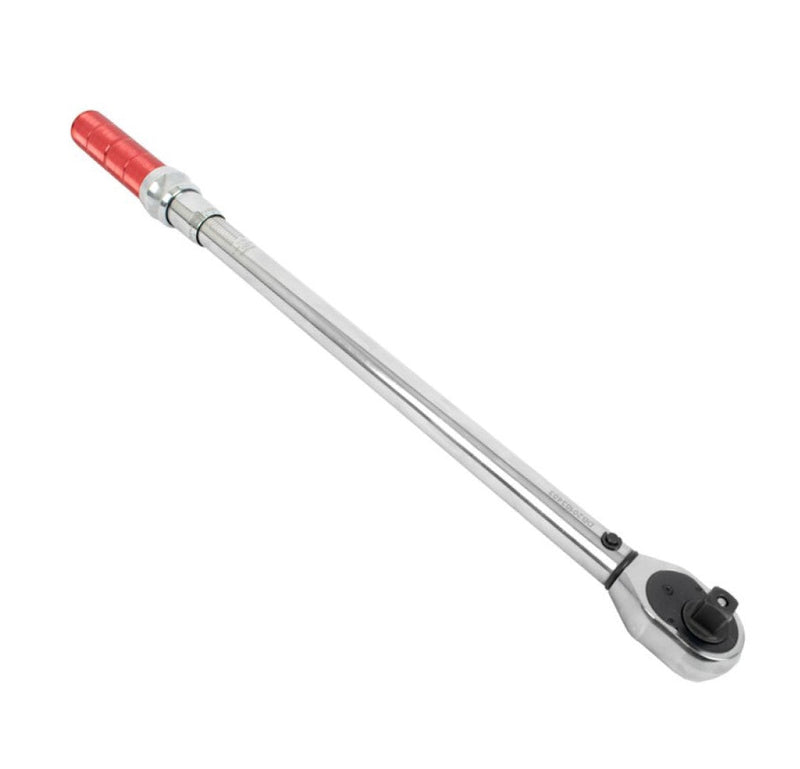

70-400Nm Mechanical Torque Wrench
To loosen or tighten screws, bolts and nuts to a desired torque setting.
- Handle: Aluminium
- Body: Steel
- Macro torque scale
- Direction paddle
- Micro torque scale
- Knurled grip Aluminium handle
- Adjustment locking collar
Contents

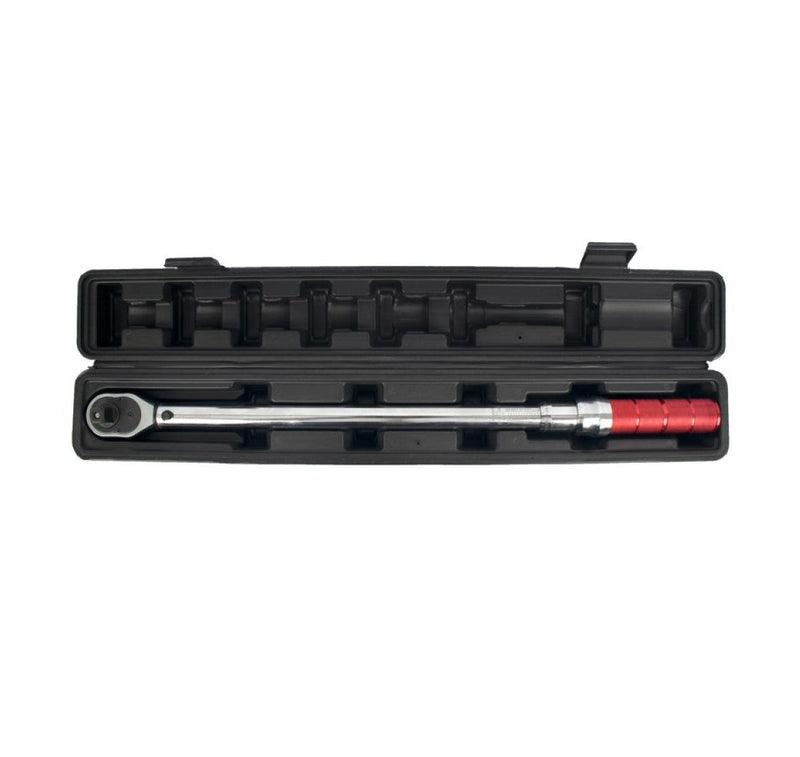

- Torque wrench
- Manual
Specifications
- Square drive: 1⁄2”
- Torque range: 70-400Nm
- Ratchet gears: 72
- Accuracy: ±3%
- Increment: 1Nm
- Units: Nm & lb/ft
WARNING: Do not apply torque in excess of the maximum capacity of the wrench. Apply load on the grip only and do not use any handle extension bars for additional leverage. Do not disassemble the wrench for any reason. Highly stressed internal components may cause severe injury when released in an unintended manner. The wrench should be re-calibrated periodically. The calibration of the wrench should be checked at least once a year, after any abnormal handling or overloading, or after 5000 cycles. Do not leave the wrench in any place exposed to excessive heat, humidity, or direct sunlight.
