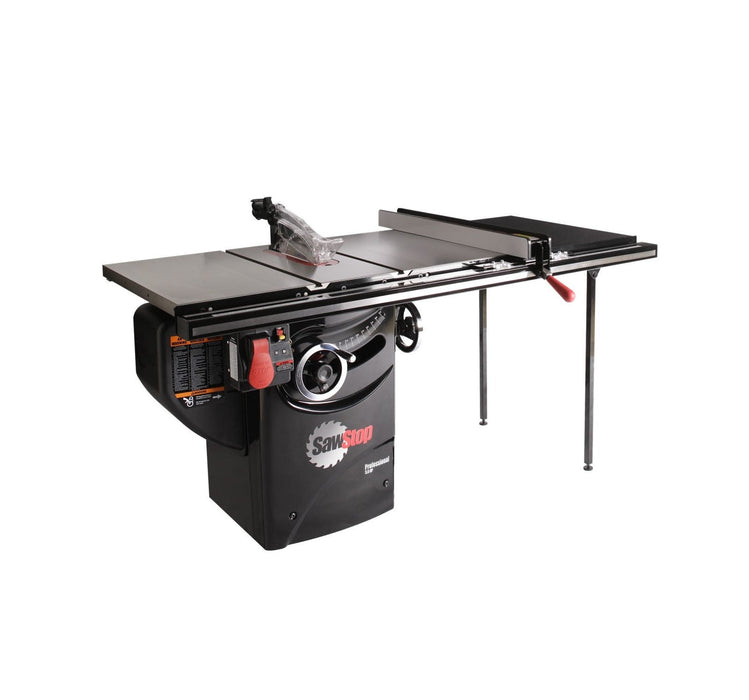

SawStop | Professional Cabinet Saw, 254mm, 3HP (Excludes Fence & Extension Table)

by SawStop
SKU SAW PCS31230-AU
Save 10% Save 10%
R 128,945.00
R 128,945.00 - R 128,945.00
R 128,945.00
R 116,090.00
R 116,090.00 - R 116,090.00
R 116,090.00



The #1 Selling Table Saw in the USA!

The SawStop Professional 3HP Cabinet Saw offers superior performance for avid hobbyists and small-shop professionals.Due to the proprietary Sawstop Technology, this  Table Saw is unsurpassed in safety anywhere in the world!

With exemplary tolerances on all componentry and superb all round finishes, the Sawstop Professional Cabinet Saw meets the most exacting standards of today's professional woodworker.

Quick Facts:

  • Cast-Iron Table and Wings.

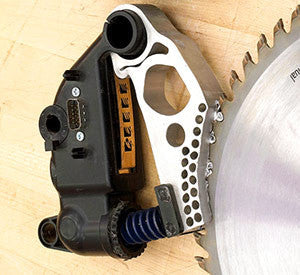

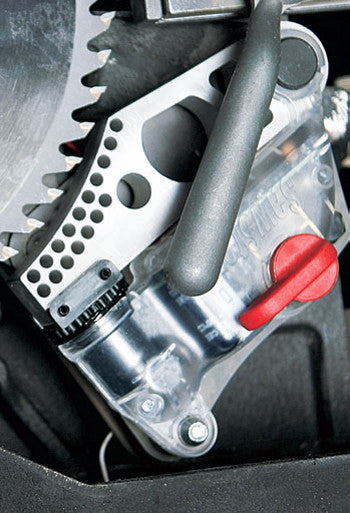

  • SawStop Safety System stops on contact with skin.
  • Integrated and Industrial mobile base options.
  • Cabinet Format, Cabinet-Mounted Trunnion, Interior Motor
  • MAX 3.0HP Power, 203 kg (449 lbs) typical config weight
  • 1760mm wide x 927mm deep x 864mm high

Specifications:

  • Solid Cast Iron Precision Milled Central Table: 20" Wide x 27" Deep (508mm Wide x 686mm Deep).
  • 2 each Solid Cast Iron Precision Milled Extension Wings: 12" Wide x 27" deep (305mm Wide x 686mm Deep) each.
  • Blade Diameter: 10" (254mm)
  • Arbor: 5/8" (15.875mm)
  • Blade Tilt: Left at a Maximum of 45º
  • Maximum Depth of Cut: Blade at 0º: 3-1/8" (79.4mm).
  • Maximum Depth of Cut: Blade at 45º: 2-1/4" (57.15mm)
  • Maximum Rip Cut Right of Blade: 36" (914.4mm).
  • Maximum Rip Cut Left of Blade: 12" (305mm).
  • Dado Set Diameter: 8" (200mm) NOTE: Requires 8R2 Brake and Dado Throat Plate.
  • Maximum Dado Set Width of Cut: 13/16" (20.6375mm)
  • Available Table in Front of Blade at Maximum Elevation: 10-1/4" (260.35mm)
  • Arbor Maximum Allowable Runout: 0.001" (0.0254mm)
  • Table Flatness (Measured Diagonally): 0.010" (0.254mm) Maximum Gap
  • Blade Alignment to Mitre Slot: 0.010" (0,254mm) Maximum Displacement
  • Alignment Between Riving Knife / Kerf Splitter & Blade: 0.010" (0.254mm) Maximum Difference.
  • Riving Knife / Kerf Splitter Thickness: 0.090" (2.286mm)
  • Mitre Slots Centre to Centre: 11-1/8" (282.6mm)
  • Dust Collection Blade Guard: Polycarbonate, Extends 1-3/16" (30.16mm)
  • Available Table Behind Blade at Maximum Elevation: 7-1/2" (190.5mm)
  • Insert: Zero Clearance, Phenolic Core with Melamine Surface.
  • Dust Collection Port: 4" (101mm)
  • Weight: 203Kg.

Included with Your Sawstop Professional 3HP Cabinet Table Saw:

  • 2 each Cast Iron Extension Wings
  • Mitre Gauge
  • Dust Collection Blade Guard
  • Riving Knife
  • 2 each Blade Wrenches
  • Push Stick
  • 10" (254mm) Blade
  • Standard Brake Cartridge
  • Owner's Manual
  • 2 each Hardware Packs
  • 3mm Hex Key
  • 5mm Hex Key
  • 8mm Hex Key
  • Blade Spacing Adjustment Gauge
