Pro-Tech | Router Bit Corner Rounding 3/4 x 1/2 1/8" Radius

SKU KP1200
Original price R 349.00 - Original price R 349.00
Original price R 349.00
R 349.00
R 349.00 - R 349.00
Current price R 349.00

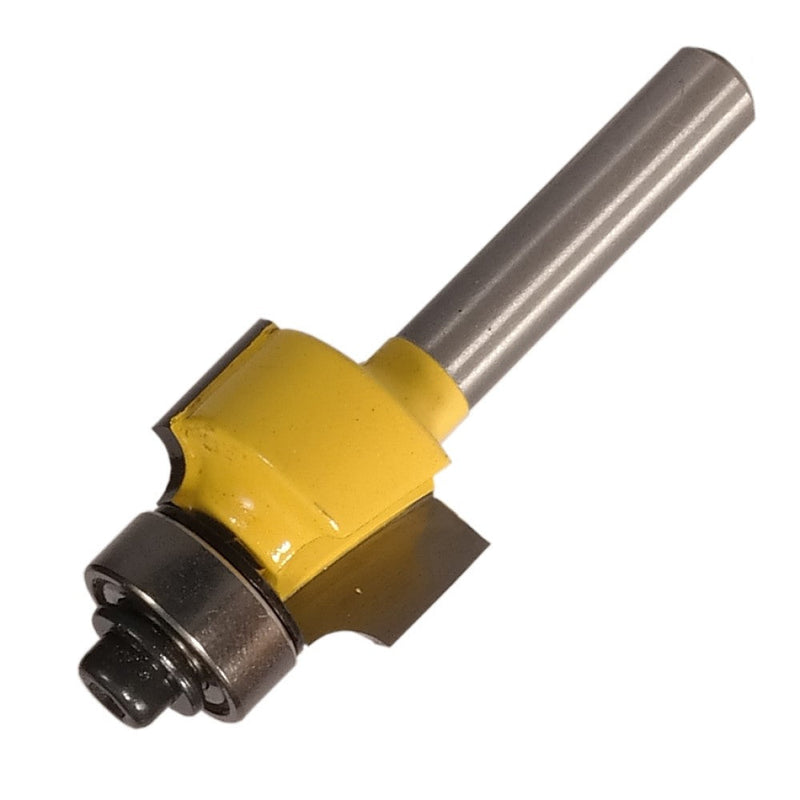

Corner Rounding Router Bit

Corner ound or round-over router bit sampleThe corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet if required. The cut can be used to ease edges, as a simple profile, or as a part of a complex one.

Other names for this router bit are round-over, rounding over and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit.

Rounded edges give a project a softer, smoother look. The greater the radius of the round-over, the more pronounced this effect becomes.

How to measure the radius

Flush trim profile

Rounding an edge makes it more durable because it won't show dents, splinter, or lose its finish as easily as a sharp corner. Like a knife that loses its sharp edge, a rounded corner is more 'friendly' to people or objects that come in contact with it.

Manufacturers classify round-over bits according to the radius they cut. So, a 3/8" round-over bit cuts a 3/8" radius, and so forth. To determine the radius of a round-over bit, measure either of the dimensions shown in the drawing.

This router bit has a 6,35mm shank (shaft) that will fit most small or large routers. Please ensure that you select a router bit with a shank (shaft) size that will fit into your router collet.
