Pro-Tech | Drawer Slide Installation Jig 2Pc

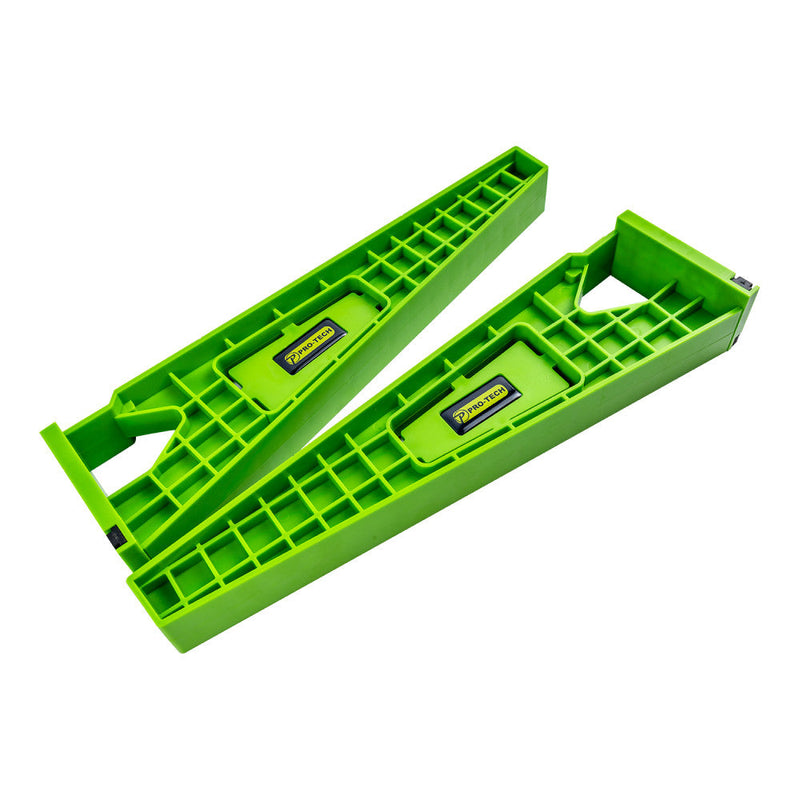

2Pc Drawer Slide Installation Jig

• 1 x Left drawer slide installation jig
• 1 x Right drawer slide installation jig
• Material Hardened plastic

Features

• Cut-out clamping surfaces
• Durable hardened plastic construction
• Compact design and lightweight
• User friendly
• Two spacing tabs on each drawer slide installer making positioning easier, horizontal and vertical
• Two reference drawer alignment assembly markings
• Used for mounting, furniture drawers in cabinets, cases etc.
• Used in Woodworking, Construction and DIY

Assembly

• Mark the desired position for the drawer
• Push out the built in tabs to position the jig on the brackets or layout line
• Clamp the drawer slide installer on either sides (left and right)
• Drive in the screws on the slide
• Unmount the installers and clamp it in front of the brackets
• Position the drawer box and pull out the slides in position
• Drive in the mounting screws onto the drawer box
• Always ensure that the jigs are clamped firmly in position to avoid movement during use
