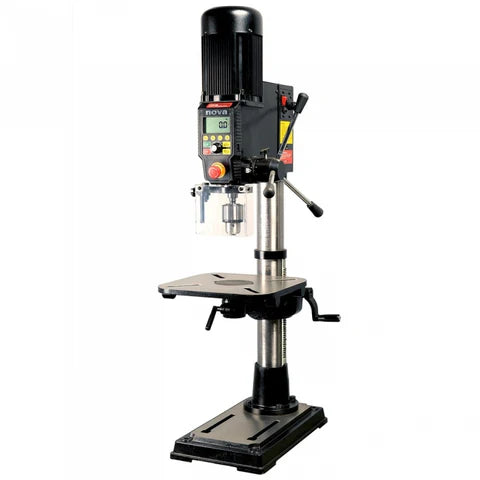

NOVA Viking 16inch Benchtop Drill Press

NOVA Viking 16inch Benchtop Drill Press

by Nova
SKU 83701
R 29,850.00 - R 29,850.00
R 29,850.00
R 29,850.00
R 29,850.00 - R 29,850.00
R 29,850.00

Product Description



DIRECT DRIVE POWER
AND CONSISTENT
TORQUE		 1HP DVR Smart Digital Motor powered by STRIATECH delivers correct speed and power to maintain optimal torque direct to the drill head – across the entire speed range. No belts or pulleys to cause vibration or power loss. A belt and pulley system absorb typically 20% of the motor power before it even gets to the tool. The DVR motor delivers constant torque with all materials.
SMART DIGITAL MOTOR Smart sensors interacting in a number of ways –
safety, intelligence workshop assist, and performance
BUILT IN LASER
AND LIGHT		 Quickly locate center position with the cross haired laser.
Two powerful LED lights to keep your project well lit.(This feature not available in all markets.)
CAST IRON
WOODWORKING
TABLE		 Solid Cast Iron for maximum stability.
Maximum flexibility and options.
Woodworking design to provide maximum clamping and accessory options.
12 2/3″ x 12 2/3″ (320mm x 320mm)
Tilting and Rotating
ELECTRONIC
VARIABLE
SPEED		 150 – 3,000 RPM (programmable to 6,000 RPM); Versatile for a variety of projects –
Large deep hole drilling, mortising, high speed sanding.
FORWARD
AND REVERSE		 For LH drill bits, gives you more flexibility for projects.
ELECTRONIC
DEPTH
STOP		 Quickly and accurately automatically stops to the depth you program for your project. Precision drilling.

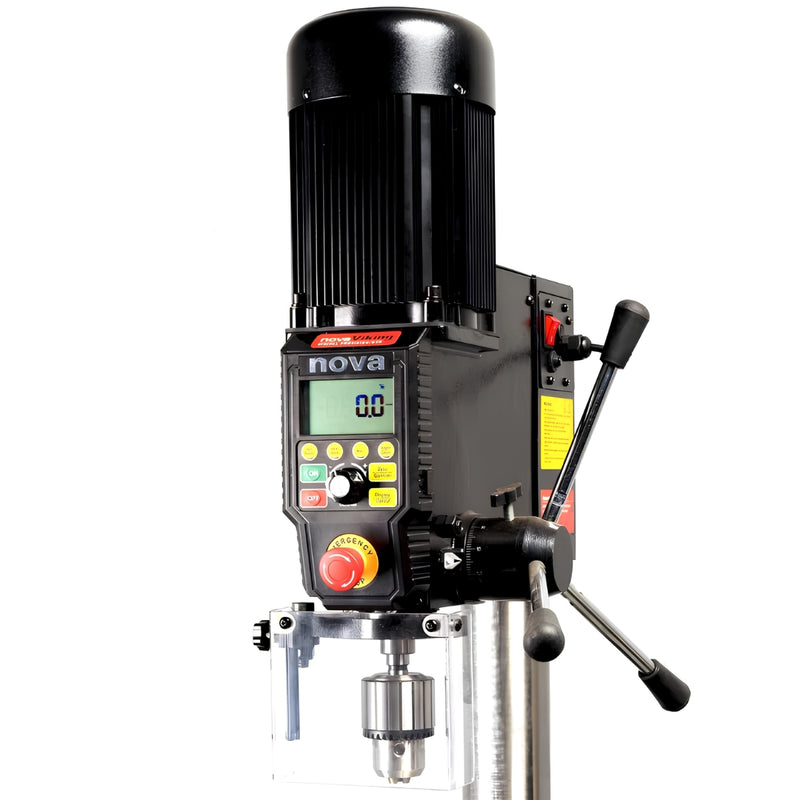

DISPLAY Large, easy to read display with choice of metric or imperial (fractions or decimal).
Easy to switch between modes.
SPLIT MOTOR
(EXPOSED)		 Easy access to motor. Much easier to get serviced for both customers and dealers.
SELF START Enables a one-handed drilling operation by automatically turning on and off.
BRAKING E-stop.
SPECIFICATIONS Variable Speed: 150 – 3,000 RPM (programmable to 6,000 RPM)
Swing: 16”
Stroke: 4.5”
Spindle to Table: 12 2/3″ (320mm)
Spindle to base: 22 2/3″ (575mm)
Drill Chuck: 5/8” (1-16mm)
Spindle Taper: 2MT

Quill:
4.5” of quill travel in just 1 1/4 revolutions of the handle, which allows for far greater accuracy.

Motor:
DVR High Torque 1HP motor, Electronic Variable Speed.
1HP Direct Drive; Single Phase Input Supply.110V-220V, MAX 10A-15A, 50Hz/60HzWeight: 154lbs/68.85kgs
