Milescraft | Hinge Mate 300 Door Mortise Kit Router Jig 1213

SKU 821213
Sold out
Original price R 799.00 - Original price R 799.00
Original price R 799.00
R 799.00
R 799.00 - R 799.00
Current price R 799.00

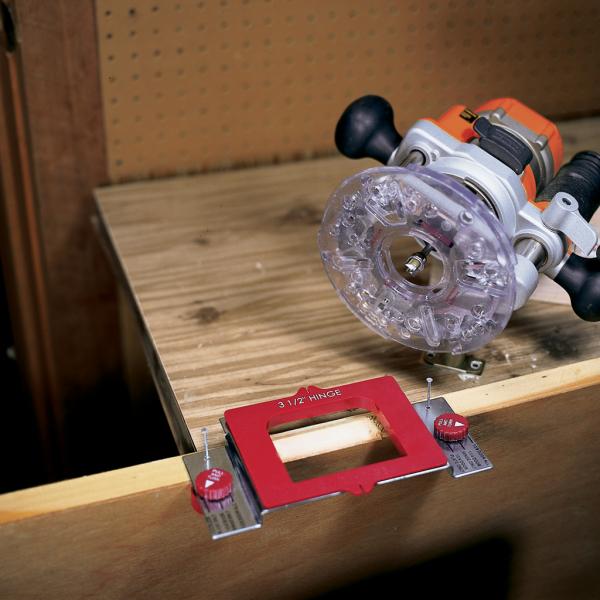

  • The Milescraft Door Mortising Router Jig is allows you to increase security and privacy in your home by replacing doors without damaging the door or jamb
  • By routing matching mortises for hinges into the door and into the jamb, as well as Hinge Plate, Latch Plates & Strike Plates, you won’t have to tear a hole in the wall just to hang a better wooden door


Steel Template Frame:

  • Durable Steel Frame with adjustable cams to allow for 1-3/4 (44.5mm) and 1-3/8" (35mm) Door Settings
  • Can be mounted on Bothe the Door and the Jamb

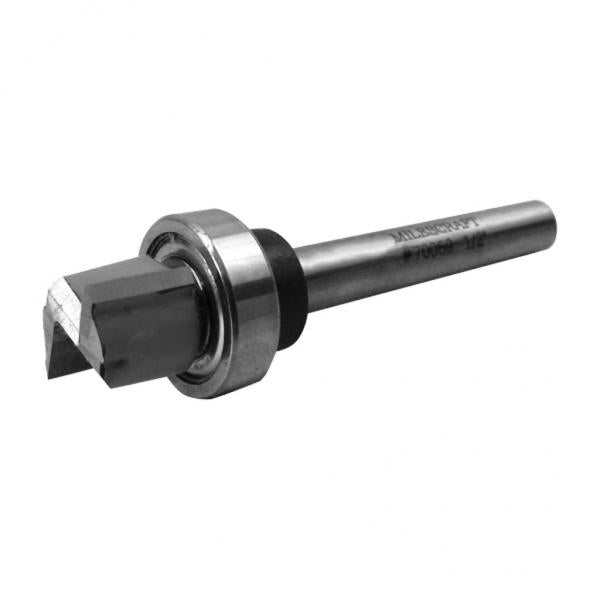

1/2" included Router Bit:
  • Tip is made of Durable Tungsten Carbide
  • Router Bit with Ball Bearings eliminates the need for Guide Bushings
  • Contains Templates needed to route Hinge, Strike Plate, and Latch Plate Mortises
Hinge Template Sizes:
  • 2-1/2"(63.5mm)
  • 3"(76.2mm)
  • 3-1/2" (88.9mm)
  • 4" (101.6mm)
  • 4-1/2" (114.3mm)
Strike Plate Template Sizes:
  • 1-1/8" x 2-3/4" (28.6X70mm)
  • 1-1/2" x 2-1/4" (38X57mm)

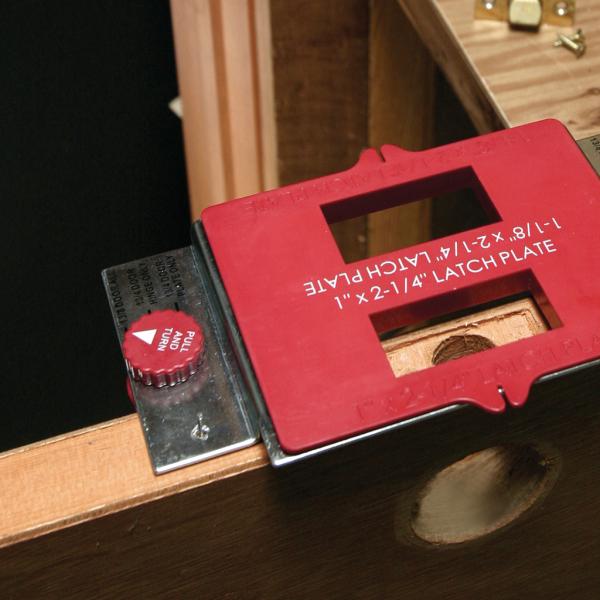

Latch Plate Template Sizes:
  • 1" x 2-1/4" (25.4X57mm)
  • 1-1/8" x 2-1/4" (28.6X57mm)
  • 1-1/8" x 2-3/4" (28.6X70mm)
Templates Rotate to achieve either a 5/8" (15.88mm) or 1/4" (6.35mm) Radius

Please Note: Some chiseling is required for templates with square corners. CornerChisel is sold separately
