Laguna | Table Saw 10" F3 3HP incl 52" Rip Fence

 F3 Fusion 10" Table Saw

The new Laguna Fusion line was developed for demanding woodworkers. Designed around quality components with an emphasis on superior dust collection enhanced by

• Motor: 3HP 220 Volt
• Maximum Rip Capacity: 52″ (1321mm)
• Blade Tilt: Left Tilt w/ DRO (Digital Readout)
• Cabinet Type: Full Cabinet
• Maximum Blade Diameter: 10″ (254mm)
• Wheel System: Built -in
• Arbor Size: 5/8″ (16mm)
• Dust Collection: 4″ (102mm) Cabinet Port, 1-1/2″ (38mm) Overhead

Additional Features

• Industrial 14 Gauge Cabinet
• Accessory Tables (Outfeed & Rip)
• Industrial Fence Rail
• Industrial Fusion Fence
• Premium Electrical & Hardware Components
• Premium Miter Gauge
• Cast Iron Fusion Trunnions

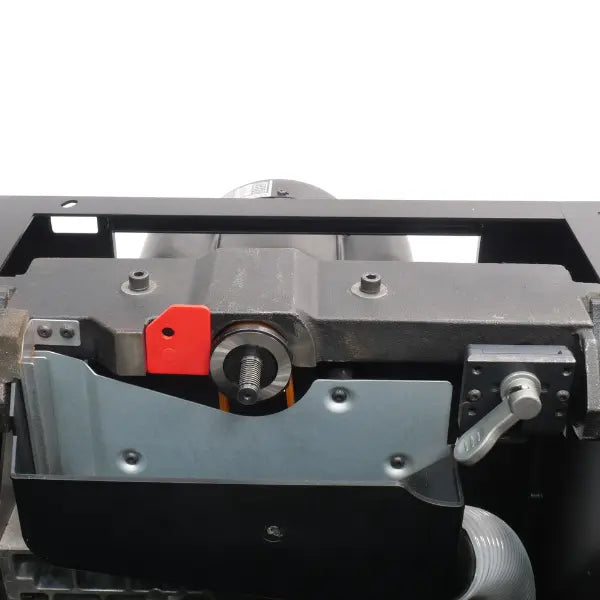

• Cabinet Mounted Arbor
• Cast Iron Table & Wings
• European Hi-Lo Fence
• Premium Zero Clearance Throat Plate
• Fusion Hi-Lo Dust Collection
• Magnetic Contractor Switch
• Quick-Release Blade Guard and Spreader
• Riving Knife Included
• Push Stick Included
• Miter Gauge Included
• Blade Changing Tool Included
• Integrated Tool Storage
• 10 x 40T Carbide-Tipped Blade Included
• Premium Arbor & Motor Bearing
• Mobility Built Into Cabinet

Specifications

• Motor: 3HP TEFC (Totally Enclosed, Fan-Cooled Motor)
• Dust Port Size: 4″ (102mm)
• Blade Guard Dust Port Size: 1-½″ (38mm)
• Table Saw Type: Cabinet
• Maximum Blade Diameter: 10″(254mm)
• Arbor Size: ⅝″ (16mm)
• Arbor Speed: 4500 RPM
• Maximum Width Of Dado: ¾″ (19mm)

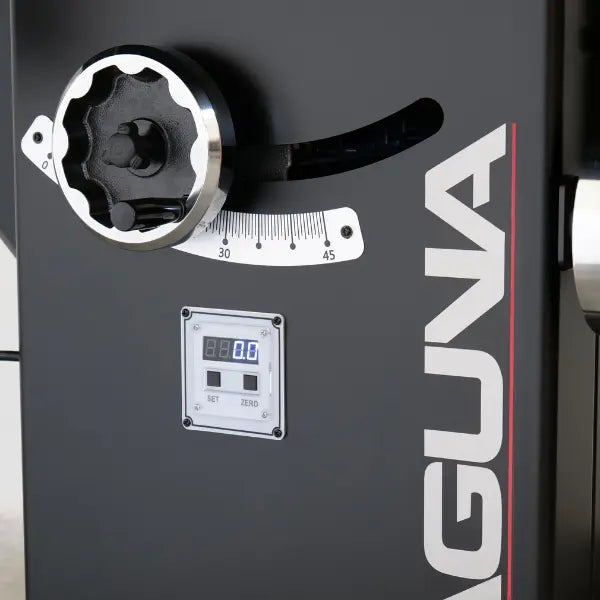

• Blade Tilt Direction: Left Tilt w/ DRO (Digital Readout)
• Maximum Rip Capacity: 52″ (1321mm)
• Wheel System: Built-In
• Max Blade Tilt: 45°
• Maximum Depth Of Cut At 90°: 3-⅛″ (80mm)
• Maximum Depth Of Cut At 45°: 2-⅛″ (54mm)
• Max Rip Right Of Blade With Included Fence & Rails: 37″ * (940mm)

* The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on LEFT side is provided only to make the ON/OFF switch position adjustable.

The new Laguna Fusion line was developed for demanding woodworkers.
