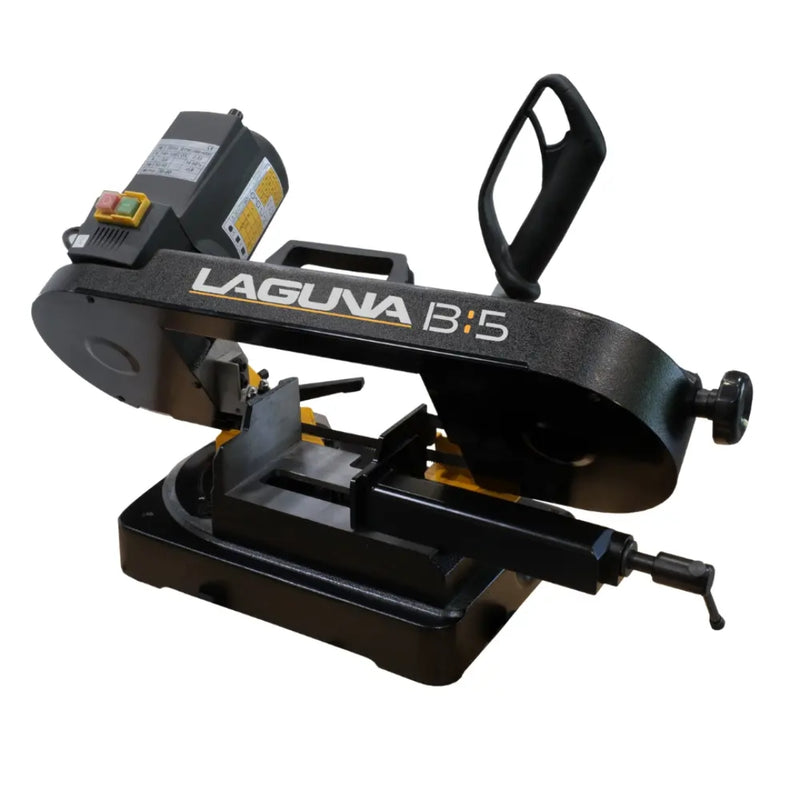

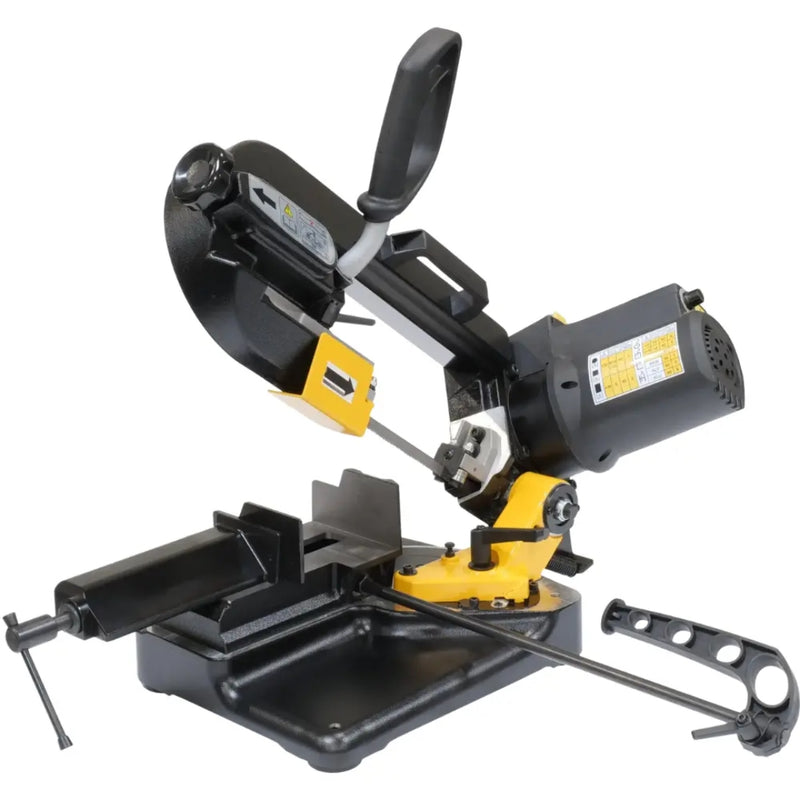

Laguna B:5 5" Horizontal Metal Cutting Bandsaw

The B:5 Horizontal Bandsaw is a compact, professional-grade metal cutting saw built for shop floors that demand precision and reliability. With a 1HP motor and variable blade speed from 82 to 262 FPM, the B:5 handles carbon steel, stainless steel, copper alloys, cast iron, and aluminum with consistent, accurate results.

• Motor: 1HP
• Voltage: 120V
• Blade Speed: 82–262 FPM
• Cutting Capacity 90° (Round): 4.92 in
• Cutting Capacity 90° (Rectangular): 5.12 × 4.92 in
• Cutting Capacity 45° (Round): 2.99 in
• Cutting Capacity 45° (Rectangular): 2.99 × 2.99 in
• Cutting Capacity 60° (Round): 1.97 in
• Cutting Capacity 60° (Rectangular): 1.97 × 1.97 in
• Cutting Angle Range: 0°–60°
• Blade Size: 0.51 × 0.026 × 56.69 in
• Bow-Saw Material: Aluminum
• Noise Level: ~60 dB(A)
• Assembled Dimensions (L×W×H): 26.4 × 12.2 × 18.9 in (670 × 310 × 480 mm)
• Machine Weight (Net): 46.3 lbs (21 kg)
• Machine Weight (Gross): 50.7 lbs (23 kg)
• Packing Dimensions: 28.5 × 14.76 × 17.56 in

Motor & Power

• 1HP motor running on standard 120V power — no special wiring required
• Variable blade speed dial (82–262 FPM) for optimizing cuts across different metals
• Thermal protector and CE-rated electrical system for operator safety

Cutting Performance

• 90° capacity: 4.92″ round bar, 5.12″ × 4.92″ rectangular stock
• 45° capacity: 2.99″ round and rectangular stock
• 60° capacity: 1.97″ round and rectangular stock

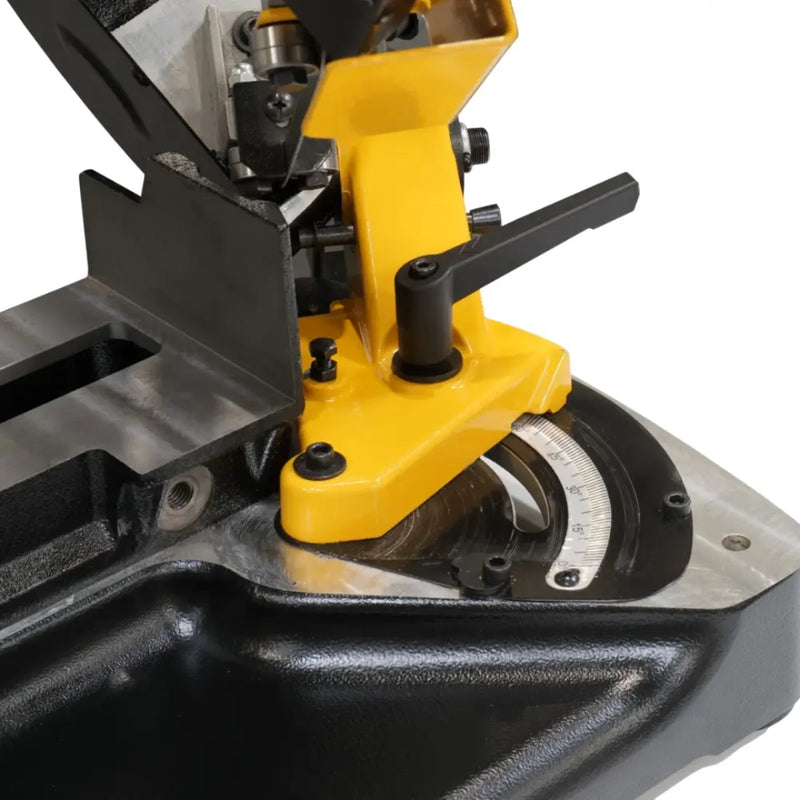

• Cutting angle adjustable from 0° to 60° via locking handle

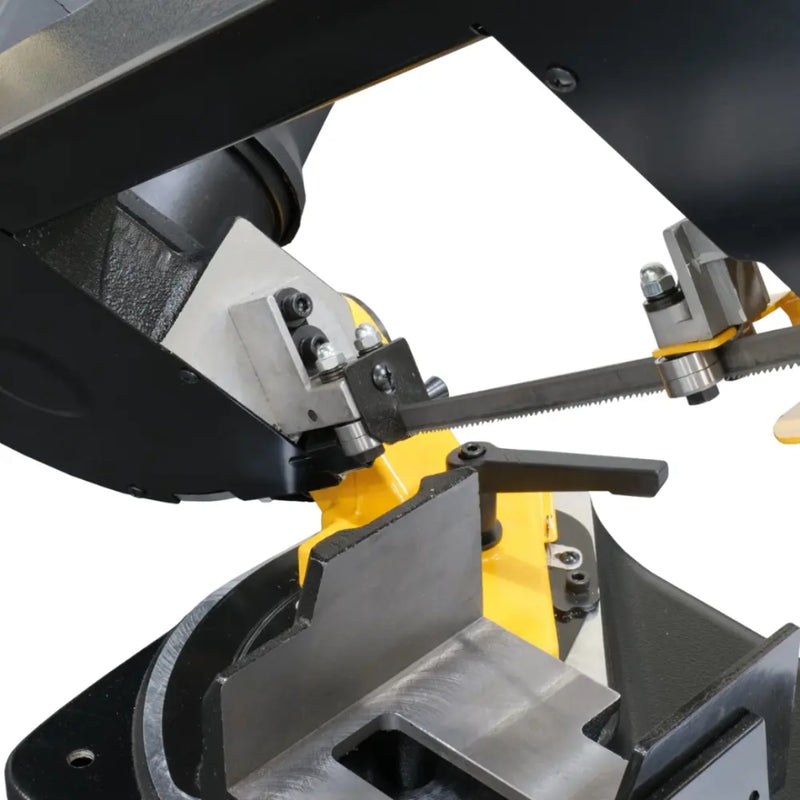

• Blade guide arm adjusts to minimize deflection close to the workpiece

Vise & Workholding

• Integrated vise with swivel jaw for 90° and angled cuts
• Vise jaw auto-adjusts to any stationary jaw position
• Work stop rod assembly included for repeatable length cuts

Blade System

• Blade size: 0.51 × 0.026 × 56.69 inches
• Aluminum bow-saw frame keeps weight low while maintaining blade stability
• Single-knob blade tensioning system with 1/4″ deflection target
• Blade tension should be checked every 8 operating hours

Build & Ergonomics

• Assembled dimensions: 26.4 × 12.2 × 18.9 inches (670 × 310 × 480 mm)
• Four rubber feet with mounting holes for secure bench attachment
• Two mounting methods: lag screw to table surface or hex bolt through table
• Adjustable handle with set screw for ergonomic positioning
• Bottom stop screw prevents over-travel during cutting
• Noise level approximately 60 dB(A)
