Kreg | Precision Beaded Face-Frame System KR PRS1200

Kreg Precision Beaded Face-Frame System - The Fastest, Easiest, and Most Affordable Way to Build Beaded Face-Frames in a Home Shop

Beaded face frames are a great way add detail, richness, and value to your cabinetry work. The Precision Beaded Face-Frame System works in conjunction with your full-size router table to serve as the fastest, easiest, and most affordable way to build beaded face-frames in a home shop.

Through a process of precise notching of rails and stiles, the Precision Beaded Face-Frame System simplifies standard beaded face-frame construction by eliminating the need to make intricate cuts on a table saw, fit and refit miters, or spend thousands of dollars on a large specialized machine. The end result is higher quality, more consistent results, in less time and with less effort than before.

How It Works

• Use the control arm and smooth-sliding base to plunge the stiles into the specialized notching bit
• Use the Precision Router Stop to ensure perfectly placed notches on the rails
• Switch to your standard routing fence and specialized beading bit to apply a decorative bead
• Use Kreg Joinery to secure the notched stiles and rails together
• Glue is optional

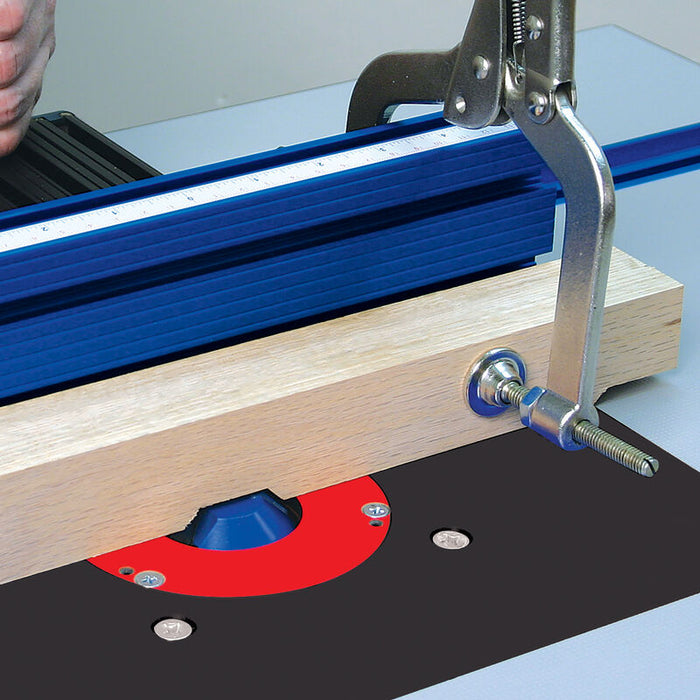

Integrated Clamp

• This heavy-duty clamp holds your workpieces firmly in place
• It features a quick-release handle and adjustability for variable material thicknesses

Control Arm

• The handle can be connected to the Precision Beaded Face-Frame System with or without the Control Arm
• The arm provides improved control, smooth operation, and reduces the force necessary to plunge the workpiece into the bit

Sliding Base

• The sliding base of the Precision Beaded Face-Frame System features 20 internal stainless-steel ball bearings that guarantee smooth operation

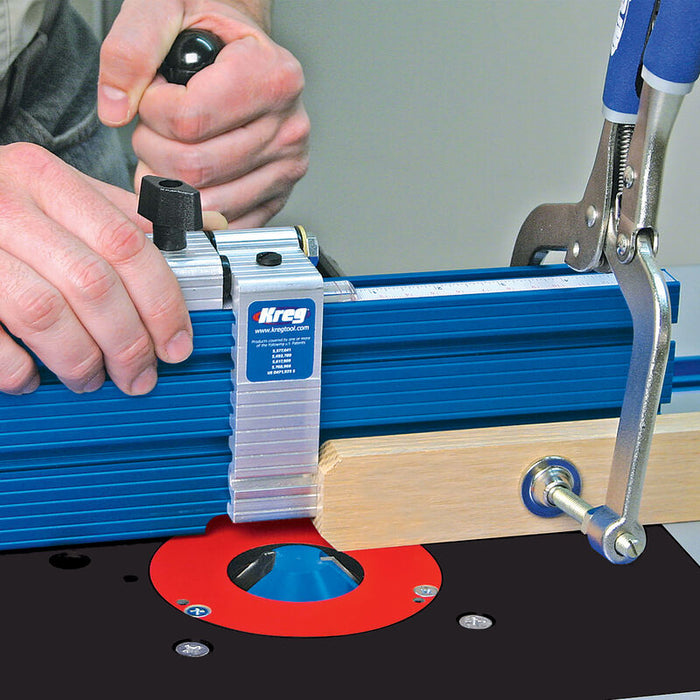

Router Table Stop

• The included Precision Router Table Stop lets you repeat precise cuts again and again
• It features a Precision Lens Cursor for magnified accuracy, and it can be flipped out of the way when not in use

Specifications

• Features: Easily add detail to your stile and rails to add a nice decorative touch and make precise cuts to your pieces to fit together perfectly
• Construction: Aluminium, steel, plastic polymer
• Capacity: Face-frame rails and stiles up to 1½" on up
• Compatibility: Precision Router Table Top, Precision Router Table System and Kreg Beading and Notching Router Bits

Included

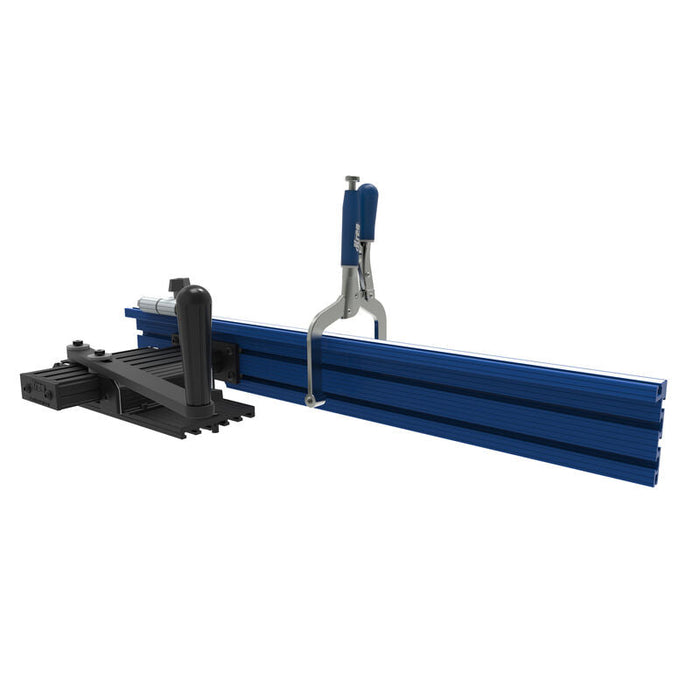

• Beaded Face-Frame Fence System
• 1x Precision Router Table Stop
• 1x 1/4" x 1 1/2" (6mm x 38mm) notching bit
• 1x 1/4" (6mm) standard beading bit

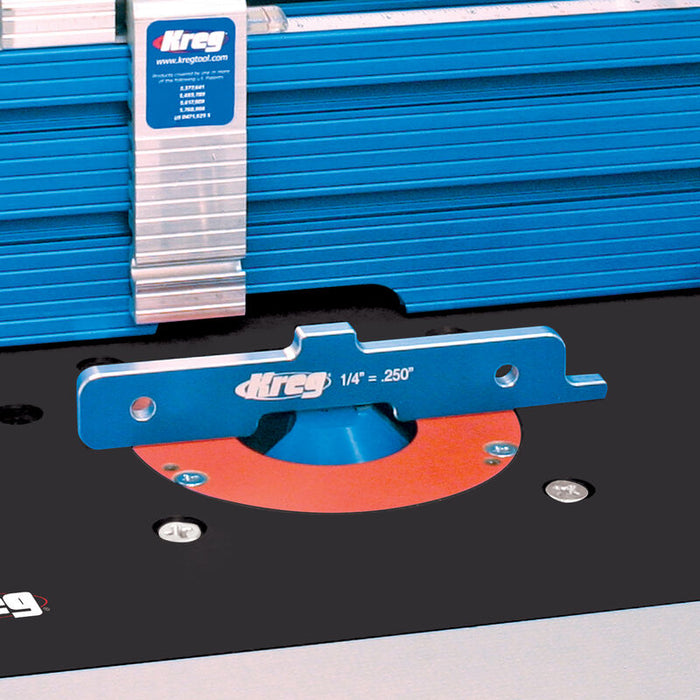

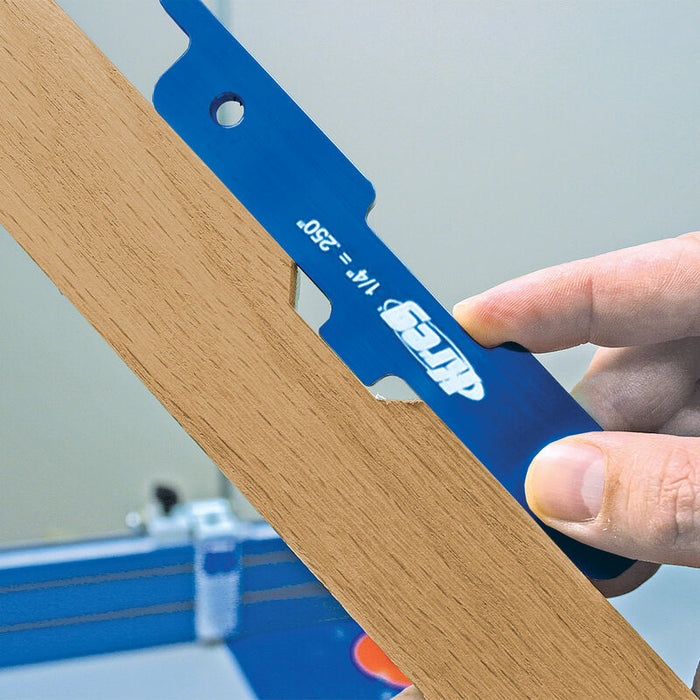

• 1x 1/4" (6mm) precision setup bar
• 1x Adjustable workpiece clamp
• Owner's Manual
