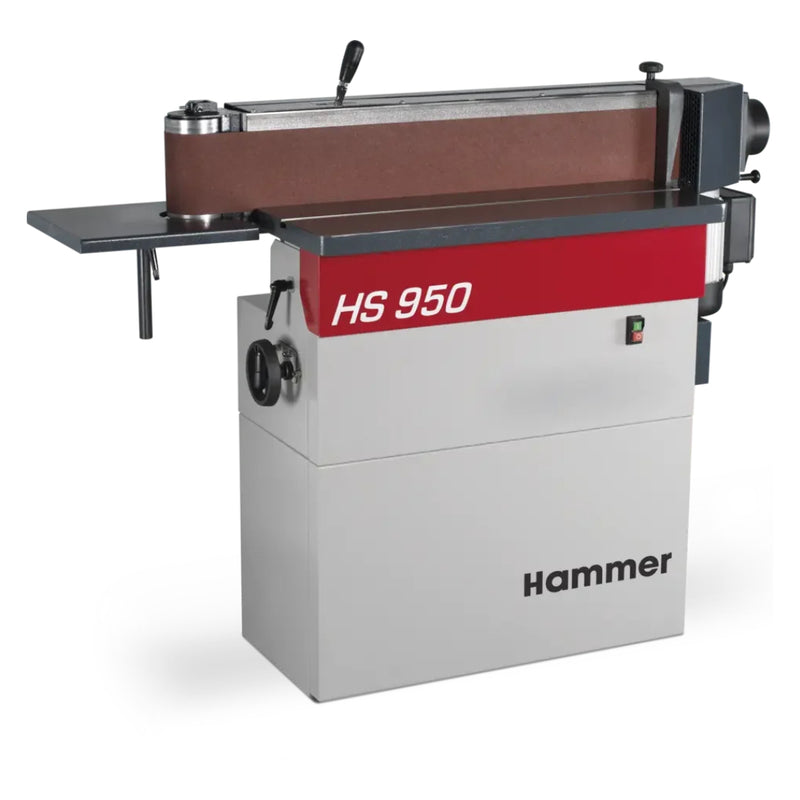

Hammer | HS950 Edge Sander

The Hammer HS 950 is a versatile oscillating edge sander designed for accurate and efficient sanding of timber edges, surfaces and curved workpieces. Its open design makes it particularly suitable for sanding long and oversized components, while the continuously tilting sanding unit provides flexibility for different sanding angles.

The switchable sanding belt oscillation makes better use of the full belt surface, helping to produce consistent sanding results while extending belt life. A solid cast-iron work table can be adjusted through 150 mm, and the additional side table allows for cylindrical and radius sanding.

Key Specifications

Specifications are based primarily on Felder/Hammer's current technical information; the available electrical configuration should be confirmed for the specific machine being supplied.

Main Features

• Switchable sanding belt oscillation for improved belt utilisation and more even wear.
• Tilting sanding unit adjustable from 0° to 90° for angled sanding applications.
• Height-adjustable cast-iron table with 150 mm adjustment range.
• 950 mm sanding support for handling larger workpieces.
• Open machine design for sanding long and oversized workpieces.
• Additional table for radius and cylindrical sanding.
• 120 mm dust extraction connection.
• Solid 165 kg construction for stability during operation.
