Einhell | Sliding Mitre Saw TC-SM 2531/2 U

by Einhell
SKU 4300805
Save 6% Save 6%
Original price R 3,799.00
Original price R 3,799.00 - Original price R 3,799.00
Original price R 3,799.00
Current price R 3,589.00
R 3,589.00 - R 3,589.00
Current price R 3,589.00

Einhell Germany AG

A centre for ideas, quality and innovation

The Einhell (pull-cut/cross-cut) mitre saw TC-SM 2531/2 U is a high-quality tool for ambitious DIY enthusiasts. It enables the processing of wood, coated panels and plastics. The cross-cut saw turntable made of high-quality die-cast aluminum has a precise angle adjustment that can be locked in different positions with one touch. With its continuously tilting saw head to the left, the saw allows the attachment of mitres and chamfers at any desired angle up to 45°. The double-supported pulling function allows the cutting of particularly wide workpieces.

A robust clamping device is provided for the secure fixing of the workpiece. Thanks to cutting depth adjustment, even demanding work can be carried out effortlessly. The sturdy saw blade with a diameter of 254mm saws powerfully and cleanly. It can be easily changed by means of a spindle lock. The dust collection sack ensures cleanliness at the workplace. Thanks to the underframe, a relaxed posture is ensured. A transport lock is provided for easy, safe transport.

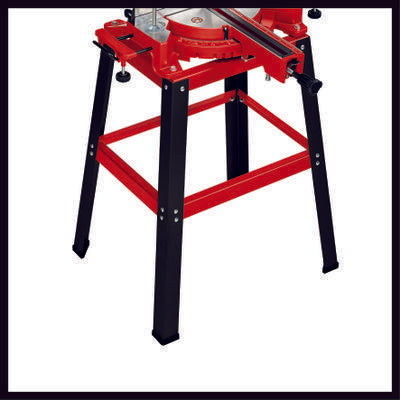

  • Underframe for stable standing and pleasant working height (84cm)

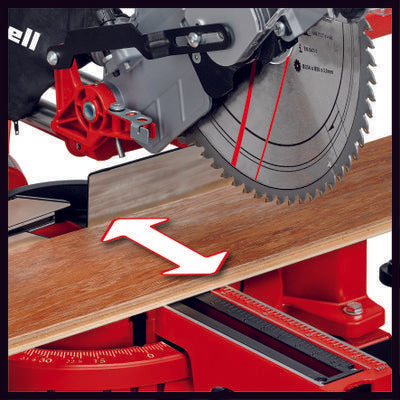

  • Integrated pull function for wide workpieces up to 310mm

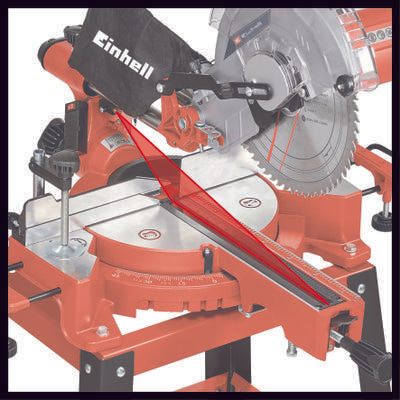

  • The integrated laser enables fast, precise cuts

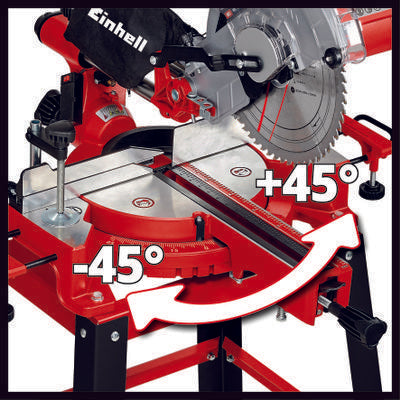

  • Rotary table with precise angle adjustment for oblique cuts

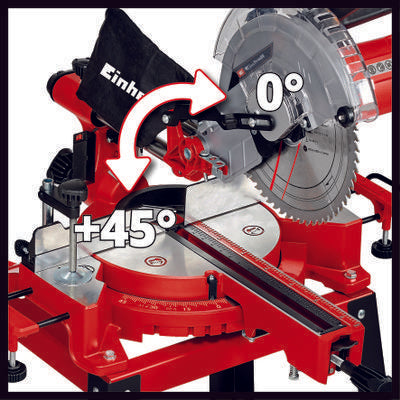

  • Tilting saw head to the left for mitre cuts
  • All settings are clearly visible from the working position
  • Supports left and right for machining long workpieces
  • Spindle lock for easy blade change

Specifications

Cutting depth 45° x 45° 40mm
Cutting depth 90° x 90° 70mm
Cutting width 45° x 45° 210mm
Cutting width 90° x 90° 230mm
Idle speed max. 4800rpm
Max. swivel range (saw head)
Max. swivel range (saw table) 45°
Min. swivel range (saw head) 45°
Min. swivel range (saw table) 45°
Number of saw blade 1 teeth 48pcs
Number of saw blade 2 teeth 48pcs
Power 1900W
Product weight 17.76kg
Saw blade 1 diameter 254mm
Saw blade 2 type HW/TCT
Saw blade holder diameter 30mm
