With the Einhell TC-SM 216 mitre saw, the ambitious DIY enthusiast is best equipped for sawing and chopping tasks that occur in the home, workshop and garage.

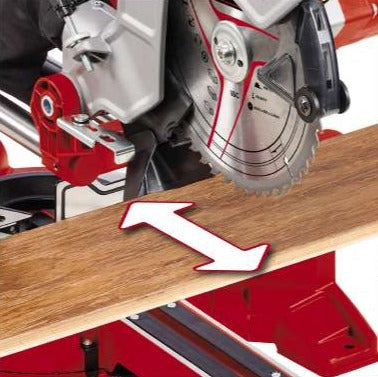

With 1,600W of power, the saw blade (216mm diameter x 30mm arbor) has plenty of power to cut through 65mm thick material. This sturdy saw has a smooth sliding function for wide workpieces.

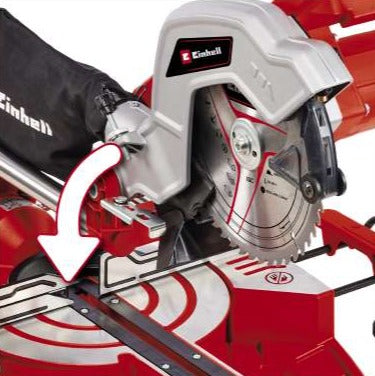

The turntable has a precise angle adjustment facility to make it easier to achieve good angle cuts. For the most common angles on do-it-yourself jobs, locking positions are provided on the turntable for adjusting the angle quickly and reliably. There are easy-to-read scales for the angles and widths. The saw head can also be tilted to the left for mitre cuts.

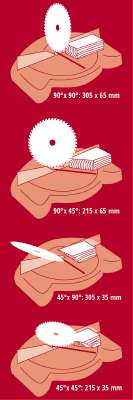

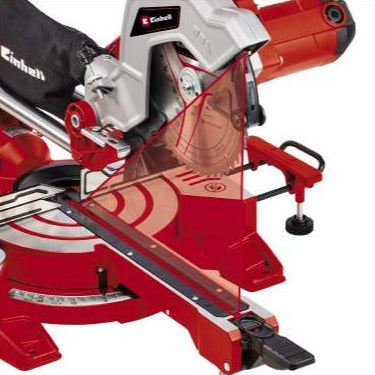

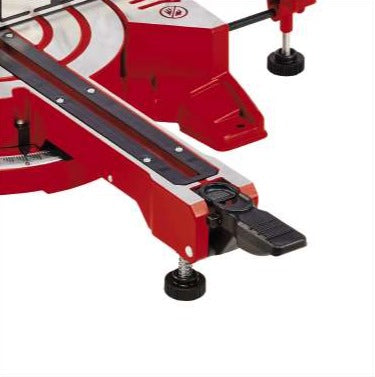

The Einhell TC-SM 216 can cut boards of of up to 305mm with a 90° setting and up to 210mm at 45°. The integrated cutting line laser is an enormous help when working. Supports are provided for longer workpieces on the left and right, and there is a practical clamping device for securing the workpieces.

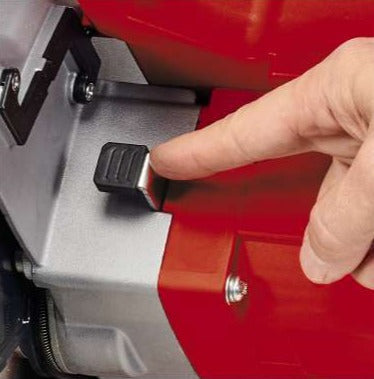

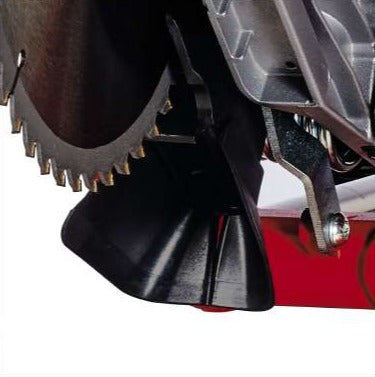

The high-grade carbide saw blade delivers perfect cuts every time. To make it easier to change the saw blade there is an integrated spindle lock. For more effective removal of the sawdust, there is a dust funnel behind the saw blade. The extractor connection which is provided has a diameter of 36mm. Alternatively, the supplied dust bag can be used.
|Cutting depth 45° x 45°||35mm|
|Cutting depth 90° x 90°||0mm|
|Cutting width 45° x 45°||215mm|
|Cutting width 90° x 90°||305mm|
|Idle speed max.||5200rpm|
|Number of saw blade 1 teeth||48 pcs|
|Saw blade 1 diameter||216mm|
|Saw blade 1 type||HM|
|Saw blade holder diameter||30mm|
|Suction connection diameter||36mm|
