Einhell | Electric Hoist TC-EH 600 9m Lift Height 600kg (Online Only) - BPM Toolcraft

Einhell | Electric Hoist TC-EH 600 9m Lift Height 600kg

by Einhell
SKU 2255150
Save 5% Save 5%
R 3,109.00
R 3,109.00 - R 3,109.00
R 3,109.00
R 2,939.00
R 2,939.00 - R 2,939.00
R 2,939.00

Product Description

Einhell Germany AG
A centre for ideas, quality and innovation

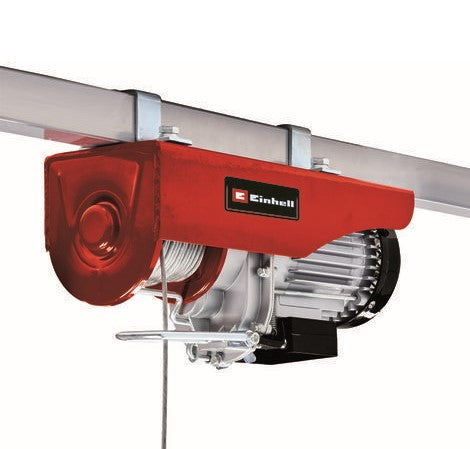

The Einhell TC-EH 600 cable winch is a powerful assistant for lifting and transporting heavy loads in the hobby workshop or garage or when performing home construction work. For Einhell the priority here is safety and functionality: the cable winch has an extra-long 18 meter twist-free wire cable (diameter of 4,5 millimeters), so that the maximum lifting height without a guide roller is 18 meters and loads up to 300 kilograms can be moved - with a speed of eight meters per minute.

With the help of the guide roller the load capacity increases to 600 kilograms, the lifting height is nine meters and the lifting speed is four meters per minute. The guide roller with load hook therefore doubles the maximum load weight. For extra safety while working there is an operator switch with emergency stop function and a safety catch on the load hook. In addition, an automatic brake secures the load in every position.

The cable winch is also equipped with an automatic limit cut-out, which prevents the motor overheating at the same time. The motor with thermostatic switch contributes to a long service life and, with its power rating of 1,050W, provides powerful and dynamic service. For easy mounting the equipment comes complete with two double clamps, so the user has no problem here either.

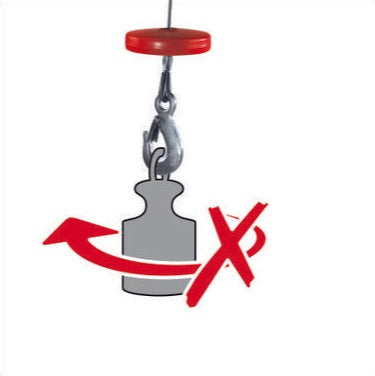

  • Extra-long, over 18m twist-free wire cable (Ø 4,5mm)
  • The guide roller with load hook doubles the maximum load weight

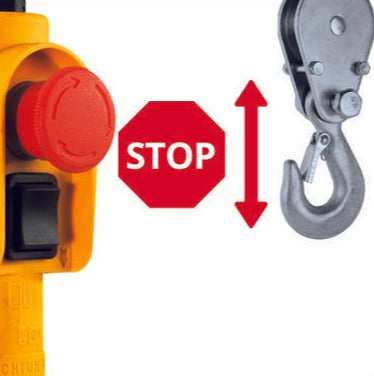

  • Operator switch with emergency stop function for extra safety

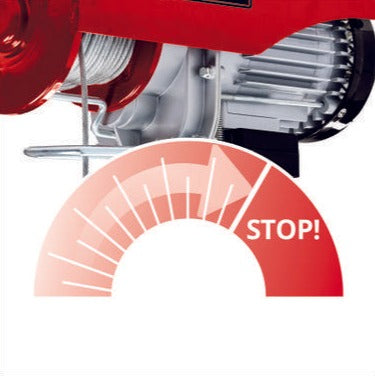

  • The motor with thermo switch contributes to a long service life

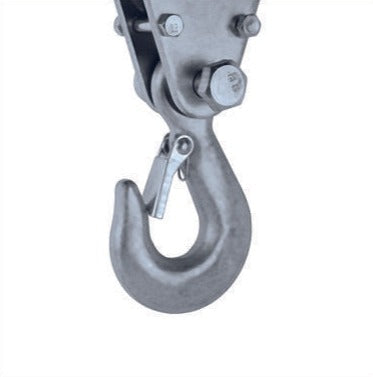

  • The safety catch on the hook ensures the load is lifted safely
  • An automatic brake secures the load in every position

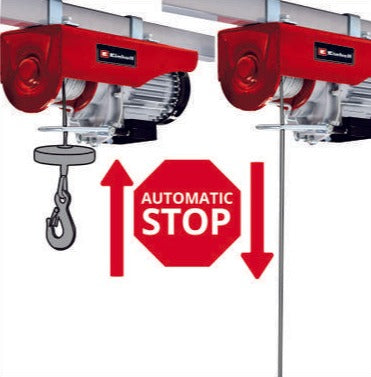

  • The equipment is fitted with an automatic limit cut-out
  • For easy mounting the equipment comes with two double clamps

Specifications

Mains supply 220-240V | 50Hz
Max. power (S3 | S3%) 1050W | 20%
Payload without return pulley 300kg
Payload with return pulley 600kg
Lifting height without return pulley 18m
Lifting height with return pulley 9m
Hoisting speed without return pulley 8m/min
Hoisting speed with return pulley 4m/min
