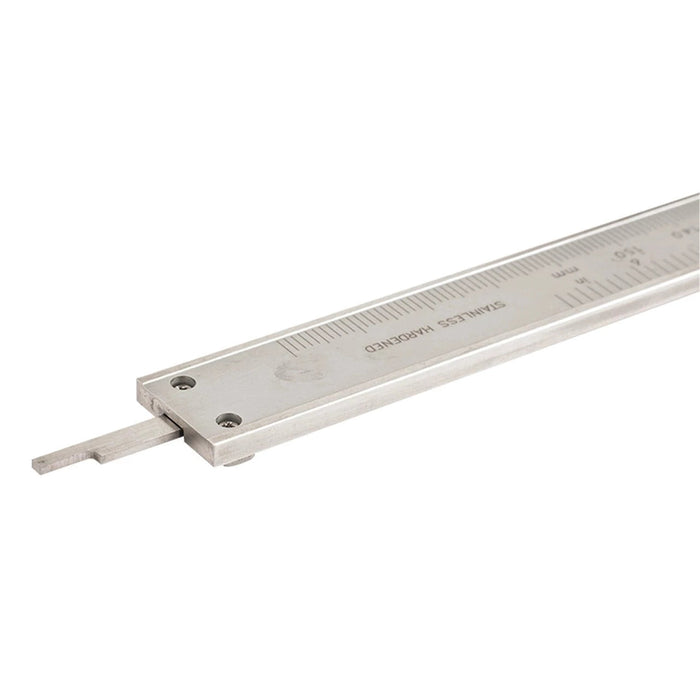

Dasqua | Vernier Calliper 300mm 02 Metric Fine Stainless Steel

300mm 02 Metric Vernier Fine Stainless Steel

Dasqua Standard Performance Engineers Vernier Calipers With Fine Adjustment. Stainless Steel Construction And Featuring A Measurable Range From 0~300mm.

About The Performance 1220/1560 Series...

There are two versions of this model with the following feature differences...

• The 1220 Series features an accuracy of 0.05mm / 0.0019685" and a resolution graduation of 0.05mm/1/128"
• The 1560 Series features an accuracy of 0.03mm / 0.0011811" and a resolution graduation of 0.02mm/0.001"

The 1220/1560 Series Monoblock Engineers Vernier Caliper is a standard precision engineers measuring device for heavy duty industrial use with reliable fine adjustment for confident readings. These Calipers are for professional heavy use and are strictly manufactured to DIN862 and accurate and graduated to 0.05mm or 1/128th of an inch. The 1220/1560 Series model features a locking screw for stable readings and fine accurate adjustment. The 1220/1560 Series is available in sizes ranging from 150mm to 300mm.

The main calliper beam is double surface ground to a precision of less that 0.015mm which is approximately 20% better than the majority of available calliper s. This translates into an exceptionally smooth operation. Distinct and crisp laser etched markings are clearly viewable against the satin chromed beam finish.

• Type: Monobloc Vernier Caliper with Fine Adjustment
• Measurement Range: 0~300mm / 0~12.0"
• Resolution: 0.02mm / 0.001"
• Accuracy: ±0.03mm /0.0011811"
• A - Overall Closed Length (mm): 410
• B - Max Length Inner Jaw Reach B (mm): 28
• C - Max. Length Inner Jaw Reach C (mm): 22
• Specification Standard: DIN862
• Intended Use: Heavy-Use Industrial Performance
• Dasqua Series:1560
• D- Ruler Width (mm): 20
• E- Max Length Outer Jaw Reach E (mm): 64
