SKU 0601061501
Bosch Professional | Laser Rotation Set GRL 300 HV
by Bosch
We accept
The professional blue power tools and accessories from Bosch are developed for professionals. Bosch creates new innovations in power tools and accessories by working intensively with professionals who use power tools as part of their everyday work.

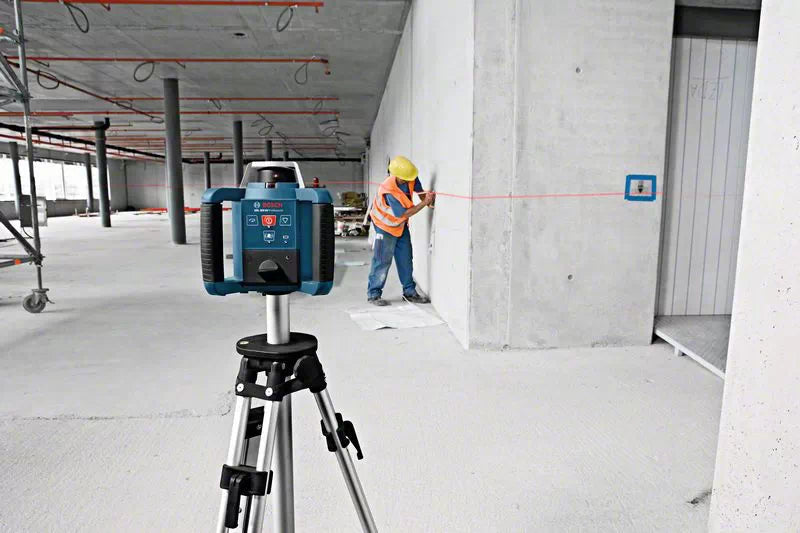

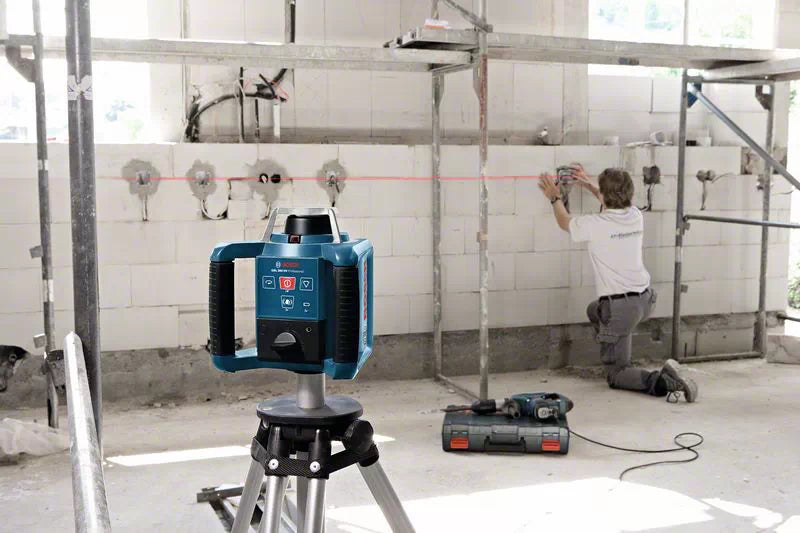

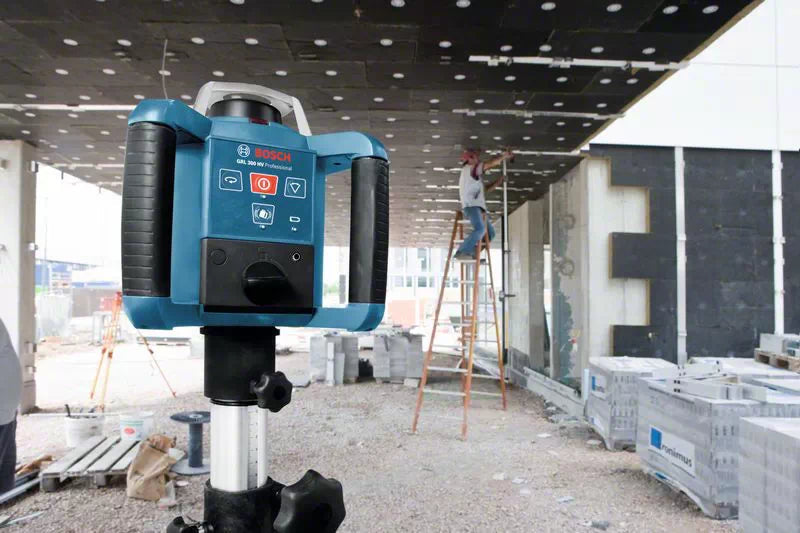

GRL 300 HV Rotation Laser Set - Easy handling with horizontal and vertical self-levelling
- Easy to operate thanks to one button per function, and self-explanatory display
- Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
- The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks and vibrations
Included
- Battery compartment (spare part number 1 608 M00 05D)
- Carrying case
- Charger set with adapter (spare part number 1 600 A00 1W3)
- Holder also available separately as an accessory (spare part number 1 608 M00 70F)
- Laser Receiver LR 1 Professional 0 601 015 400
- Laser target (red) (spare part number 1 608 M00 05C)
- Laser viewing glasses (red) (spare part number 1 608 M00 05B)
- Remote control RC1 Professional 0 601 069 900
- Universal mount WM 4 Professional 0 601 092 400
- 1 x NiMH battery (spare part number 1 608 M00 05G)
- 1 x 9V block battery (6LR61)
- 2 x 1,5V LR20 battery (D)
- 1 x 1,5V LR6 battery (AA)
Specifications
| Working range with receiver, value | 300m |
| Slope function | no |
| Accuracy | ± 3,0mm at 30m* (*plus use-dependent deviation) |
| Working range with receiver | up to 300m (Diameter) |
| Laser diode | 635nm, < 5mW |
| Operating temperature | -10 – 50°C |
| Storage temperature | -20 – 70°C |
| Laser class | 3R |
| Working range without receiver | up to 60m (Diameter) |
| Self-levelling range | ± 5° (8%) |
| Levelling time | 15 s |
| Dust and splash protection | IP 54 |
| Rotation speed | 150, 300, 600rpm |
| Power supply | 2 x 1,5V LR20 (D) |
| Tripod thread | 5/8" |
| Colour of laser line | red |
