AirCraft | Filter/Regulator/Lubricator 1/4" BSP with Auto Drain (HEC3010-02D)

AirCraft | Filter/Regulator/Lubricator 1/4" BSP with Auto Drain (HEC3010-02D)

by AirCraft
SKU SG FRL180-2
R 2,098.18
R 2,098.18 - R 2,098.18
R 2,098.18
R 1,659.00
R 1,659.00 - R 1,659.00
R 1,659.00

Product Description

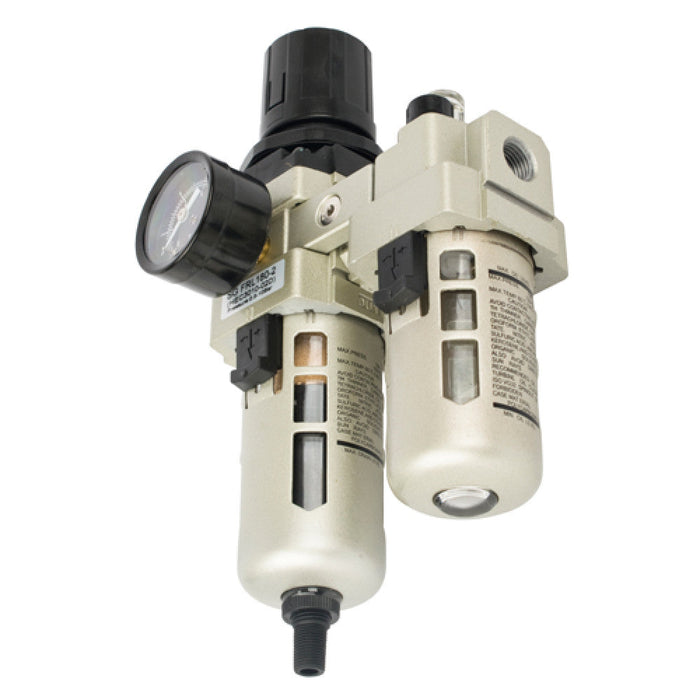

1/4" BSP Filter/Regulator/Lubricator

  • In-line water traps/filters are necessary to separate water and oil from the airflow during the air compression process
  • A regulator is combined with the filter to increase or decrease the pressure
  • A pressure gauge indicates the set pressure
  • The lubricator atomizes and mixes pneumatic oil with the compressed air to lubricate air tools
  • Visible arrows are on the outer body of the casing that indicate the direction of installation to correspond with the direction of airflow

Drain: Zero pressure drain

  • A push-in fitting is located on the drain to allow fluid to drain to a central point via PU tubing (not included)
  • Do not use a lubricator in line when using a spray gun

Features

  • Easy bowl removal and filter element replacement
  • Small design and easy installation

Specifications

Description Specification
Material Polycarbonate
Max working temperature 60°C
Rated airflow 1500l/min
Particulate filter 25 micron
Thread 1/4" BSP
Pressure adjusting range 1.5 - 8.5 Bar
