SawStop | Dust Collection Guard Floating Overarm Assy

• Blade Guard Dimensions 3 1/2” x 18 1/2”
• "Distance between blade and end of extension table 35 3/4” to 68”
• "Inner Dust Tube Diameter 3” Outer Dust Tube Diameter 4”
• "Outer Dust Tube height above table 13 1/2” Outer Dust Tube height above floor 33 1/2” to 50”

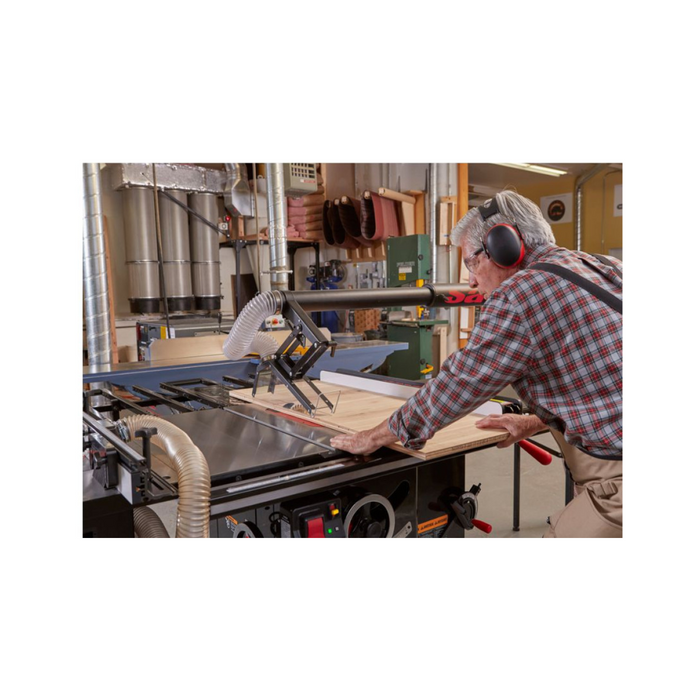

• Above Table Dust Collection-The large 4" tube allows for high air volume and above-table dust collection keeping harmful dust out of your shop
• A dedicated 4" extraction port increases dust collection while only requiring a minimum of 400 CFM

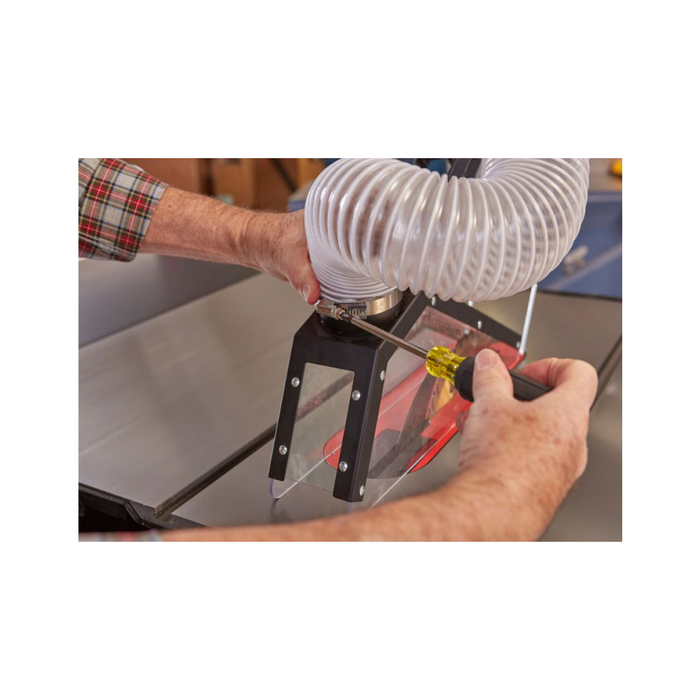

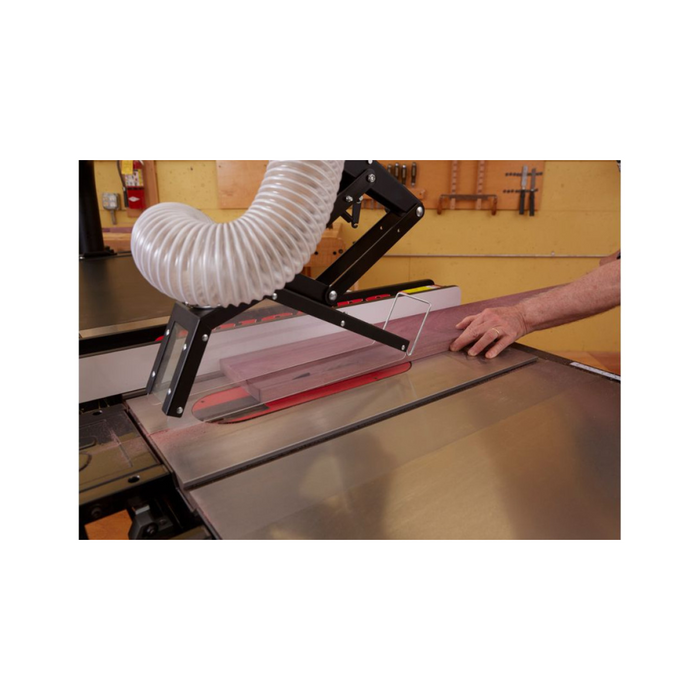

• Adjustable Blade Guard-The blade guard provides the operator protection while making standard and non-through cuts, and the transparent cover increases visibility when making narrow cuts

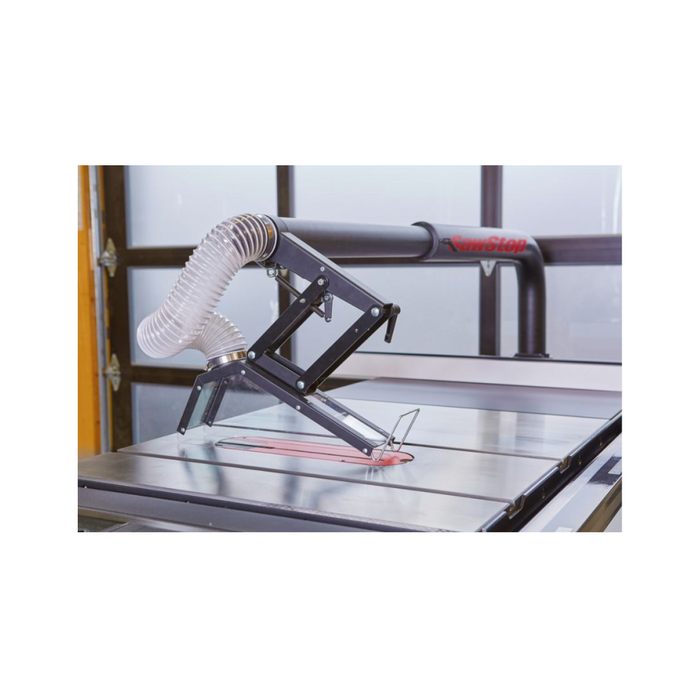

• The guard lifts easily for quick blade access and locks in place using the lock handle when not in use

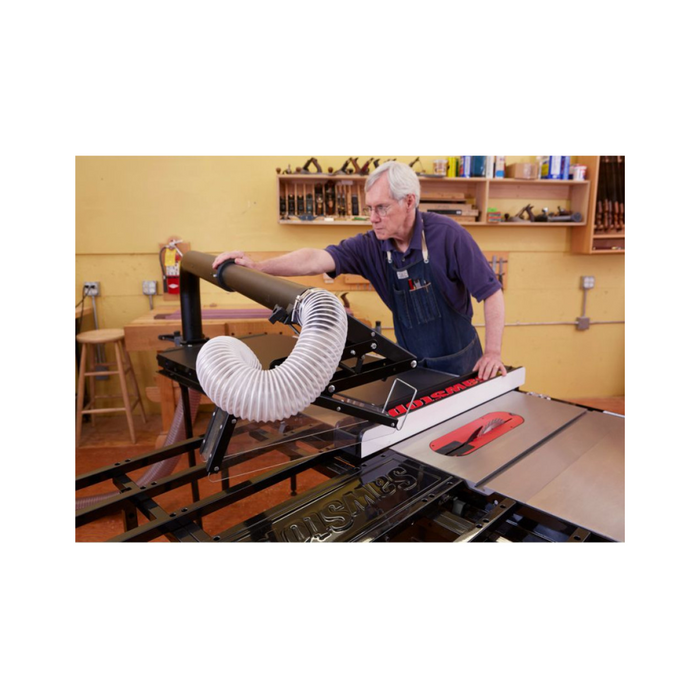

• Versatility-The dust collection tube can be easily adjusted to accommodate different SawStop cast iron saw configurations

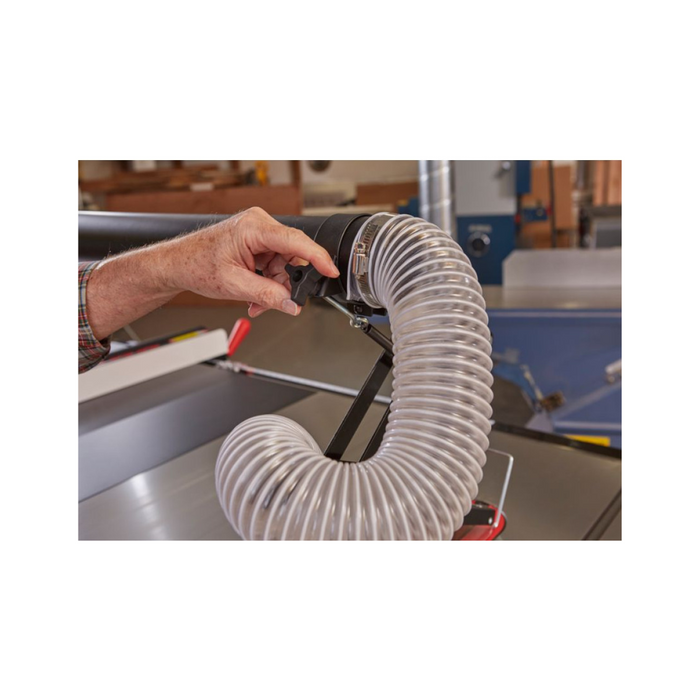

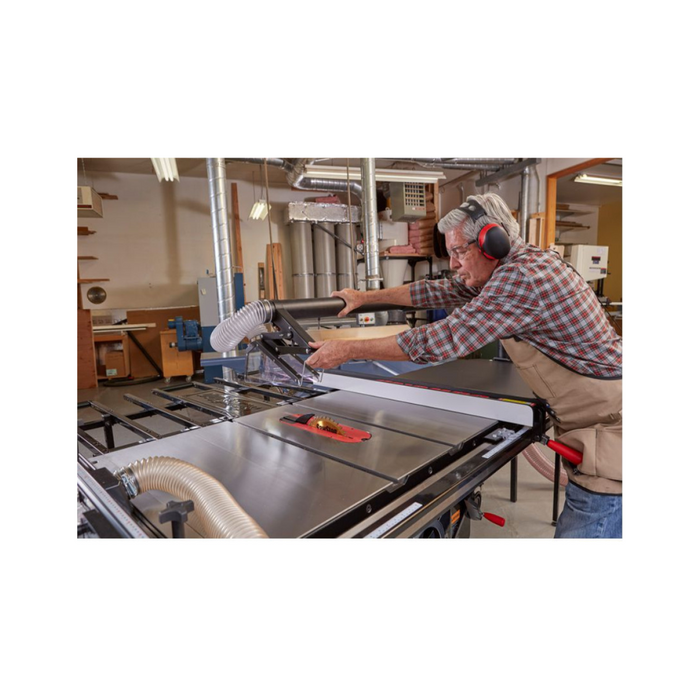

• It can be moved out of position by releasing the dust tube lock knob, or removed and stored when not in use
• Rugged Durability-The Floating Dust Collection is constructed from heavy-duty powder coated aluminium
• The support legs connect underneath the extension table and ensure the rigidity of the large dust tube and blade guard

Included

• extension leg
• dust collection guard mounting bracket
• (2) leg support bracket
• outer dust tube
• inner dust tube
• floating dust collection blade guard
• owner's manual
• hardware pack

Specifications

• Blade Guard Dimensions: 3 1/2” x 18 1/2”
• Distance Between Blade and End of Extension Table: 35 3/4” to 68”
• Inner Dust Tube Diameter: 3”
• Outer Dust Tube Diameter: 4”
• Outer Dust Tube Height Above Table: 13 1/2”
• Outer Dust Tube Height Above Floor: 33 1/2” to 50”
