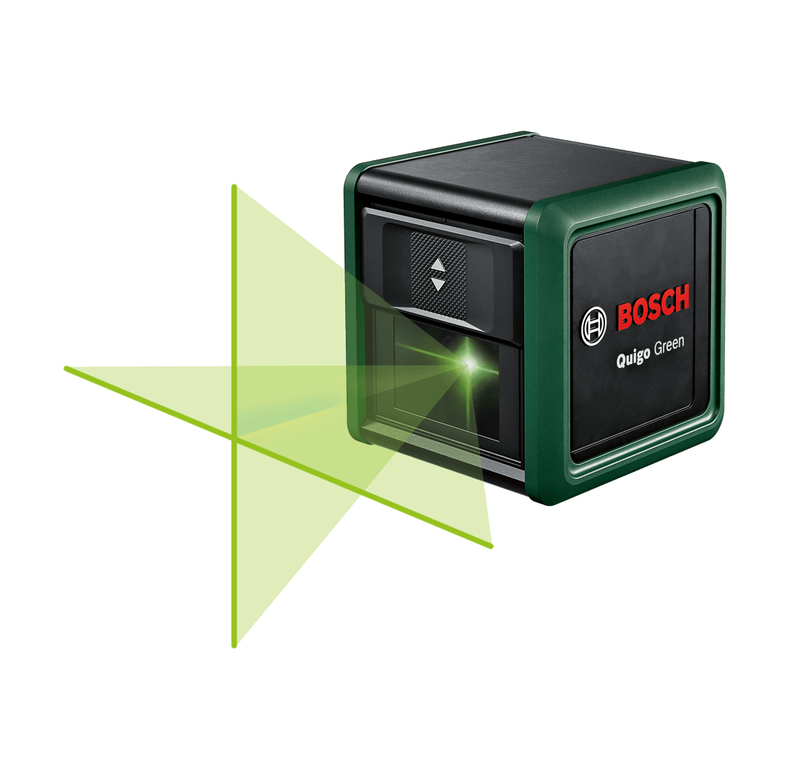

Go green all the way with the new generation of Bosch’s Quigo Green cross line laser, delivering high visibility and easy handling on DIY projects. With its intense, green cross laser lines, the Quigo Green is the perfect alignment solution for working in very bright lighting conditions. It provides an improved accuracy of +/- 0,6mm/m and a working range up to 12m.
Quigo Green uses primarily recycled material in housing, accessories and packaging and has optimised energy consumption. For additional convenience, this versatile cross line laser comes with a universal clamp MM 2 and an adapter plate for easy mounting. Both are also made of recycled plastic. The Quigo Green levels itself within a range of +/-4° to ensure straight positioning of mirrors, shelves, or tiles.
- For Quigo Green, we have changed the majority of the plastic components from native to recycled material
- What is more, we have redesigned the electronics concept for higher energy efficiency, effectively increasing battery life and causing less waste over usage
- We also reevaluated the packaging of our product, optimizing the size for an ideal pallet load, implementing a higher amount of recycled paper and eliminating all single-use plastic in our packaging
Versatile universal clamp MM 2 made from recycled plastic
- Adjust the laser level to the right position with the versatile universal clamp MM 2 that can be attached to objects with a 1 to 6cm diameter
Easy-to-attach adapter plate made of recycled plastic
- The easy-to-handle adapter plate offers more flexible mounting options and even higher precision for fine height adjustments
- It can be attached to the top, bottom, or back of the tool and has a fine height adjustment range of +/-2cm
Up to 4x better visibility thanks to green laser technology
- The green laser diode provides up to four times better visibility than red laser lines and helps extend the working range by up to 12m
Outstanding precision for accurate results
- The high-quality green laser diode provides bright and precise laser lines with a 12m working range and accuracy of +/- 0,6mm/m for perfect results
Straight laser lines even from slightly uneven surfaces
- Self-levelling in a flash – automatically projects a straight laser cross in seconds, even from slightly uneven surfaces, within +/- 4°. Simply push the one-slider up to project the laser
Specifications
- Laser diode: 500 – 540nm
- Laser class: 2
- Self-levelling time, typ.: 6s
- Levelling range: ± 4°
- Opening angle: 85°
- Accuracy**: ± 0,6mm/m
- Tripod thread: 1/4"
- Weight: 0,27kg
- Battery: 2 x 1,5V LR03 (AAA)
- Working range, approx.: 12m
