Product Description

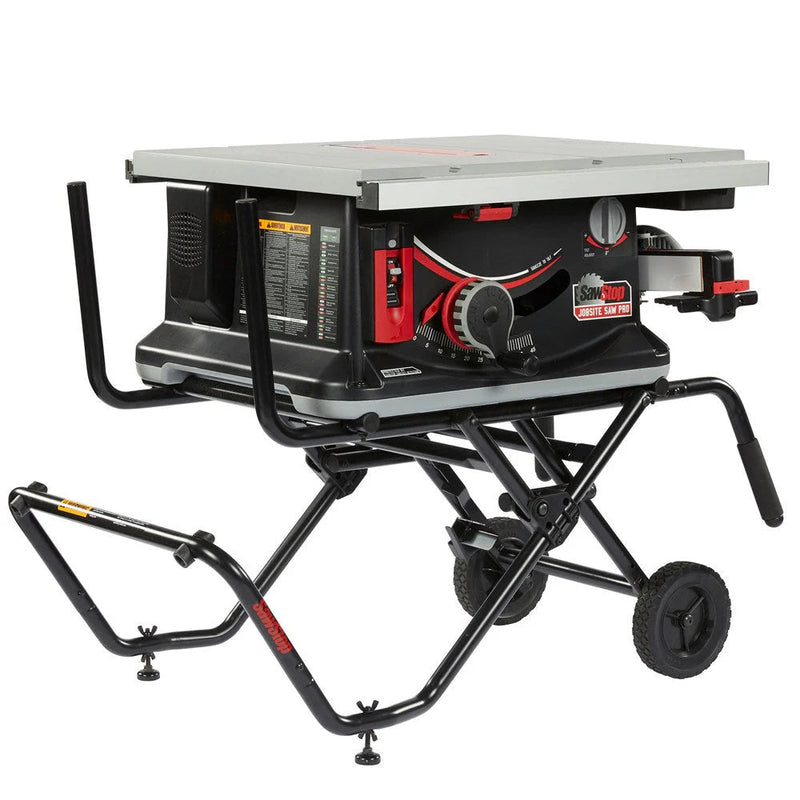

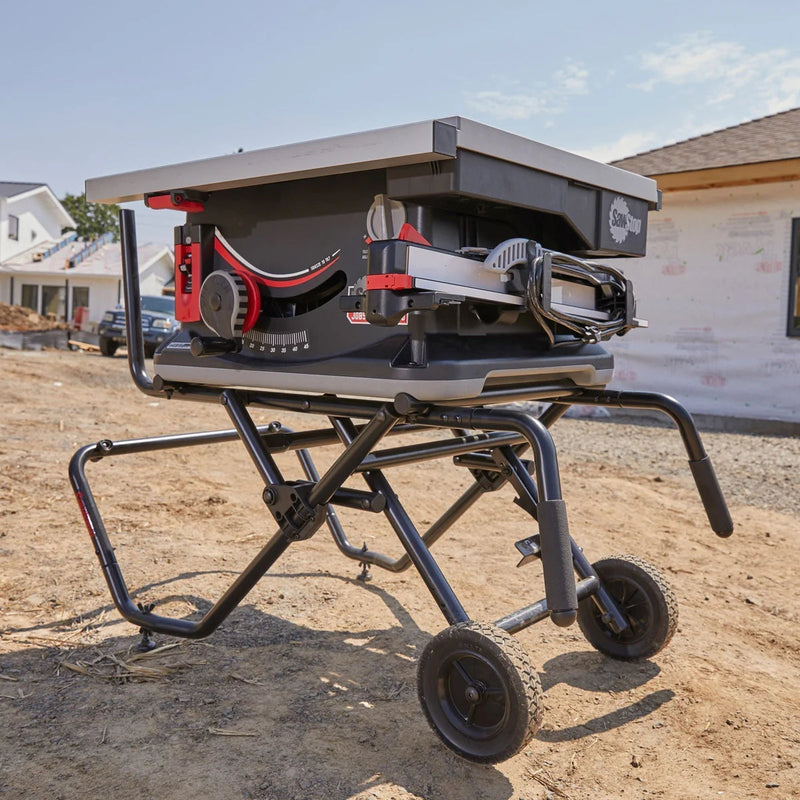

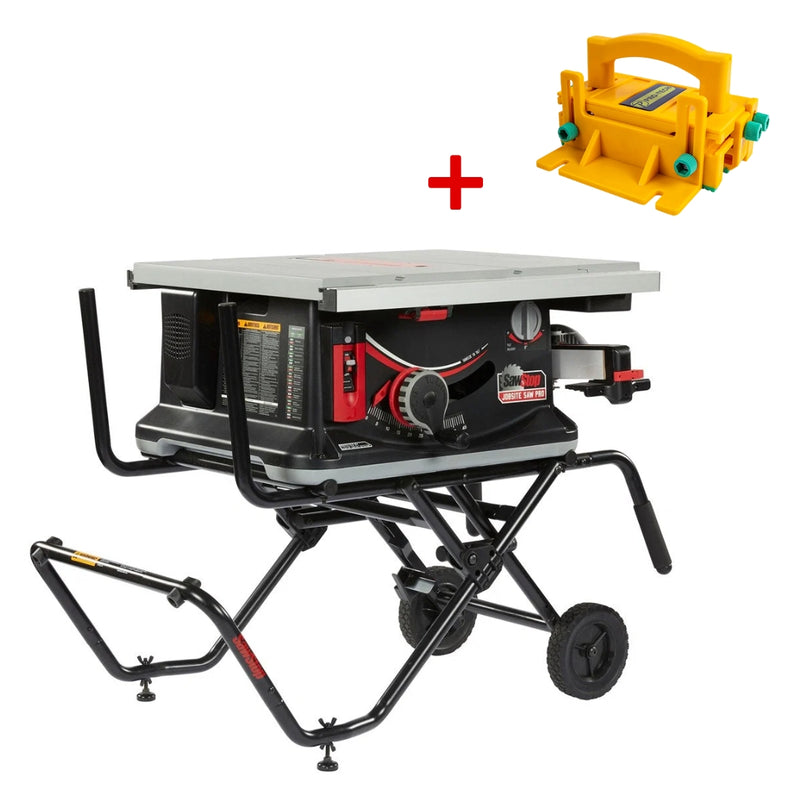

250mm SawStop Jobsite Saw Pro with Mobile Cart

The new & improved SawStop Jobsite Saw Pro unites SawStop safety and pioneering innovation with compact portability. For the first time, the promise of SawStop safety, quality and peace of mind can travel with you wherever you go.

  • One turn elevation
  • QuickTilt
  • Micro Adjust

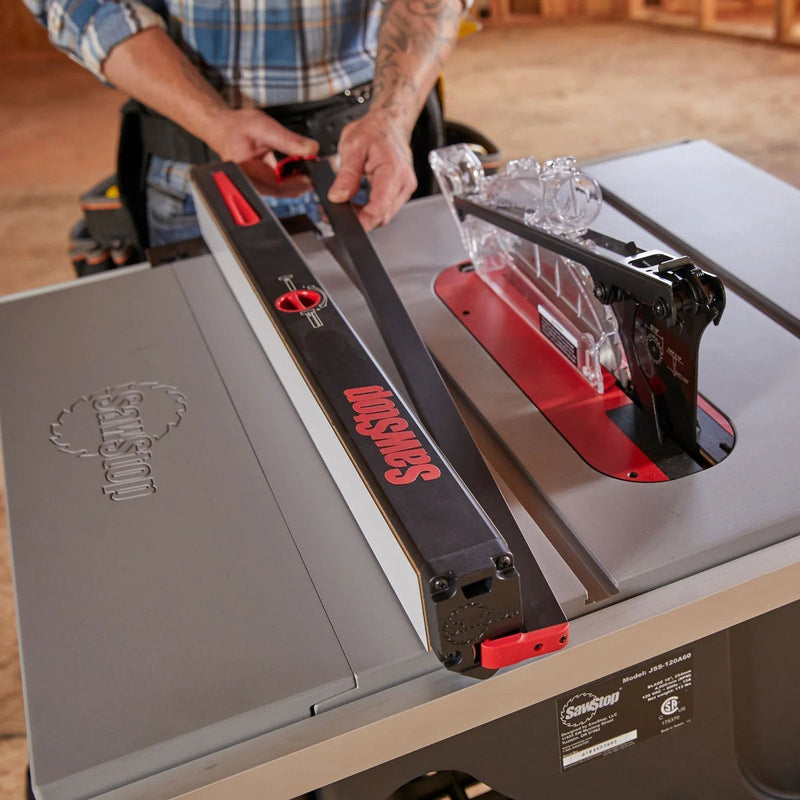

  • T-Style Fence with ErgoLock
  • Fence Holster
  • Low Profile Blade Guard
  • Pedal Release
  • Large Wheels
  • Control Box
  • Tool-Free Zero-Clearance Insert

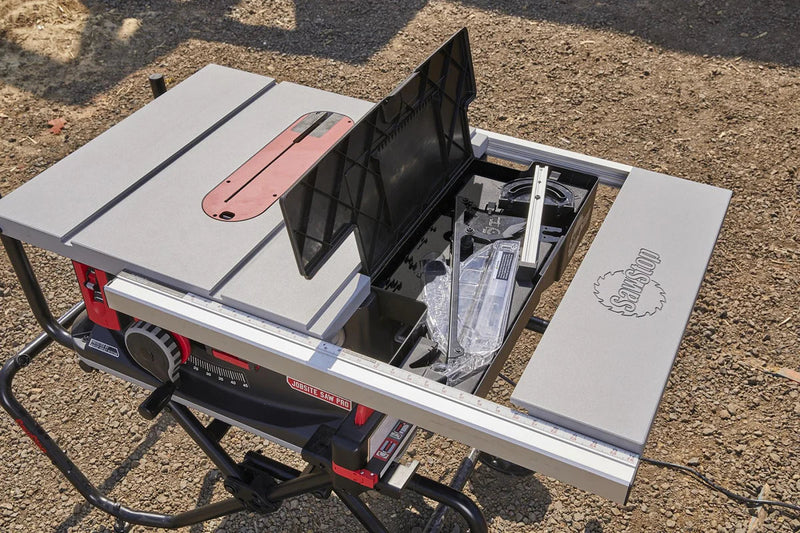

  • Accessory Storage Drawer
  • Extension Clamp

Included

  • Collapsible Rolling Cart x1
  • Miter Gauge x1
  • JSS Micro Blade Guard x1
  • Riving Knife x1
  • Blade Wrenches x2
  • Push Stick x1
  • 10” Blade x1
  • Standard Brake Cartridge x1
  • User’s Guide x1
  • Assembly Instructions Poster x1
  • Hardware Pack x1
  • 3mm Hex Key x1
  • 4mm Hex Key x1
  • 5mm Hex Key x1

Specifications

Motor Configuration
230V AC, 50Hz, Universal
Cord Length: 3m
Sold and Shipped as Full Set Only with Cart :
(no Cartless Option Available)
Motor Continuous HP: 1.5HP
Motor Peak HP: 4HP
Saw Dimensions without Cart (Body only):
806.5mm W x 730mm D x 394mm H
Saw Dimensions with Open Cart(ready to use):
1219mm W x 736.5mm D x 914.5mm H

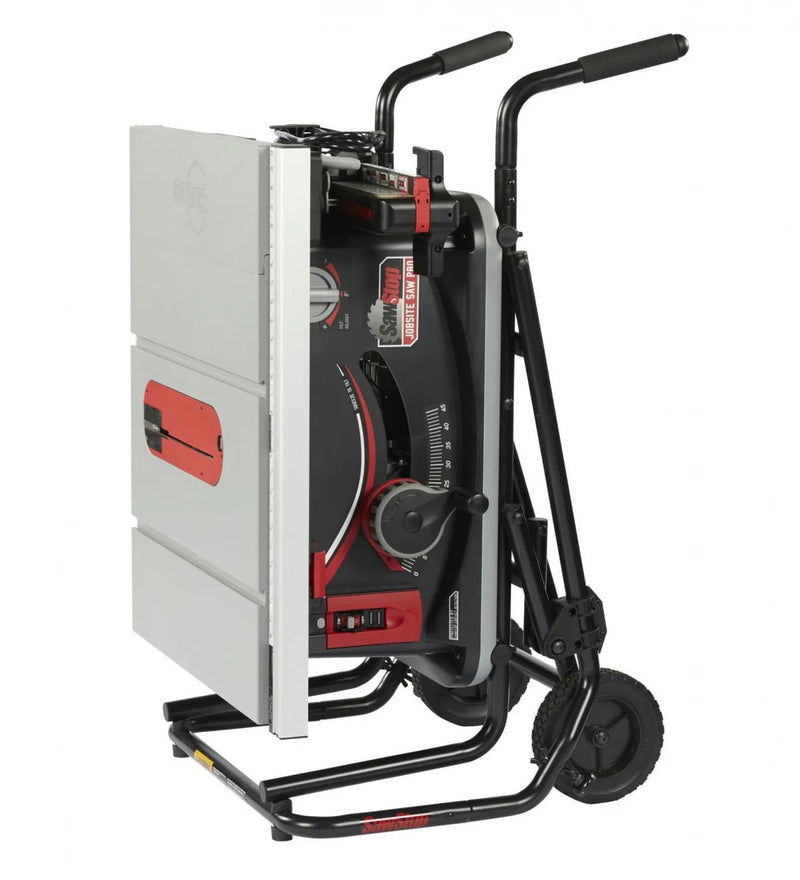

Saw Dimensions with Closed Cart (on End/stored position):
673mm W x 736mm D x 1143mm H
Table Dimensions (Extended):
1101mm x 625mm
Shipping Dimensions:
813mm W x 1092mm D x 660.5mm H
Shipping Weight (with Cart): 62kg
Weight (Saw Only): 38kg
Weight (with Cart): 51kg
Blade Diameter 10" / 254mm
Dado Diameter: 8" / 203mm
Dado Max. Width: 20mm
Bevel Angle Range: -1 to 46
Max. Depth of Cut, Blade at 0º: 79mm
Max. Depth of Cut, Blade at 45º: 54mm
Max. Rip Right of Blade (Extended): 647mm
Max. Rip Left of Blade: 247mm
Blade Tilt: Left
Table in Front of Blade (Max Elev): 200mm
Table Behind Blade (Max Elev): 187.5mm
Miter Slots T-shaped Dimensions:
19.15mm W x 10.5mm D; "T" 24.25mm W x 4mm THK
Table Flatness Measured Diagonally 0.84mm
Dust Collection Port Diameter: 63.5mm
Active Dust Collection Blade Guard:
polycarbonate, extends 25.4mm right of blade
Restart Protection: Yes
No Load RPM: 4200
