Festool | Sliding compound mitre saw KAPEX KS 120 REB-Set-UG

Festool | Sliding compound mitre saw KAPEX KS 120 REB-Set-UG

by Festool
SKU FES575313
R 73,928.56
R 73,928.56 - R 73,928.56
R 73,928.56
R 59,519.00
R 59,519.00 - R 59,519.00
R 59,519.00

Product Description

FESTOOL. Our passion for high-quality power tools has continued for more than 90 years. We share this fascination with our users and fans. Our products make life easier for professional tradespeople – and help them to achieve perfect results faster.

Quality down to the finest detail.

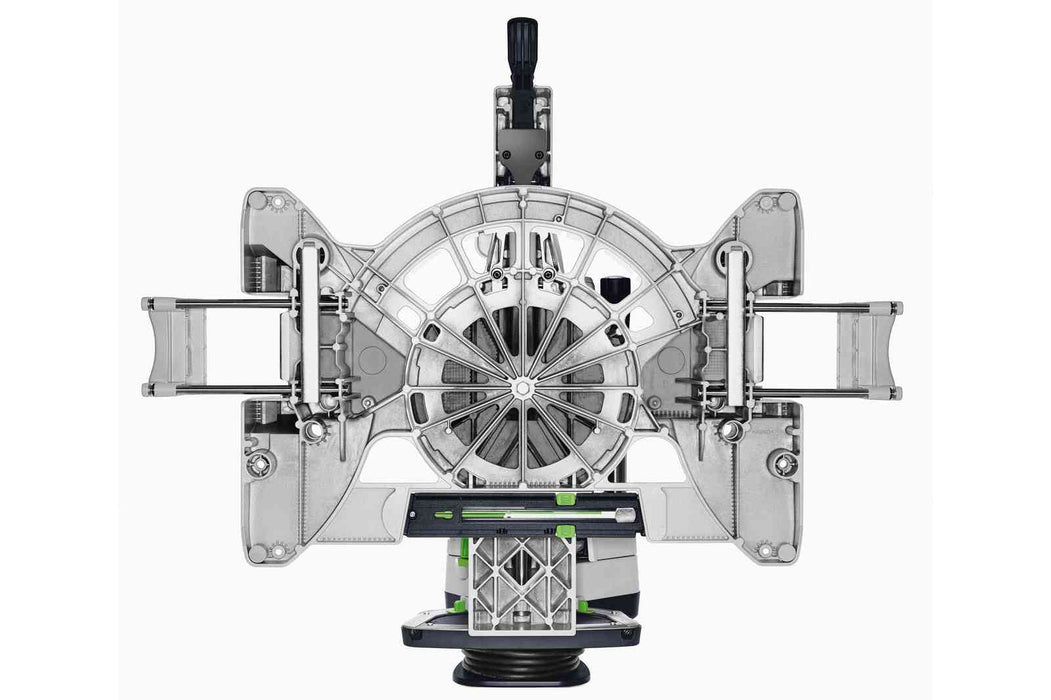

Guides left, guides right. Even where others only pretend to do so. With spherical bushings on both sides to offer a double layer of protection in terms of keeping the carriage precisely on course across extra-large columns. Double-sealed for an extremely long service life, always exact and with zero play.

  • Twin-column guide with two bearings for unique precision

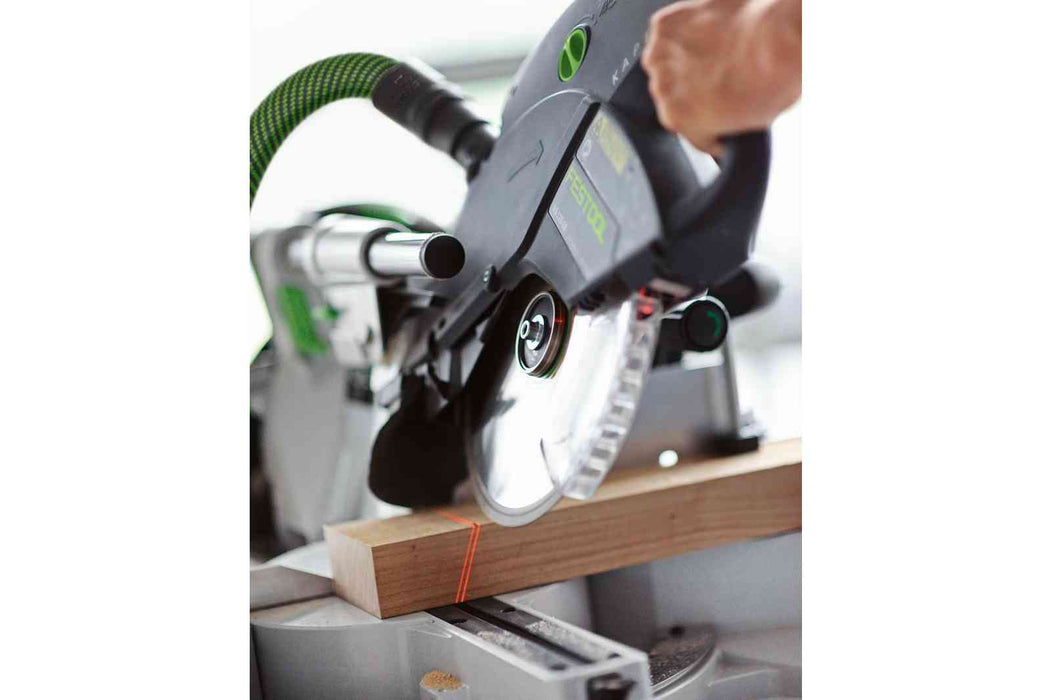

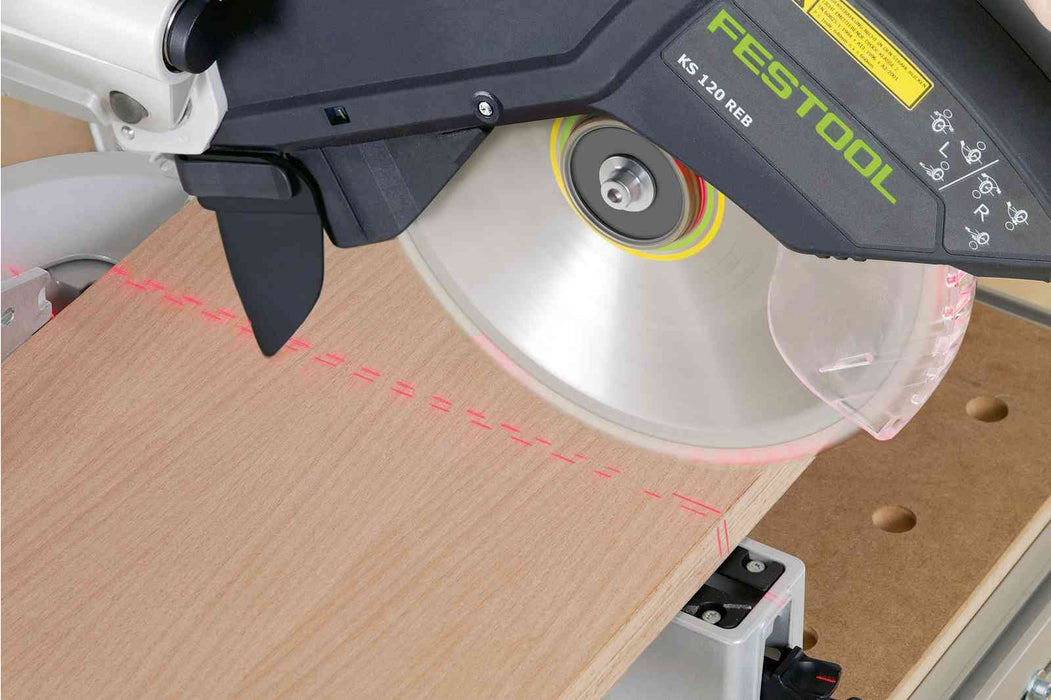

  • Dual-line laser for an accurate indication of the cutting line
  • Fine adjustment of the saw blade angle accurate to the millimetre from the front of the machine

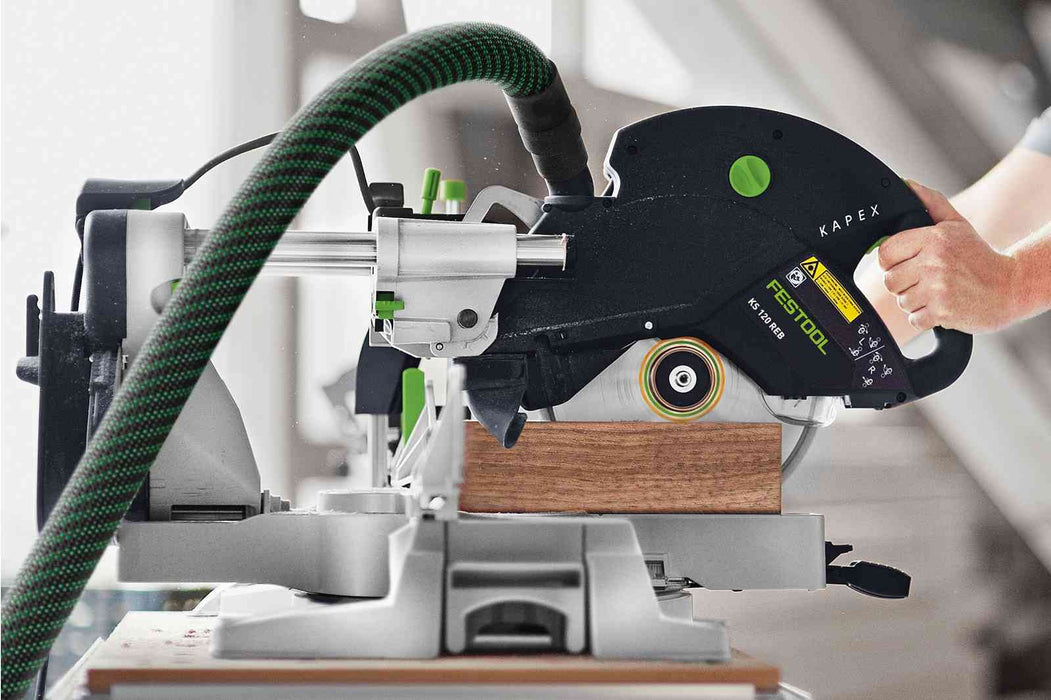

  • Special cutting position for cutting depths up to 120 mm
  • FastFix saw blade changing for adaptation to the working material
  • Twin-column guide for accurate cuts

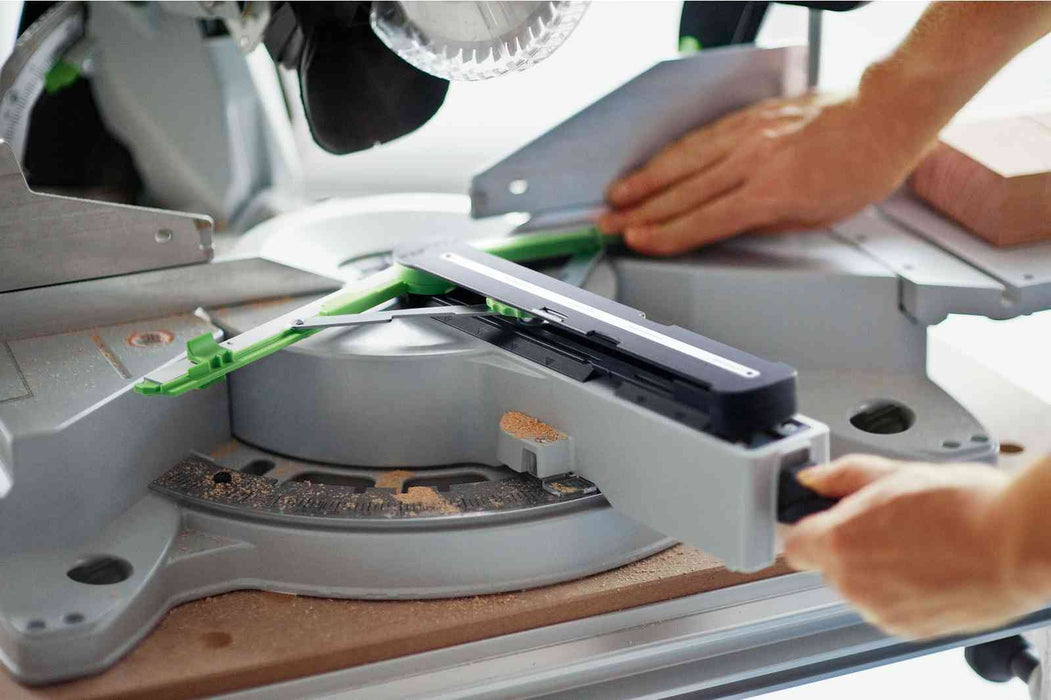

  • Precision angle transfer via bevel and dual-line laser
  • Compact, lightweight design for convenient transportation
  • Safety brake

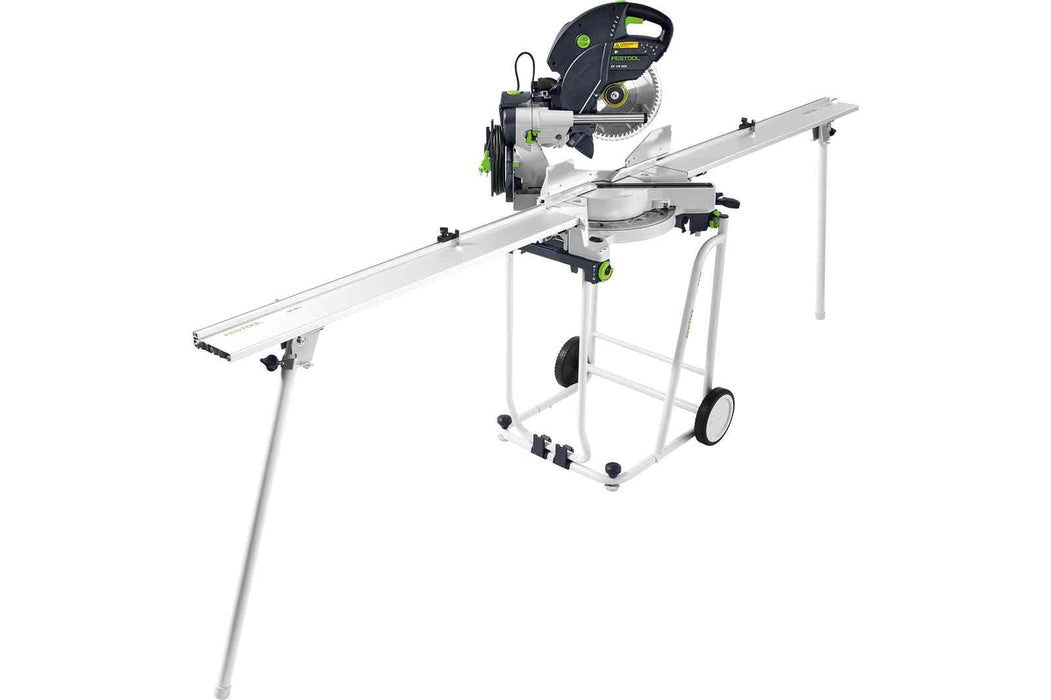

  • (KA-UG-R, KA-UG-L and UG-KAPEX incl. in the contents)

Main applications

  • Trimming skirting boards and cornices up to 120mm in height – no calculations

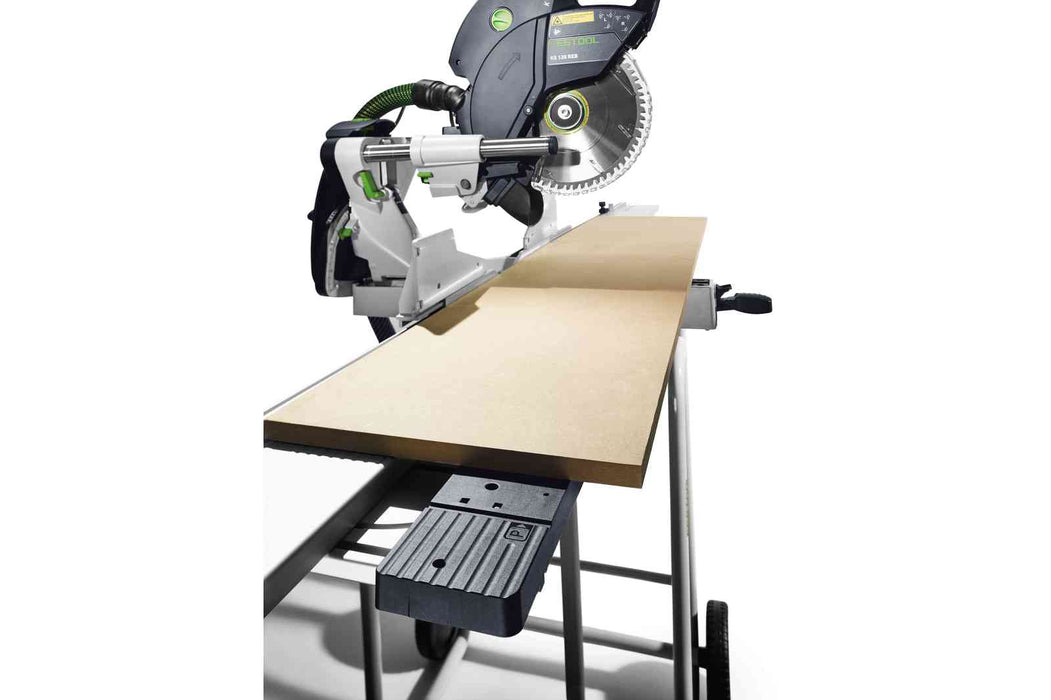

  • Cutting boards and panels up to 305 x 88mm
  • Trimming crown mouldings up to 168mm in their original wall position
  • Trimming square timber and beams up to 88mm thick

Included

  • circular saw blade WOOD UNIVERSAL HW 260 x 2, 5 x 30 W60, Bevel, workpiece clamp, underframe, trimming attachment KA-UG-R/L, adjustable stop, telescopic slide-out scale, fold-out pedestal, hex key, WAF 6, in carton

Specifications

  • Power consumption: 1 600W
  • Idle engine speed: 1 400 - 3 600min⁻¹
  • Saw blade diameter: 260.00mm
  • Cutting depth 90°/90°: 305 x 88mm
  • Cutting depth at 45°/90°: 215 x 88mm
  • Special cutting depth 90°/90°: 60 x 120mm
  • Crown moulding diagonal cut 45°/90°: 168.00mm
  • Inclination angle: 47/47°
  • Mitre angle: 50/60°
  • Dimensions (W x D x H): 713 x 500 x 470mm
  • Cable length: 3.50m
  • Dust extraction connection diameter: 27/36mm
  • Special cut. depth 45°/90° (left): 40 x 120mm
  • Special cutting depth 45°/90° (right): 20 x 120mm
  • Cutting depth 50°/90° (left): 196 x 88mm
  • Cutting depth 60°/90° (right): 152 x 88mm
  • Cutting depth 45°/45° (left): 215 x 5 mm
  • Cutting depth 45°/45° (right): 215 x 35mm
  • Crown moulding diagonal cut at 90°/90°: 168.00mm
  • Work height: 900.00mm
  • Product weight without accessories: 24.30kg
  • Drive type: Mains
