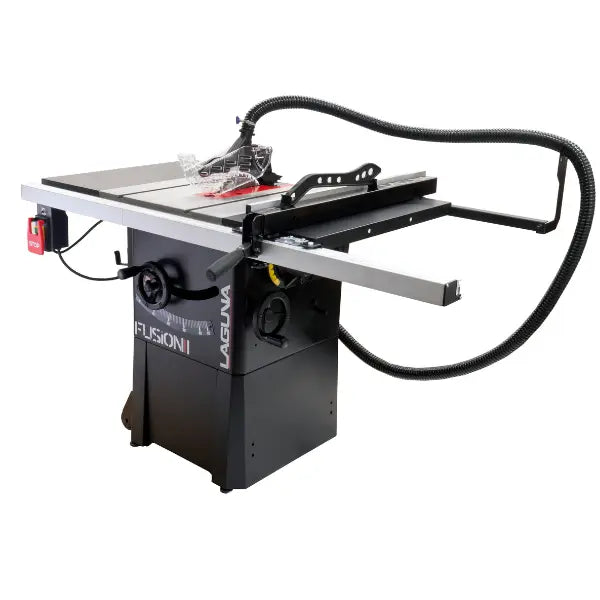

 F1 Fusion 10" Table Saw

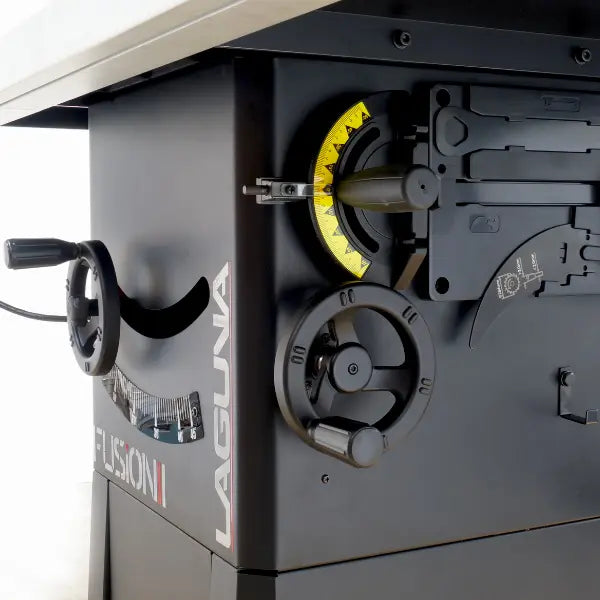

The new Laguna Fusion Table Saws are unlike any saw on the market. Having the same quality demands earned through the original fusion table saw, the new fusion line will not only impress but exceed the expectations you have come to expect from Laguna. With a completely redesigned trunnion and arbor controls that focuses on buttery smooth controls and longevity of the saw, we are sure this is the saw that will give you the perfect rip cut for many many years.

• Motor: 1.5HP 220 Volt
• Maximum Rip Capacity: 30″ (726mm)
• Blade Tilt: Left Tilt
• Cabinet Type: 2 Piece Hybrid
• Maximum Blade Diameter: 10″ (254mm)
• Wheel System: Optional
• Arbor Size: 5/8″ (16mm)
• Dust Collection: 4″ (102mm) Cabinet Port, 1-1/2″ (38mm) Overhead

Additional Features

• Fusion Hi-Lo Dust Collection

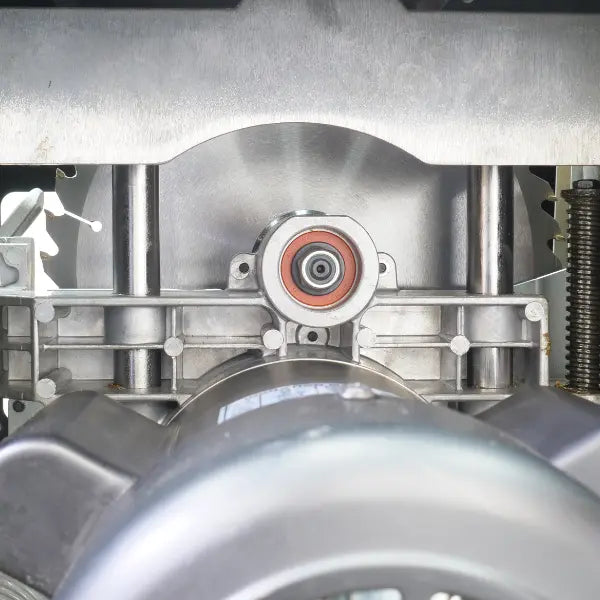

• Fusion Over-Under Trunnions
• Polished Cast Iron Table
• Reset Switch

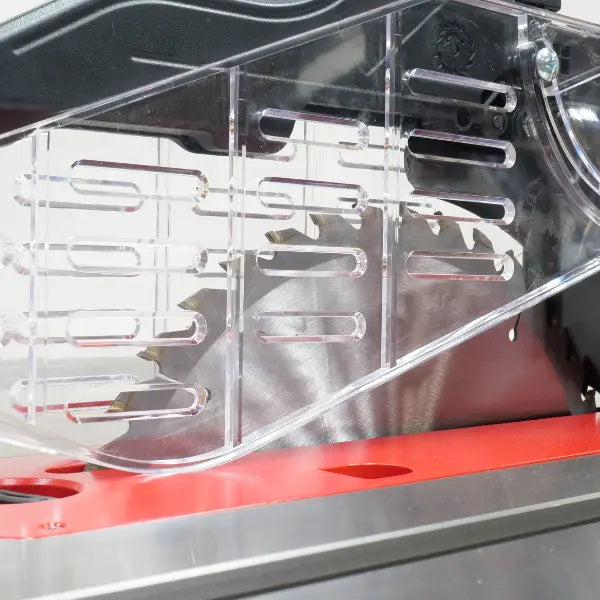

• Quick-Release Blade Guard and Spreader

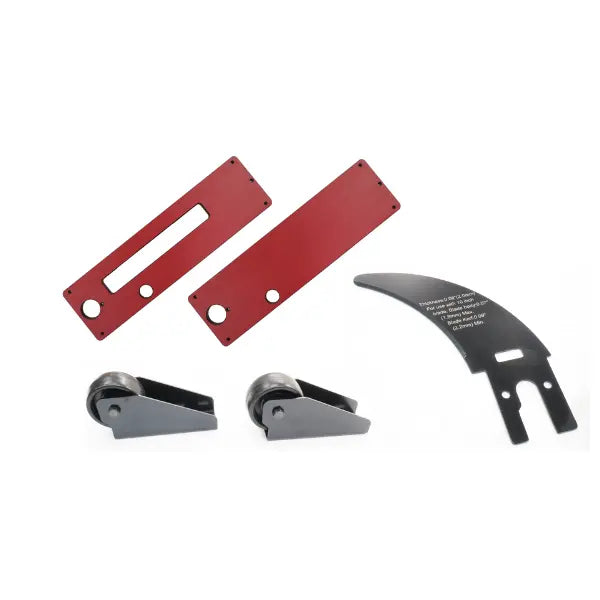

• Riving Knife Included
• Push Stick Included

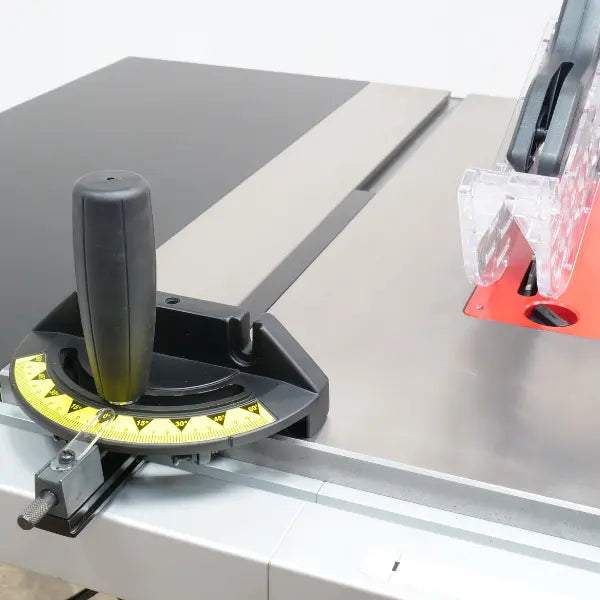

• Miter Gauge Included
• Blade Changing Tool Included
• Integrated Tool Included
• Premium Handles
• Included 10 x 40T Carbide-Tipped Blade
• Premium Arbor and Motor Bearings

Specifications

• Dust Port Size: 4″ (102mm)
• Blade Guard Dust Port Size: 1-½″ in (38mm)
• Table Saw Type: Hybrid Cabinet

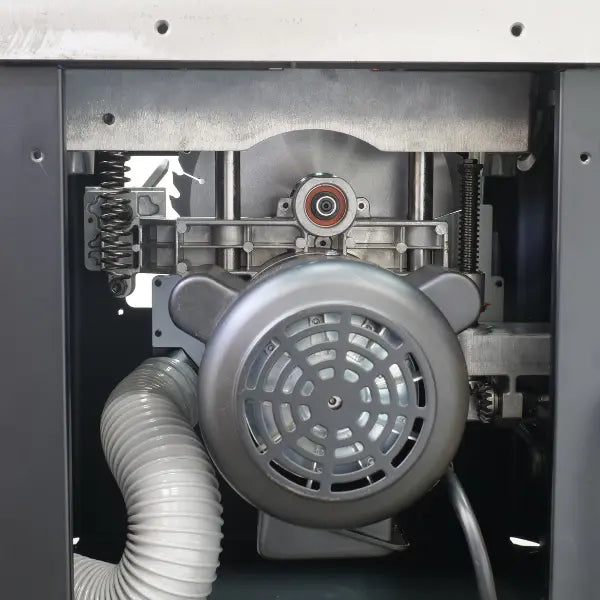

• Motor: 1.5 HP TEFC (Totally Enclosed, Fan-Cooled Motor)
• Maximum Blade Diameter: 10″ (254mm)
• Arbor Size: ⅝″ (16mm)
• Blade Tilt: Left Tilt
• Maximum Rip Capacity: 30″ (762mm)
• Wheel System: Optional
• Arbor Speed: 4000 RPM
• Maximum Width Of Dado: ¾″(19mm)
• Blade Tilt Direction: Left

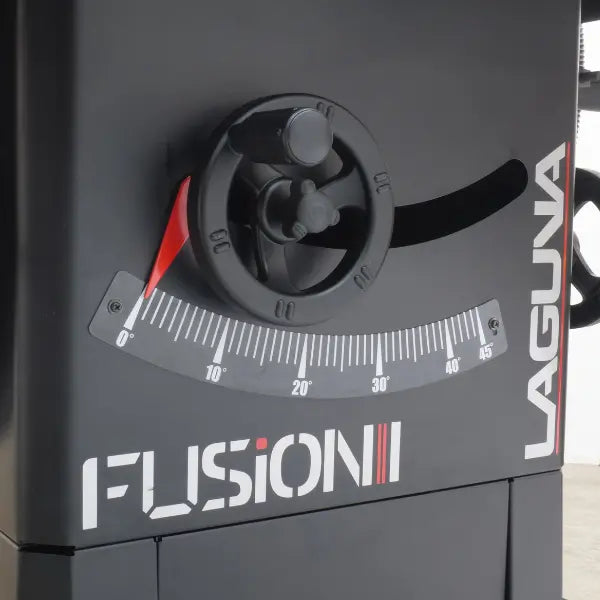

• Max Blade Tilt: 45°
• Maximum Depth Of Cut At 90°: 3-⅛″(80mm)
• Maximum Depth Of Cut At 45°: 2-⅛″ (83mm)
• Max Rip Right Of Blade With Included Fence & Rails: 31″ (787mm)

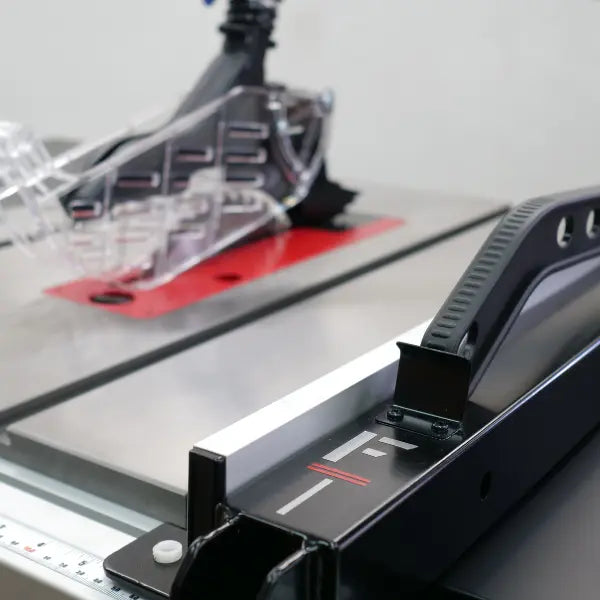

• The hybrid fence on the Laguna Fusion offers the best of European and American fence features. This fence is NOT designed to be used on the LEFT side of the blade! Rail or tube on LEFT side is provided only to make the ON/OFF switch position adjustable.
