Micro-Tec | Timing Tool Fiat 1.6 16V



Fiat 1.6 16V Timing Tool

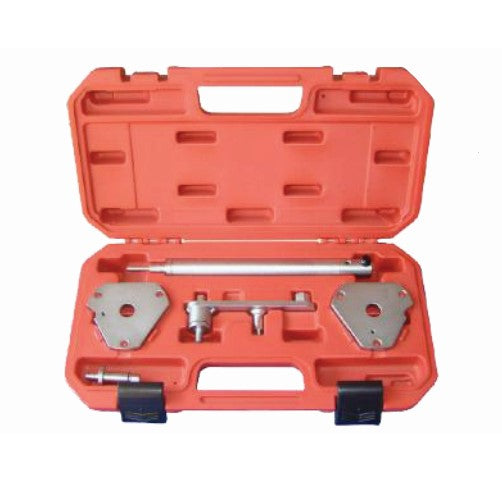

• Kit includes Camshaft Setting Plates, which locate at the rear of the camshaft to ‘lock’ them in their timed positions, and a special tensioner adjuster

Note: TDC position on Fiat Twin Cam engines is established using a TDC Positioning Tool, an associated tool, not included in the kit. It requires a suitable Dial Test Indicator. In addition, a Flywheel Holding Tool is required to ‘lock’ the crankshaft whilst releasing/tightening the crank pulley bolt. The crank pulley must be removed in order to remove the timing belt. The Flywheel Holding Tool used is dependent upon model.

OEM Tools: 1.860.874.000, 1.860.876.000

Models:

• Fiat: Brava/Bravo (1995-2002), Doblo/Cargo (2002-2006), Marea/Weekend (1996-2003),
• Multipla (1999-2011), Palio Weekend (1997-2006), Siena (1997-2003), Stilo (2001-2008)
• Lancia: Delta (1996-1999), Lybra (1999-2006)

Engines:

• 178B3.000, 182A4.00, 182A6.000 & 182B6.000
