Kreg | Precision Router Table Fence KR PRS1015

Kreg Precision Router Table Fence - Unmatched Versatility, Incredible Adjustability

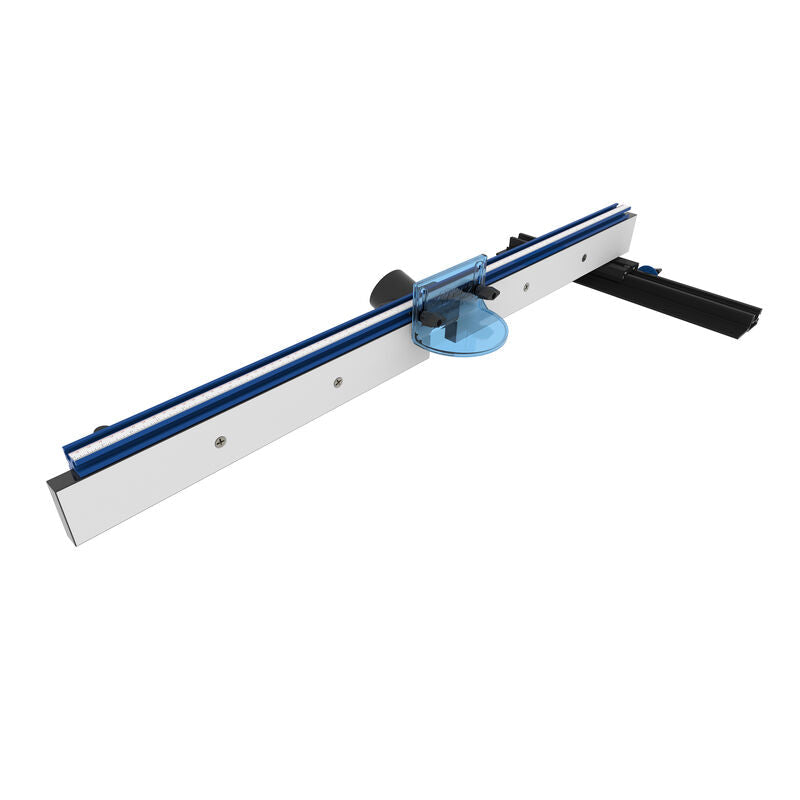

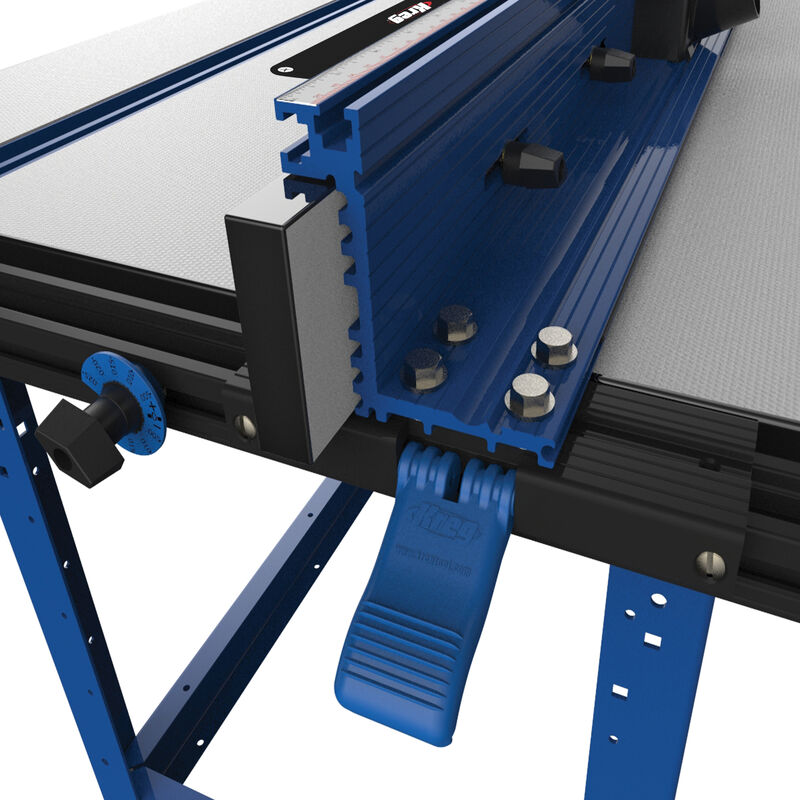

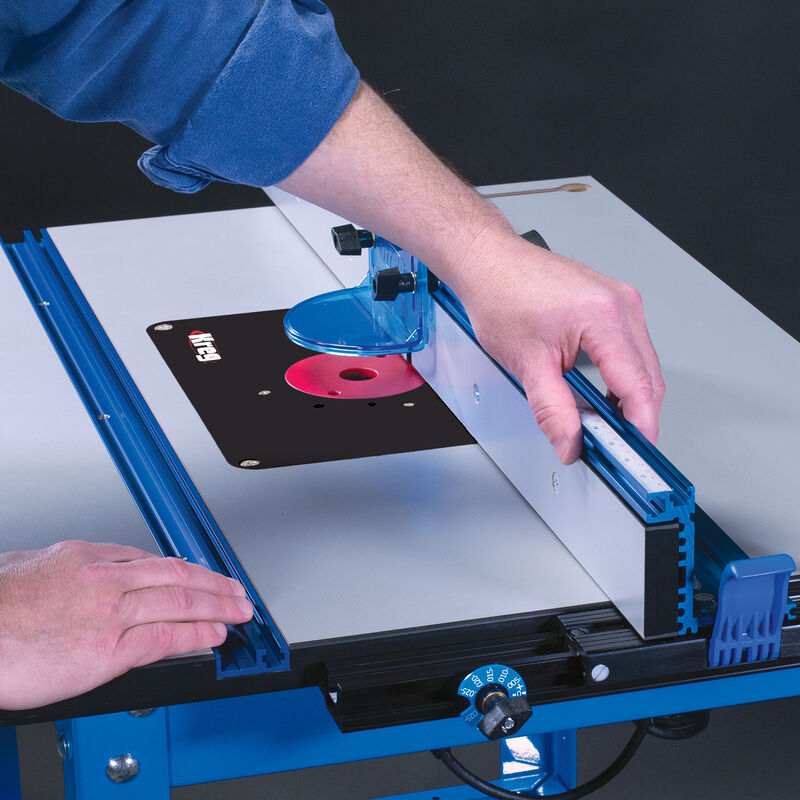

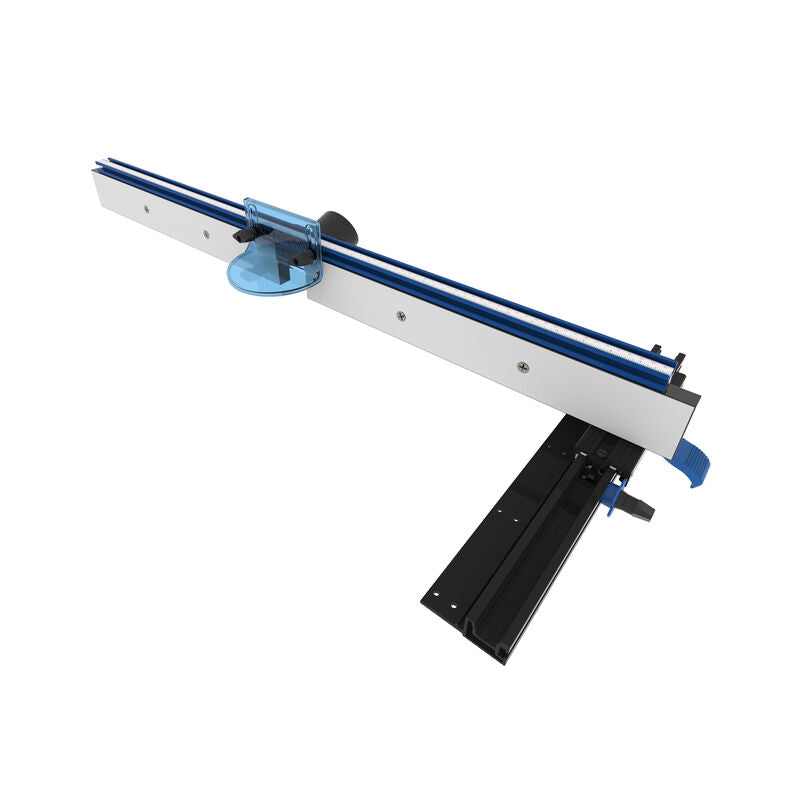

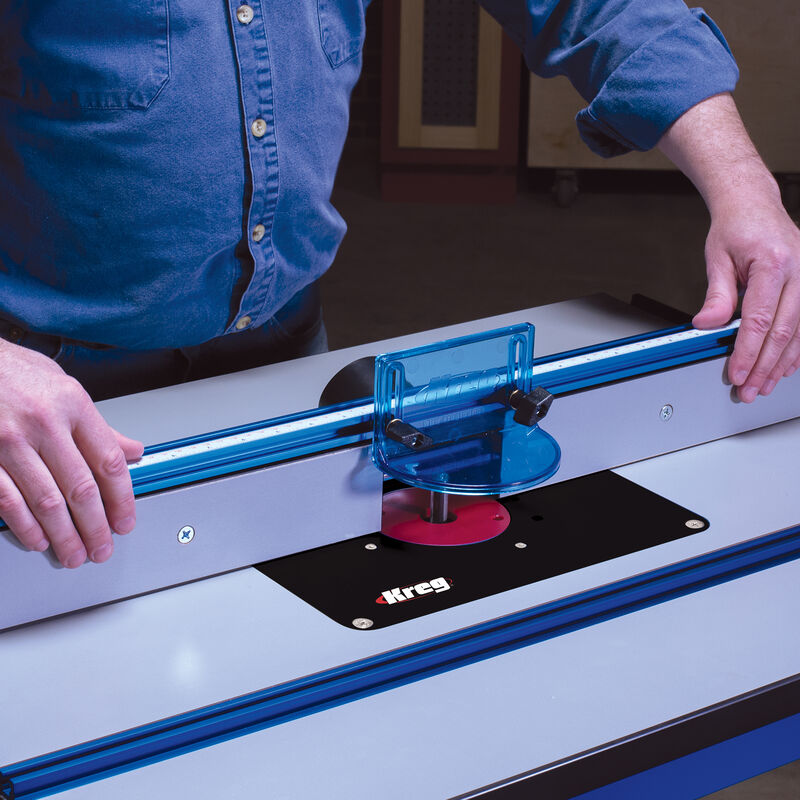

This innovative, anodized-aluminium fence features a table saw-style T-square adjustment system that ensures the fence will always stay parallel to the miter-gauge slot. The fence adjusts easily with just one hand, and locks firmly in place with dual locks: A large paddle lock on the infeed end, and a quarter-turn lock on the outfeed end that prevents fence deflection.

Unparalleled Accuracy

• A magnified measuring system with an adjustable measuring scale allows accurate setup with any bit
• The included Micro-Adjuster allows you to dial in precision measurements exactly

Independent Sliding Fence Faces

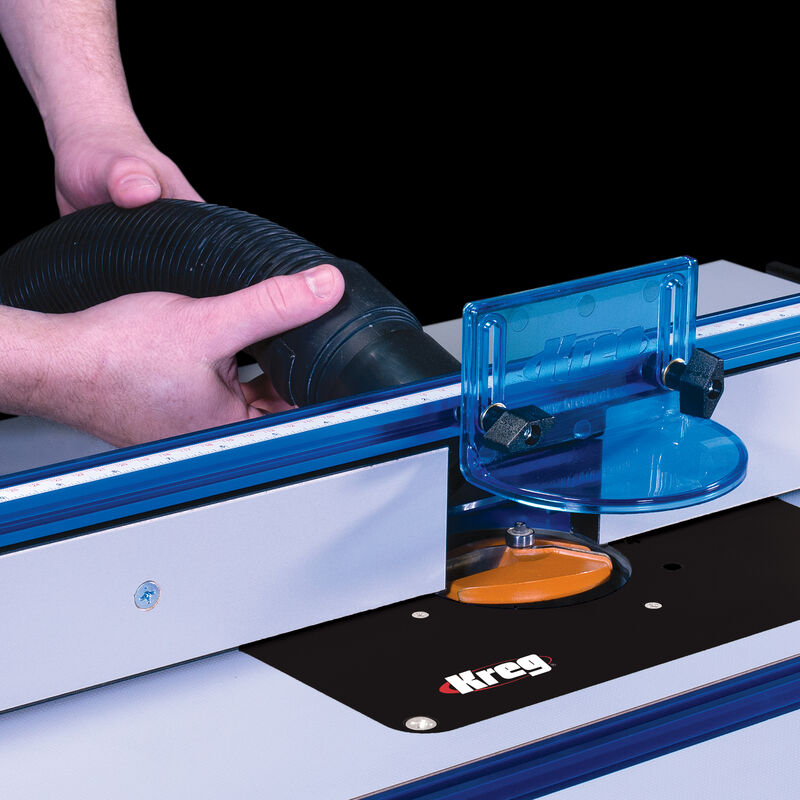

• Independent sliding fence faces can be positioned exactly where needed to provide workpiece support close to the bit, and to maximize chip collection into the fence’s built-in dust port

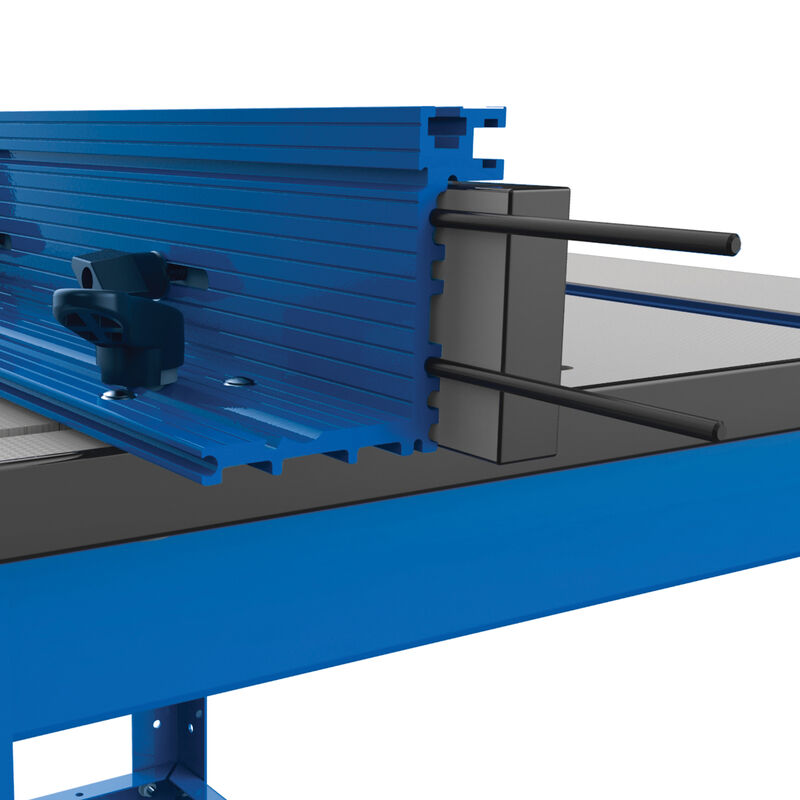

Built-In Jointing Feature

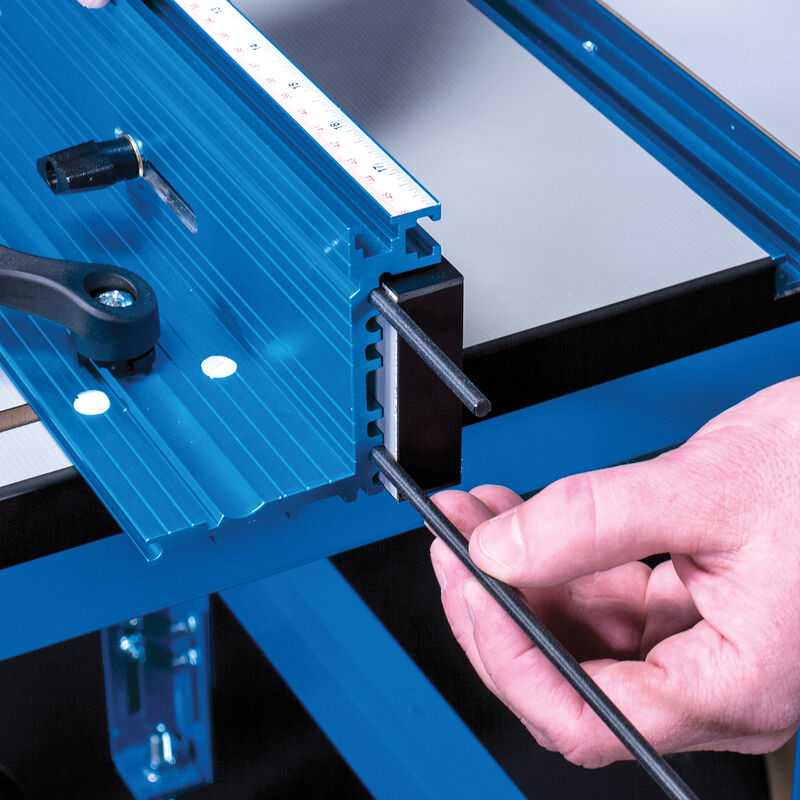

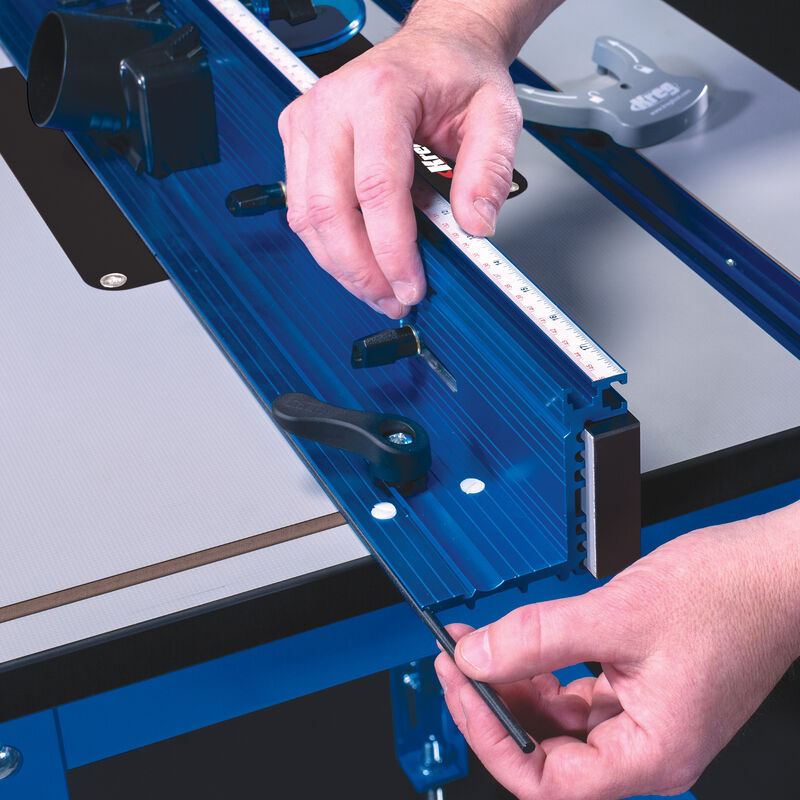

• Two jointing rods come included in this system
• Just slide them into position behind the outfeed fence face, and the fence doubles as a jointer for putting perfect edges on boards

Universal Mounting

• Get real precision on any router table
• A single-side, universal-mounting design allows the fence to be securely attached to most router table tops from ¾" to 1½" (19-38mm) thick

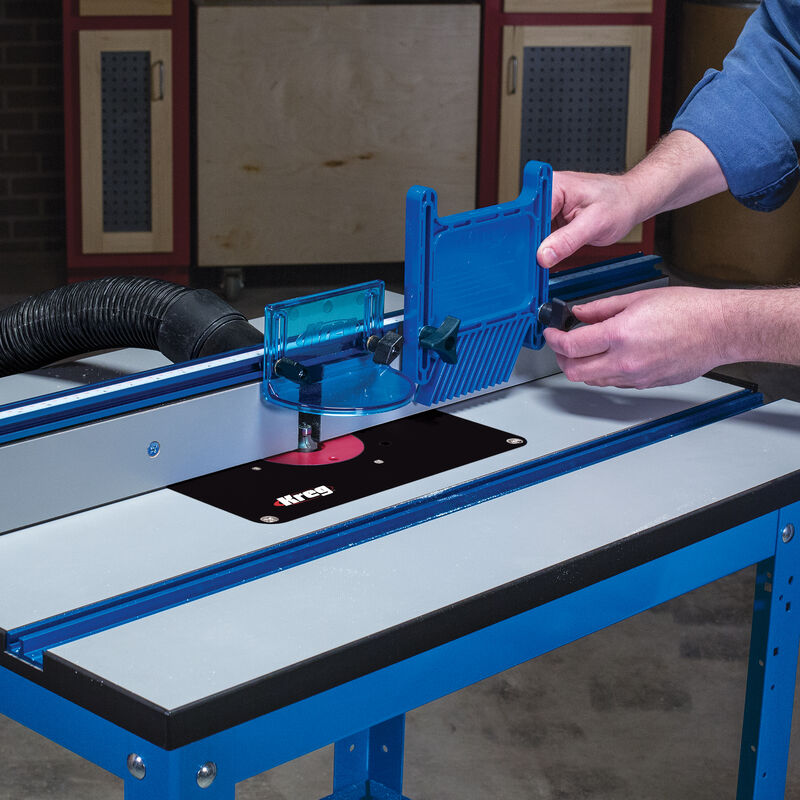

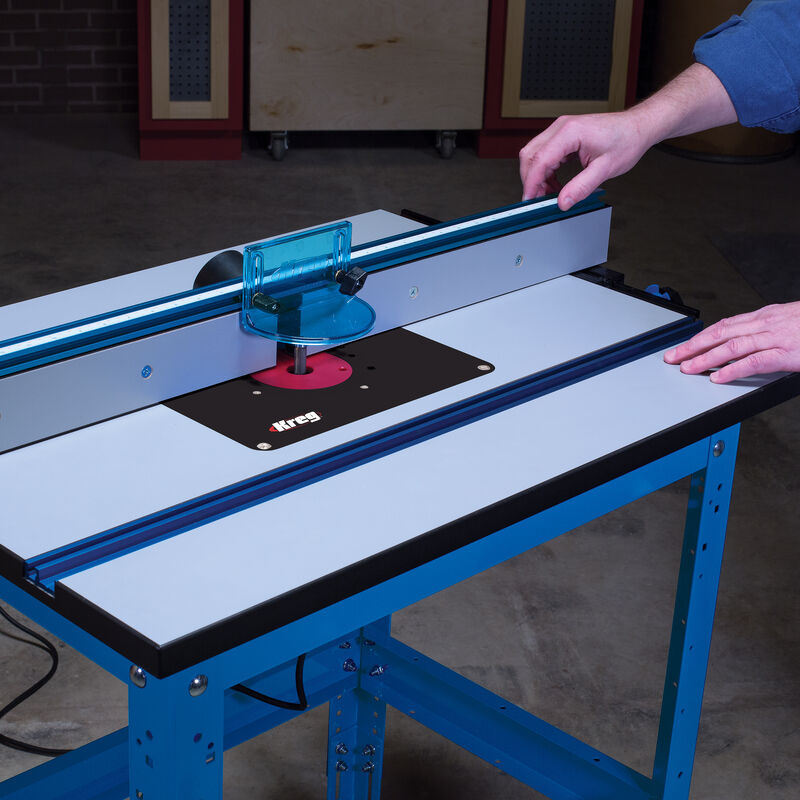

Create a Custom Router Table System

• Create a custom router table system to meet all of your routing needs with the Kreg® Precision Router Table Top and Kreg® Multi-Purpose Shop Stand
• Or, create your own system with a shop-made table top and stand

Note: Router bit hole must be located 16" (406mm) from right side of table. Fits 1"-thick (25mm) tables without modification. Thinner or thicker tables may require modification.

Specifications

• Easy-Slide™ low-friction surface

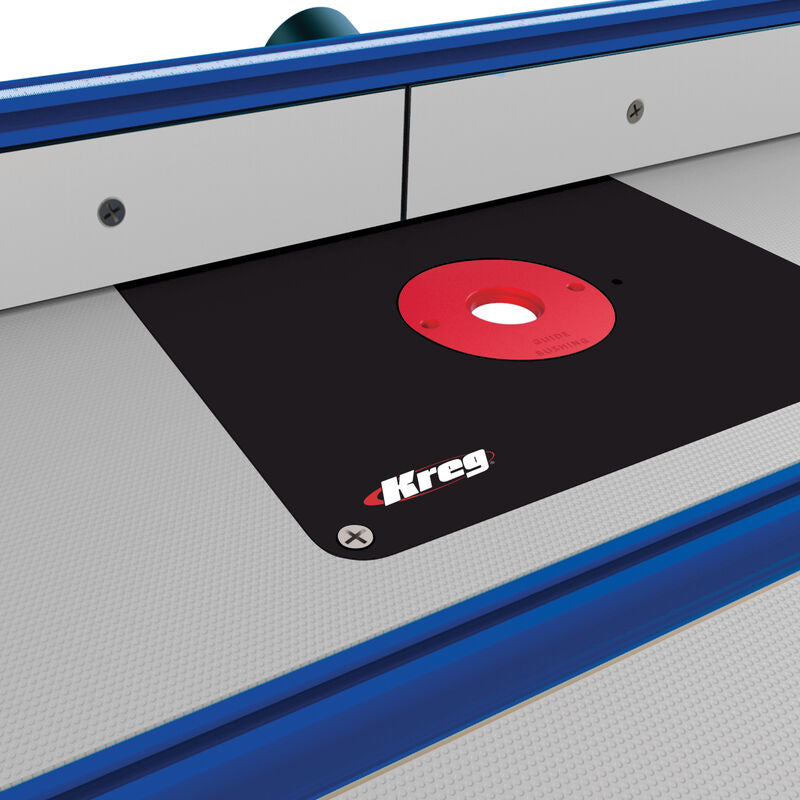

• Heavy-duty 3/8" x 9¼" x 11¾" insert plate
• Precision Insert Plate Levelers
• Versatile combination miter slot/T-Track
• Part of the Precision Router Table System
• Jointing capability
• Construction: Anodized aluminium , MDF, melamine
• Compatibility: Fits most router table tops from ¾" to 1½" (19-38mm) thick, designed for 32" table width, Precision Router Table Top and Precision Router Table Stop
• Dimensions: 36" overall length

Included

• Anodized-aluminium fence body
• 2x Adjustable faces
• 1x T-square style mounting carriage
• 1x Micro-adjust wheel
• 2x Jointing rods
• 1x 48" center reading measuring tape
• 1x Dust-collection port
• 1x Bit guard
• Assembly hardware
• Owner's Manual
