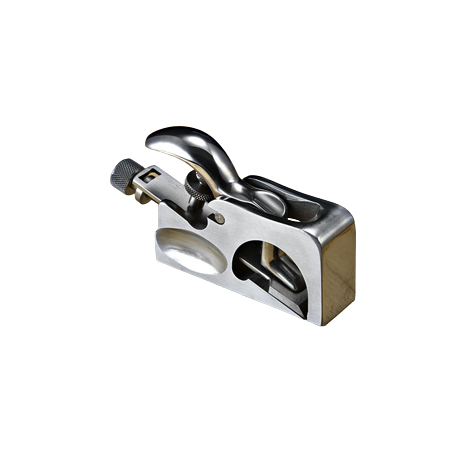

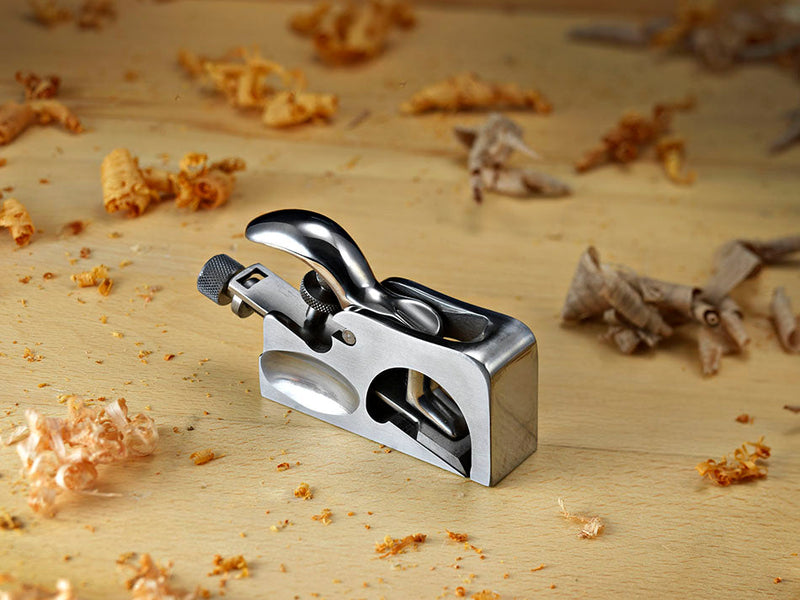

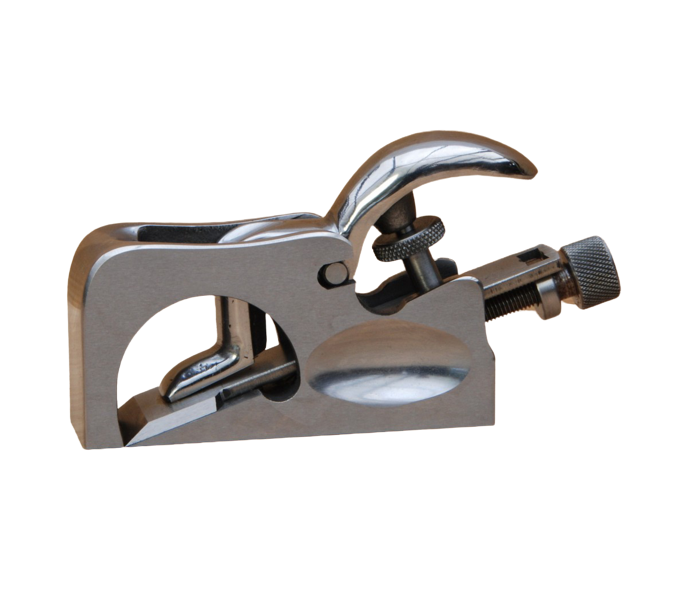

The Clifton 770 Bull Nose plane is made to the exacting specifications as all the other Clifton planes, this will certainly be a great purchase for those who want a quality bullnose plane. The 770 fulfils the need for a straight-forward bull nose plane enabling the user to plane close to an abutting section of wood and avoiding tear-out. It is a light handy plane often used for cutting rebate stop shoulders.
The body is machined from quality grey iron castings and is precision ground on the sole and sides. The lever arm is also made of grey iron. The cutting iron fits smoothly onto the machined pad in the body and can be finely adjusted by means of the screw. The finish is bright ground and all edges have been rounded over to fit comfortably in the hand.
This plane has a cutter width of 1 1/8ā³ (29mm) and is made from high quality oil hardened tool steel, 59-61 Rockwell āCā hardness. The cutting edge is ground to 25 degrees primary and 30 degrees secondary.
- Length ā 4ā³ (100mm)
- Approx. weight 1.7Ibs (.650kgs)
