SKU 0870600000

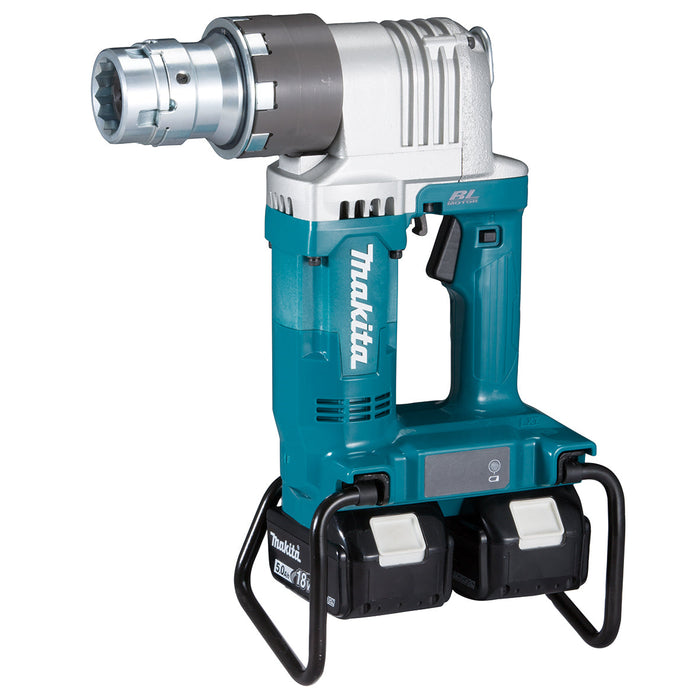

Makita | Cordless Shear Wrench BL Motor 804Nm DTW310
by Makita
We accept
DTW310 Shear Wrench with Brushless Motor
- 18V X2 (36V) LXT BL Brushless Cordless M16 (5/8") / M20 (3/4") / M22 (7/8") 804Nm (593 ft.lbs.) Shear Wrench
- Up to 14% Faster Fastening than Corded Model 6922NB
- Fastens 380 M22 (7/8") torque shear bolts with two 18V 6.0Ah batteries
- 18V solution for corded power demands
- Two 18V LXT Li-Ion batteries deliver the power and run time for corded demands without leaving the 18V LXT platform
- High power delivered by 36V (18Vx2) DC Brushless motor enables to fasten as fast as if you were using a corded shear wrench
- Delivers 804Nm (593ft/lbs.) of max torque for the most demanding applications
- Fastens 190 M22 (7/8") torque shear bolts with two 18V 3.0Ah batteries
- BL motor with high power to weight and size ratio
- BL motor generates less heat build-up and is ideal for prolonged use in high production applications
- BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
- BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
- Cordless for easy manoeuvrability
- Battery capacity warning light indicates ideal time to recharge battery
- Electric brake for maximum productivity and increased operator safety
- Extreme Protection Technology (XPT) engineered to provide increased dust and water resistance in harsh job site conditions
- Battery protection circuit protects against overloading, over-discharging and over-heating
- Hook for carrying the machine
- Does not come with Batteries or Charger
Specifications
| Capacity | High Strength Torque Shear Bolt (HTB): M16, M20, M22 (5/8, 3/4, 7/8") |
|---|---|
| Max Fastening Torque | 804 Nm (593ft/lbs.) |
| Max Output | 1,250W |
| Vibration Level | 2.5m/sĀ² or less |
| Vibration K Factor | 1.5m/sĀ² |
| Sound Pressure Level | 83dB(A) |
| Sound Power Level | 94dB(A) |
| Noise K Factor | 3dB(A) |
| Dimensions (L x W x H) | 296 x 130 x 377mm (11-5/8 x 5-1/8 x 14-7/8") |
| Net weight | 6.5 - 7.1kg (14.3 - 15.7lbs.) |
