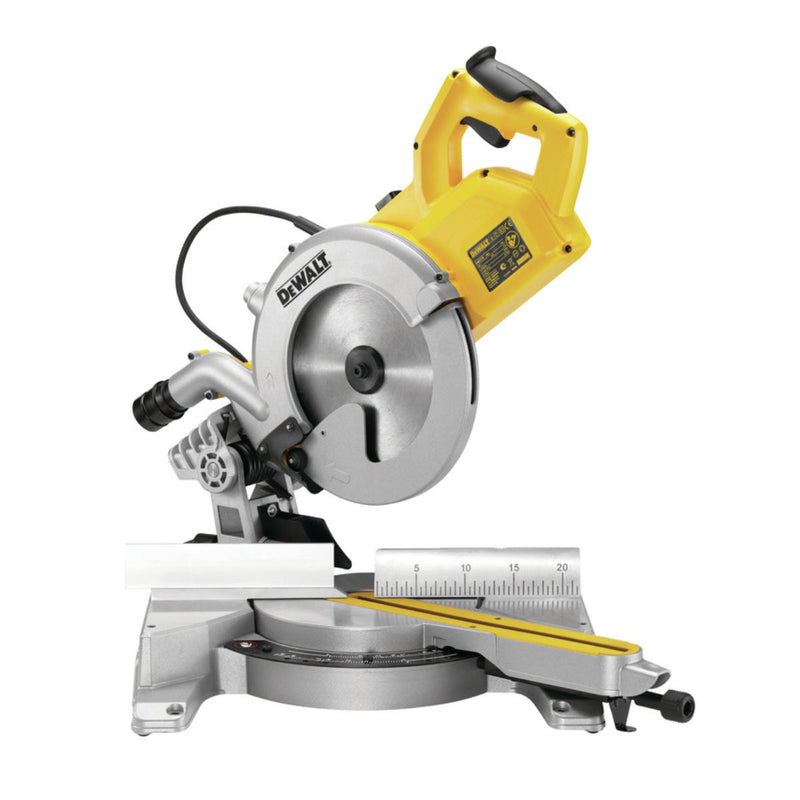

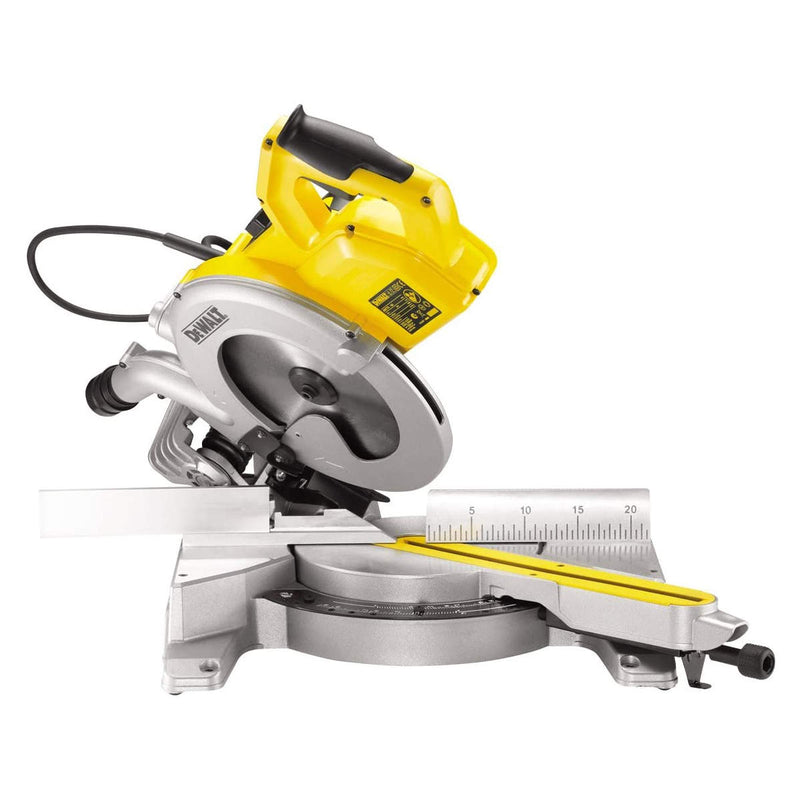

250mm Sliding Mitre Saw

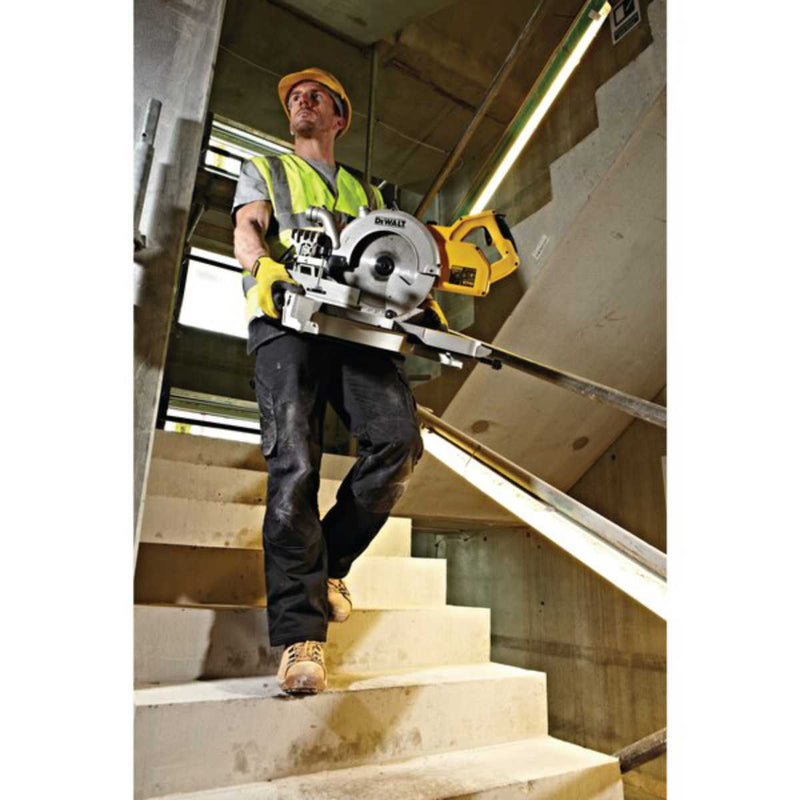

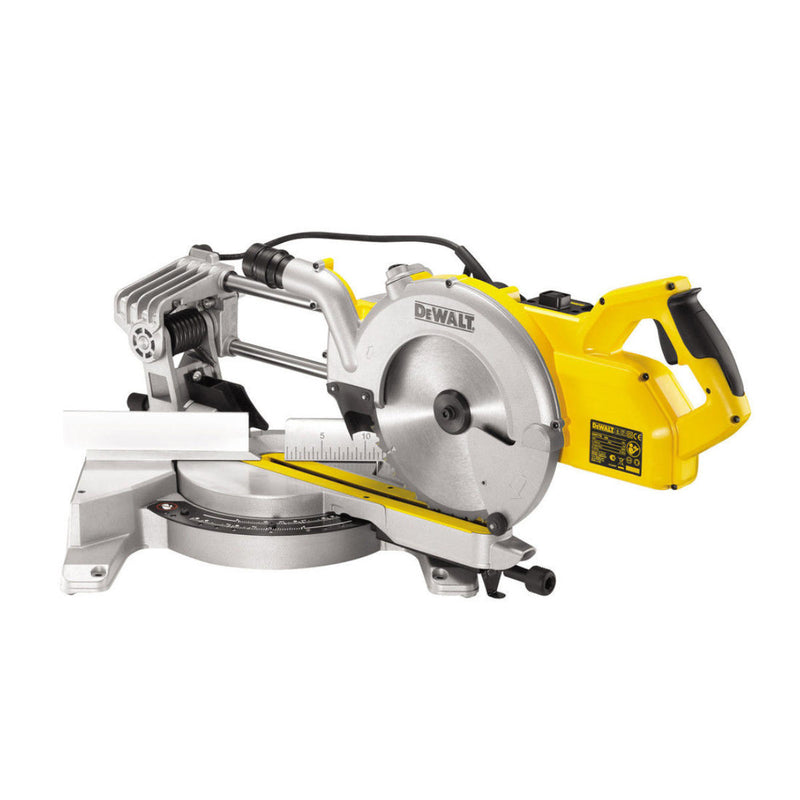

The DEWALT DWS778 is robust, accurate, and lightweight. The DWS778 250mm mitre saw cuts up to 305mm wide board, and mitres up to 50° on the right and 50° on the left for unbelievable versatility. Its portability makes it a top choice for carpenters, deck builders and set builders who want maximum capacity on the jobsite.
- XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity
- Built on classic pull saw design improved and updated for the modern user
- New 1850 Watt motor for powerful cutting in all materials
- Compact internal rail design for huge cutting capacity in a highly transportable format
- New head lock function allows the head to be fixed, restricting the traverse function for trim applications and ease of transportation
- The base and fence have been machined to meet the accuracy requirements of the most demanding applications
- Sliding left hand fence with measuring scale for improved material support and management

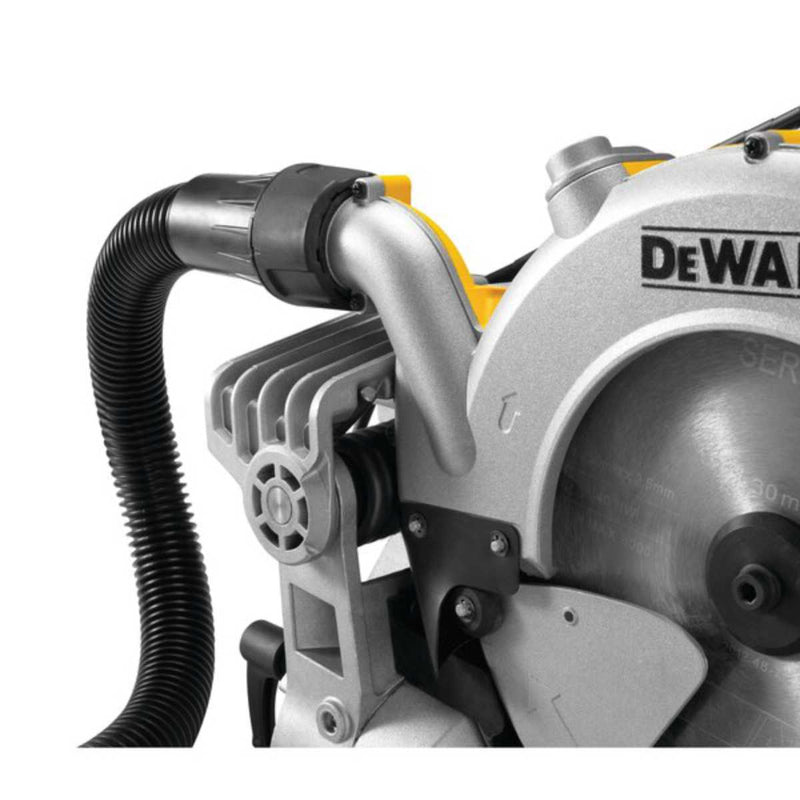

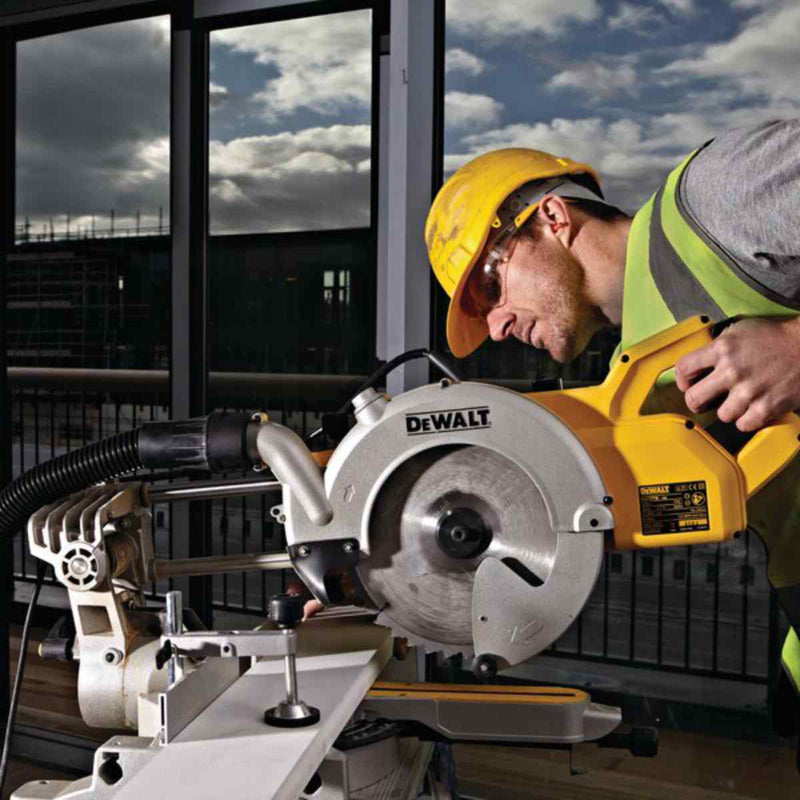

- Dust extraction specifically designed to meet the needs of the professional user in heavy use applications, protection from air born dust particles minimises health risk over long periods

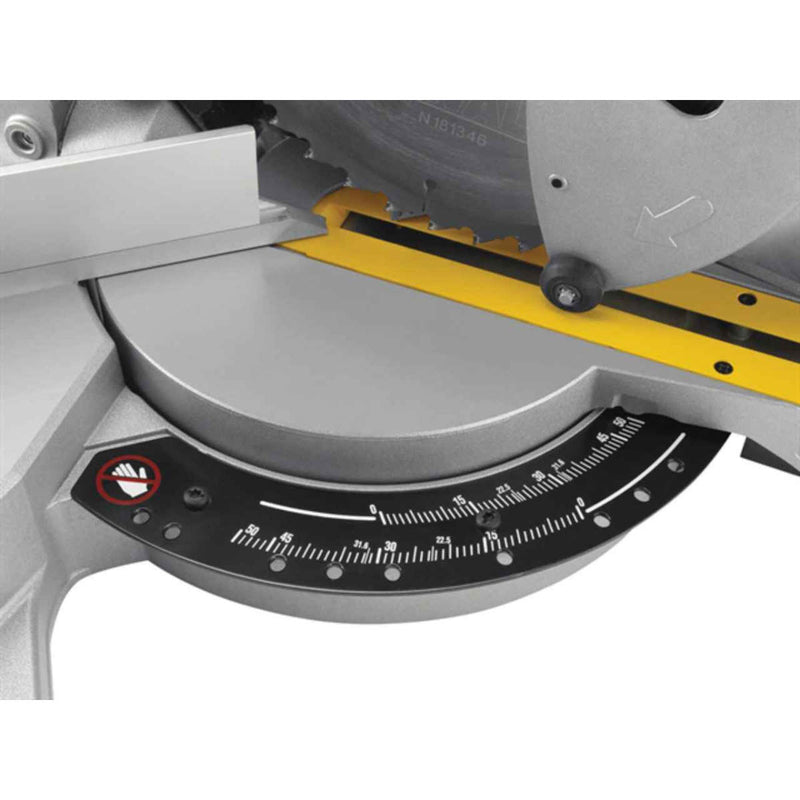

- Integrated positive mitre stops at 15°, 22.5°, 30°, 45°, quick release mitre mechanism up to 50°
Included

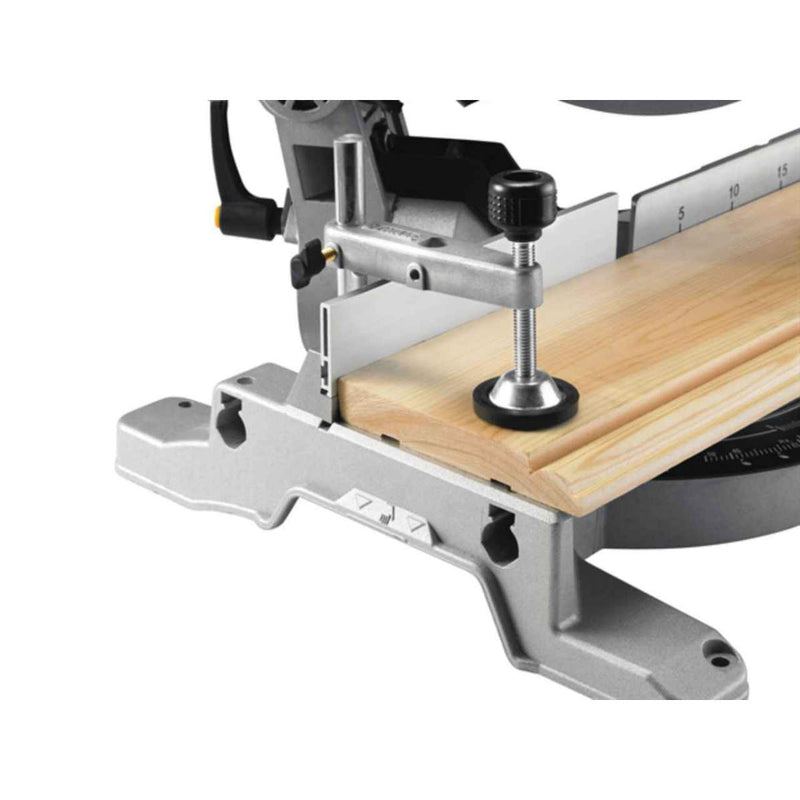

- 1x Mitre saw, 2x Hex keys 4/6 mm, 1x Saw blade, 1x Material clamp, 2x Base extension handles and installation hardware
Specifications
- Rating: Industrial
- Power input: 1850W
- No-load speed: 4300rpm
- Blade diameter: 250mm
- Blade bore: 30mm
- Cutting depth: 85mm
- Max. blade thickness: 1.75mm
- Max. kerf of the saw blades: 3mm
- Mitre positions, max. left: 50°
- Mitre positions, max. right: 50°

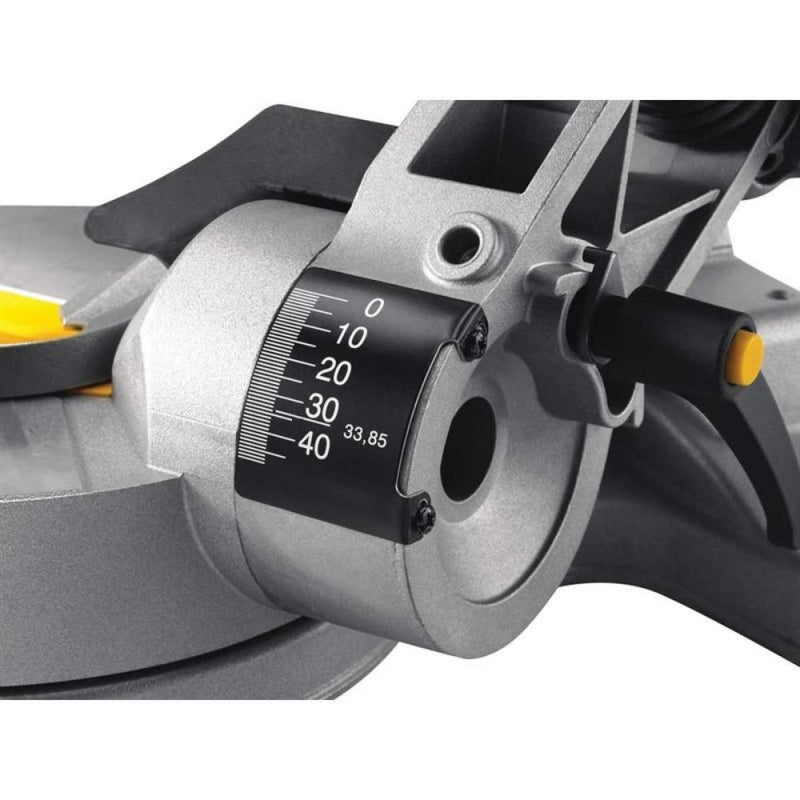

- Bevel position, max. left: 48°
- Compound mitre, bevel: 45°
- Compound mitre, mitre: 45°
- cross cut 90°: 85 x 305mm
- mitre 45°: 85 x 215mm
- mitre 50°: 85 x 198mm
- bevel 45°: 58 x 305mm
- bevel 48°: 54 x 305mm
- Dimensions: 465 x 615 x 390mm
