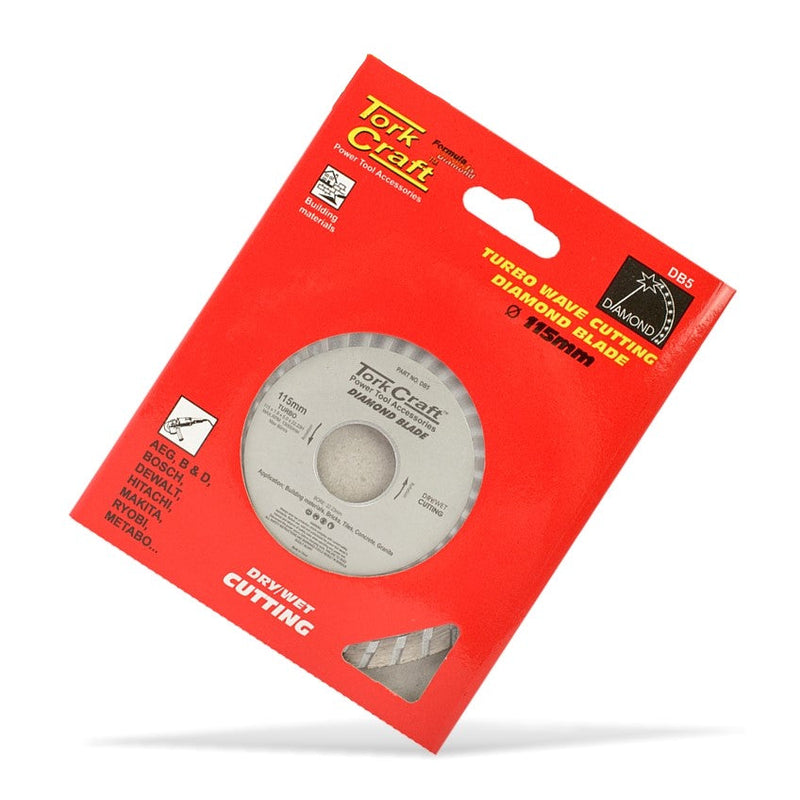

Tork Craft | Diamond Blade Turbo 115 X 22,23mm

Turbo Diamond Blade

Diameter: Ø115mm
Bore: Ø22,23mm
Max rpm: 13,300rpm
Use: Tile, marble, stone, granite & building materials

The turbo diamond blade features a continuous rim with a serrated edge. Combining the qualities from both segmented and continuous rim blades.

The blade consists of both soft and medium hardness metal bonds to allow for general purpose cutting applications and can be used wet or dry.

What is a diamond blade?

• A diamond blade is composed of a circular steel core and the diamond impregnated segments
• The segments are separated by slots in the core
• These slots assist in cooling the blade during operation by allowing water (wet cutting) or air (dry cutting) to flow between the segments
• The segments or rims are a mixture of diamond powder and metal powders
• The diamonds are industrial diamonds of different sizes and qualities depending on the material to be cut as well a the blade type

How does a diamond blade work?

• The individual diamond crystals exposed on the leading edge and the sides of the segment or rim carry out the cutting
• The operator pushes the rotating blade into the material and the surface diamonds thus exposed mill a groove in the material
• When the blade mills the material, the latter exerts wear on the blade
• During cutting the exposed diamonds may crack or break
• The material simultaneously starts to abrade the metal matrix, which releases more diamonds

• The more abrasive the material, the more rapid the tendency to wear down the matrix
• Blades for cutting hard, denseless abrasive materials (such as tile, bricks, stone or cured concrete), require a softer metal matrix
• This will wear down faster, replacing the worn diamonds fairly quickly so that the blade continues to cut
• Blades for cutting soft, abrasive materials (such as green concrete and asphalt), must have  a hard, abrasion-resistant metal matrix in order to retain the diamonds for a longer time

Water will prevent the blade from overheating: It will greatly reduce the amount of harmful dust created by cutting. Remove the slurry from the cut, and extend the life of the blade.

Usage

• Make multiple shallow cuts instead of a single deep cut
• Do not side grind a cutting blade
• Fit the blade in the correct rotation direction
• The life expectancy and cutting performance of the blade will be reduced when fitted reversed
• It is also prone to becoming glazed
• When a diamond blade is glazed, it feels smooth to the touch with little to no diamonds exposed
• This happens when the metal bond on the segment is too hard for the material it is cutting
• To rectify - expose more diamonds on the segments by making shallow cuts in a soft, abrasive material like limestone
• A short diamond blade life is a result of using a blade with a soft metal bond on a more abrasive material such as sandstone or asphalt
• Wet cutting will extend the life of the blade
• Select the correct blade for the material

Description:

• Diamond Blade Turbo 115mm
• Used for Dry and Wet Cutting
• For Building materials, Bricks
