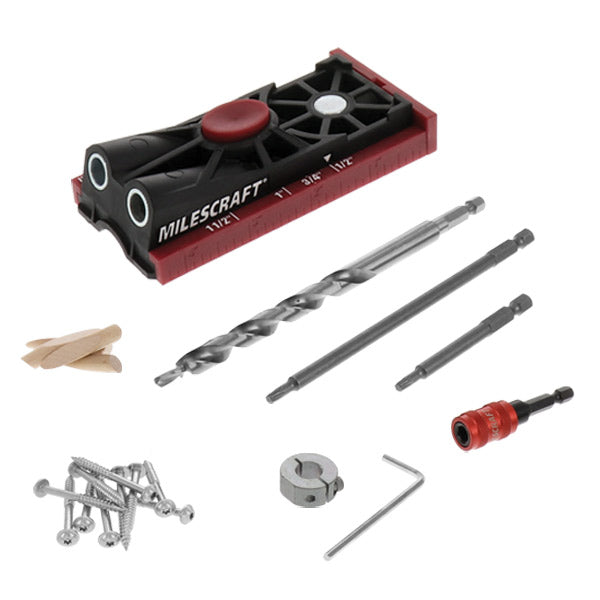

Milescraft | Pocket Jig Kit 200

Pocket Jig Kit 200

Simple, Quick, Precise, Pocket Hole Jig Kit

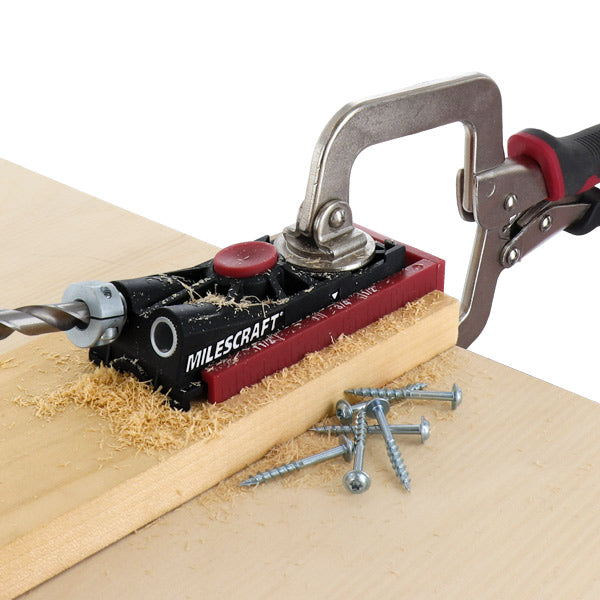

• The Milescraft PocketJig200 pocket hole jig allows you to connect your workpieces in a quick and timely manner
• Whether you want to build storage projects, cabinets, shelves or bookcases, this kit does it all
• Allowing you to create corner joints, T-Joints, Framing Joints, Miter Joints and do repairs
• With built-in settings for board thicknesses, there is no need to manually measure
• Just set this pocket jig to your desired setting, set the depth of your bit and start drilling

Designed To Make Repairs Simple:

• Spring-loaded sled adjust button allows the jig to be set to do repairs of any nature around your home or your shop

Built-In Imperial And Metric Scales:

• The built-in scales allow you to easily measure the thickness of your workpiece

Board Thickness Settings:

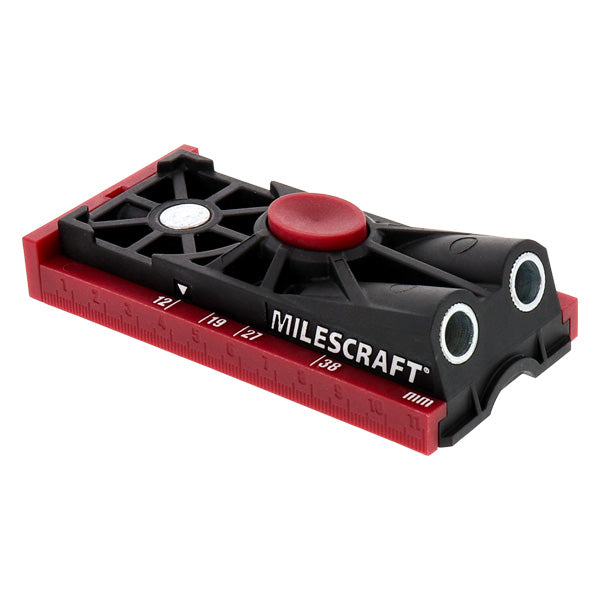

• There are four common board thickness settings built into the pocket jig: 1/2”, 3/4”, 1” and 1-1/2” (12, 19, 27, 38mm)
• Easy readout arrow to help define your board thickness setting
• Easily adjust to your board thickness setting with the single sled design and sled adjust button

Hardened Steel Drill Bushings:

• For precise and accurate pocket holes every time using the Milescraft PocketBit
• Tight tolerances between the bushing and the drill bit, reduce tear-out and create a clean pocket hole on the first try

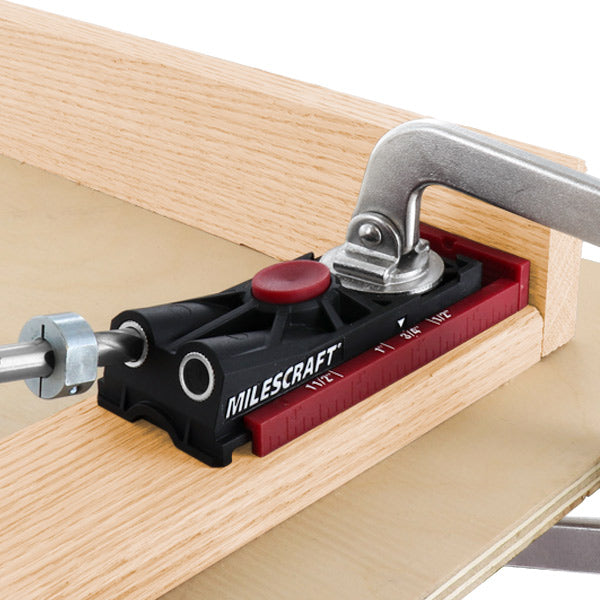

Recessed Clamp Pocket With Magnet:

• Helps to keep the clamp in the same position as you move to different locations
• With the stronger rare earth magnet, you can easily clamp the jig from one location to another
• For speed and accuracy, use the Milescraft FaceClamps

Convenient Built-In Depth Setting:

• Easily set your bit for the correct drilling depth

3/8″ HSS Step Drill Bit:

• Made from high-speed steel the PocketBit with 1/4″ hex shaft is designed to reduce clogging and provide smooth and precise holes

3/8″ Split Design Stop Collar With Flat:

• The split design prevents slipping of the set screw when tightened and the flat prevents the bit from rolling
• Includes hex key for tightening

Quick Change Compatible Connector:

• With the Milescraft Connector, you can quickly change from drilling to driving
• Accepts all 1/4″ hex bits
• Quickly and easily change from drilling to driving

3” And 6” Magnetic T20 Torx® Drivers:

• For maximum torque settings without stripping
• To allow pocket screws to align with maximum precision

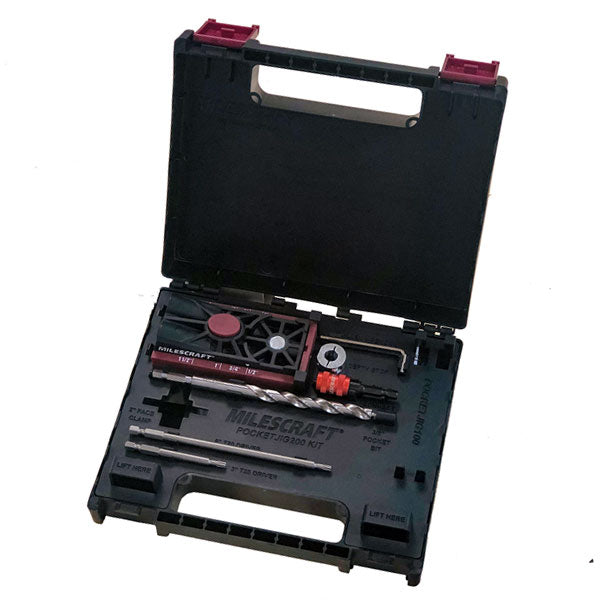

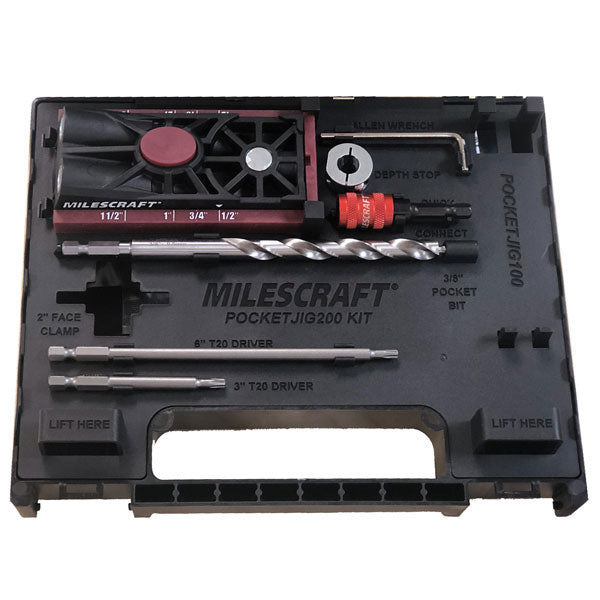

Rugged Storage Case:

• With designated places for components, you will never have to go digging through your toolbox for your pocket hole jig again
• Storage compartment for 2″ FaceClamp
• Storage slot for PocketJig100
