EuroHinge Jig

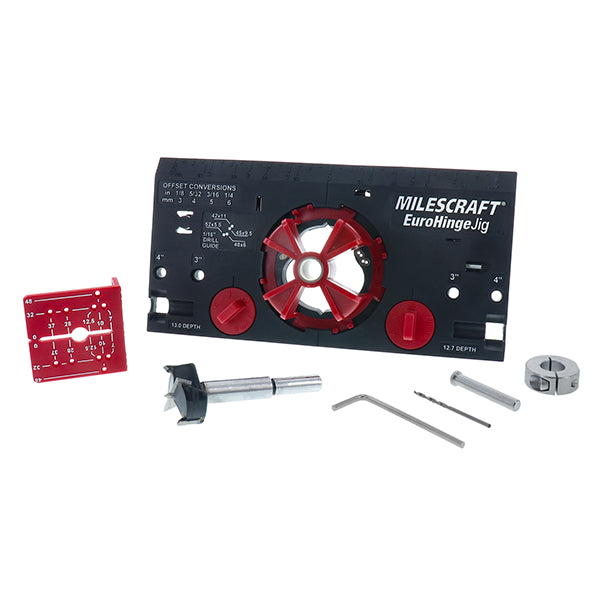

The Milescraft EuroHingeJig™ takes the guesswork out of installing European-style concealed hinges. The self-aligning jig works with frameless and face frame cabinets and has settings for all of the most popular hinge styles and cup locations. It even has a feature to help position and mount your door to the cabinet.

Features

• Two edge alignment knobs position the cup hole from the edge of the door, while the edge locator pin sets the distance from the top/bottom
• The drill guide with metal bushing locks into the jig and creates a perfectly straight hinge cup hole
• Guide bushings built into the body of the jig let you pre-drill pilot holes in four common locations, making sure hinges are straight and the door closes true
• Easily set your cup hole depth on the included 35mm high-speed steel bit using the built-in depth setting fixtures
• The hinge marking guide detaches from the bottom of the jig and allows you to transfer and mark centerlines and hinge location to cabinet wall or frame

Specifications

• Edge Offsets: 2.5mm, 3mm, 4mm, 5mm, 6mm, 7mm
• Locations Pin Offsets: 3”, 4”
• Drill Bit: 35mm EuroHinge Boring Bit
• Shank: 3/8" Round
• Depth Stop: 3/8" Split
• Depth Settings: 12.7mm, 13mm
• Includes: Hinge Marking Guide, 1/16” Pilot bit & 3mm Allen Wrench
