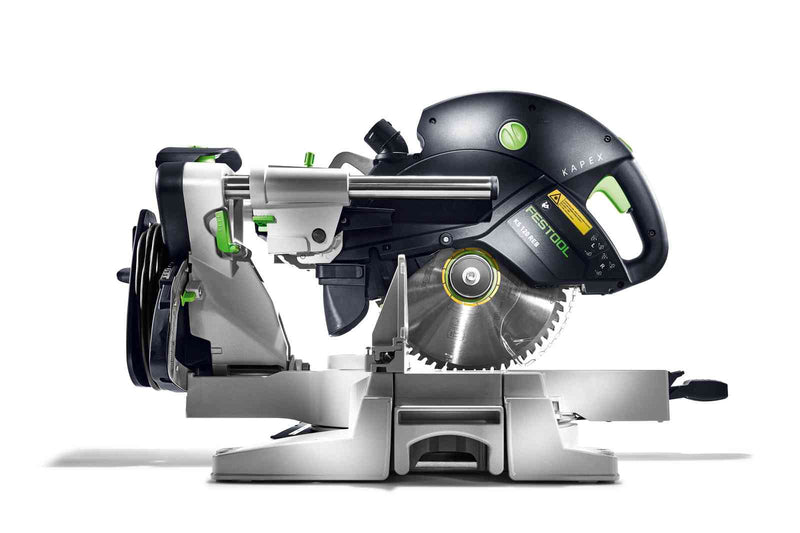

Festool | Sliding compound mitre saw KAPEX KS 120 REB-Set-UG

by Festool

SKU FES575313

Sold out

R 77,070.70

R 77,070.70 - R 77,070.70

R 77,070.70

R 62,042.00

R 62,042.00 - R 62,042.00

R 62,042.00

Product Description

FESTOOL. Our passion for high-quality power tools has continued for more than 90 years. We share this fascination with our users and fans. Our products make life easier for professional tradespeople – and help them to achieve perfect results faster.

Quality down to the finest detail.

Guides left, guides right. Even where others only pretend to do so. With spherical bushings on both sides to offer a double layer of protection in terms of keeping the carriage precisely on course across extra-large columns. Double-sealed for an extremely long service life, always exact and with zero play.

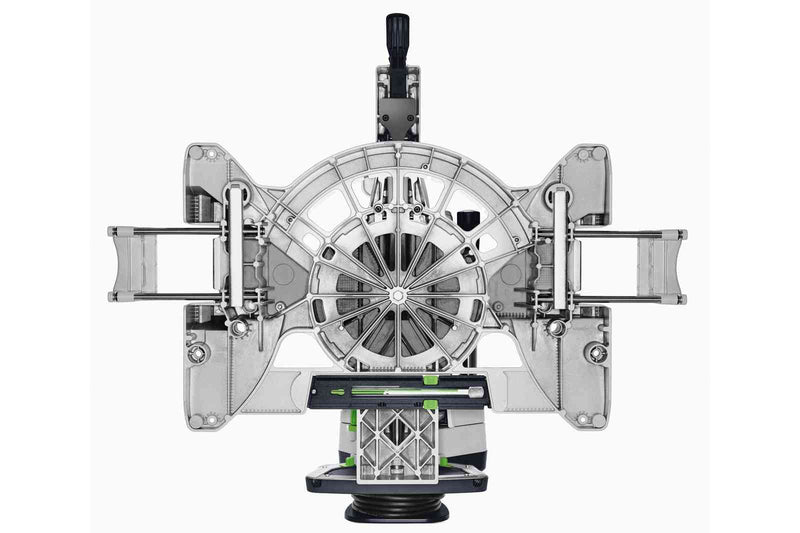

Twin-column guide with two bearings for unique precision

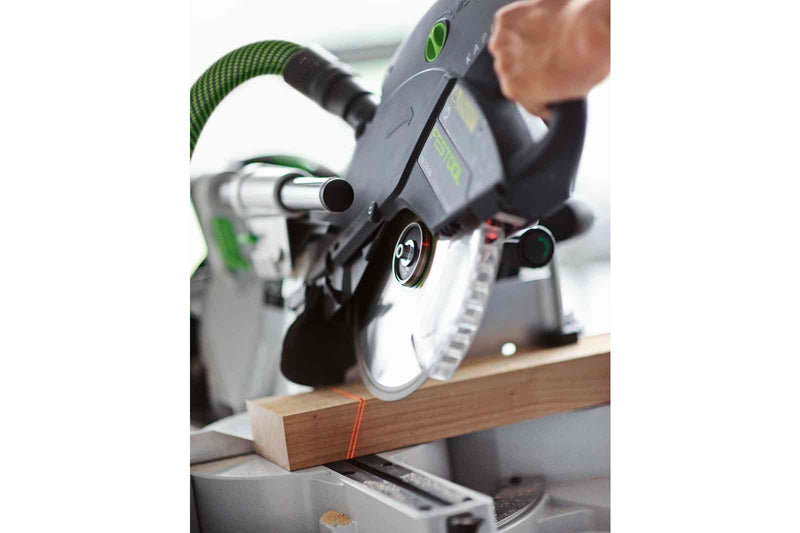

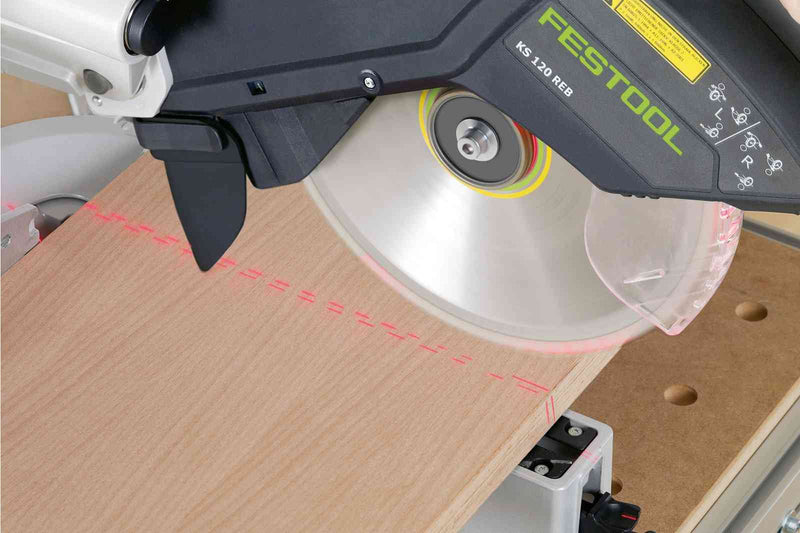

Dual-line laser for an accurate indication of the cutting line
Fine adjustment of the saw blade angle accurate to the millimetre from the front of the machine
Special cutting position for cutting depths up to 120 mm
FastFix saw blade changing for adaptation to the working material
Twin-column guide for accurate cuts

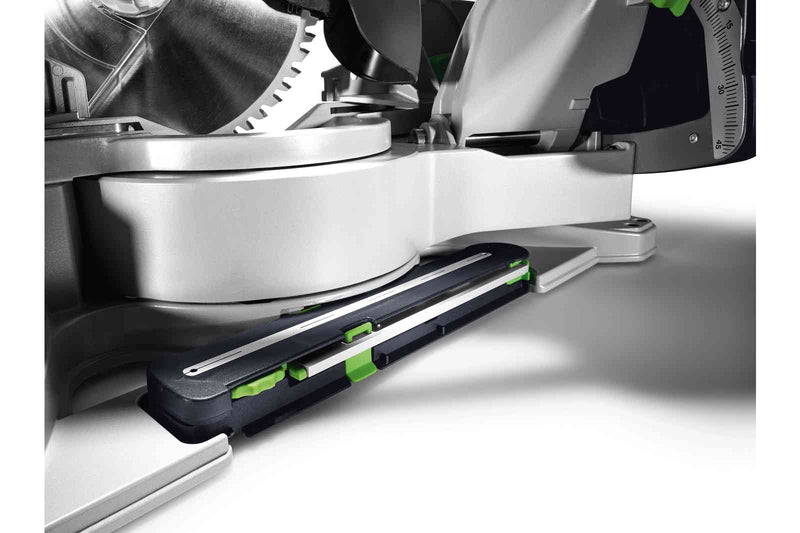

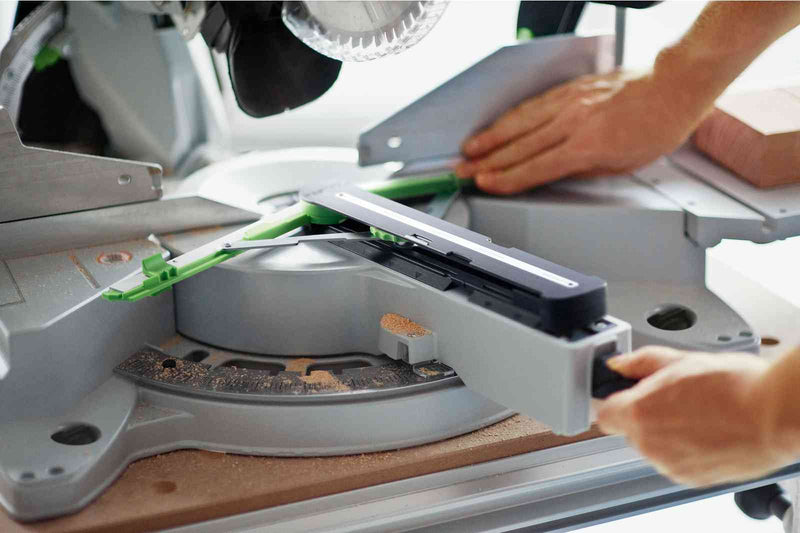

Precision angle transfer via bevel and dual-line laser
Compact, lightweight design for convenient transportation
Safety brake

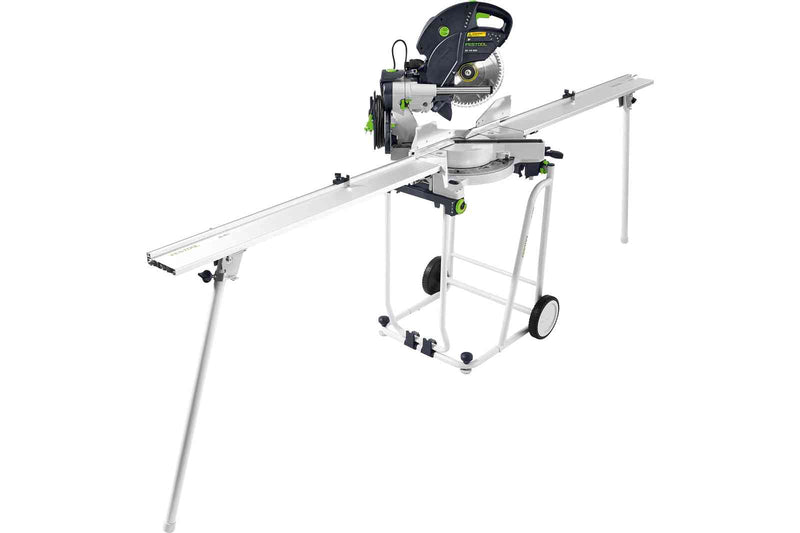

(KA-UG-R, KA-UG-L and UG-KAPEX incl. in the contents)

Main applications

Trimming skirting boards and cornices up to 120mm in height – no calculations

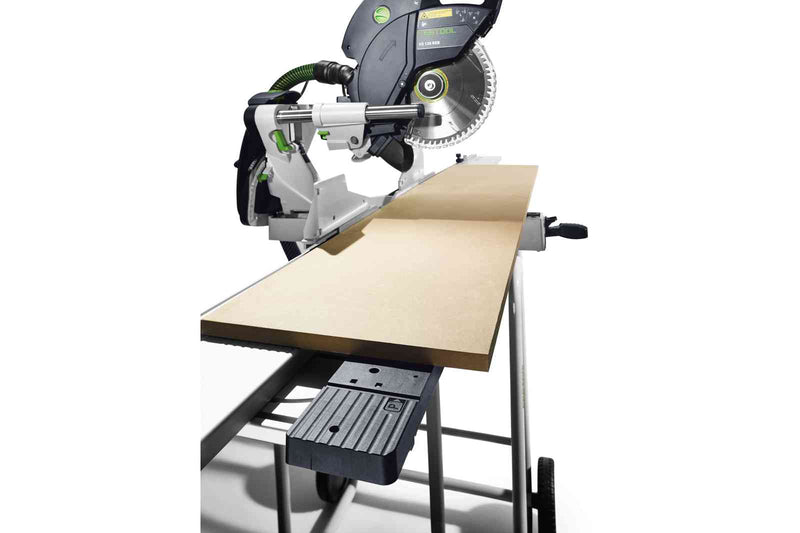

Cutting boards and panels up to 305 x 88mm
Trimming crown mouldings up to 168mm in their original wall position
Trimming square timber and beams up to 88mm thick

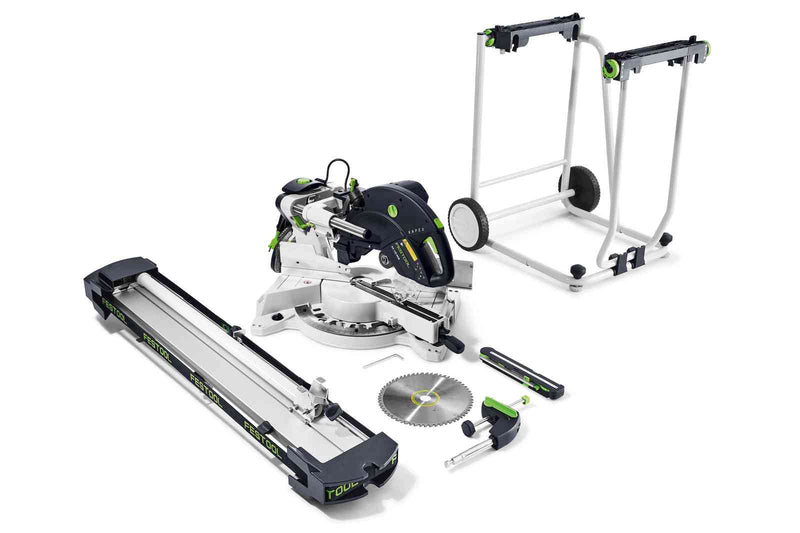

Included

circular saw blade WOOD UNIVERSAL HW 260 x 2, 5 x 30 W60, Bevel, workpiece clamp, underframe, trimming attachment KA-UG-R/L, adjustable stop, telescopic slide-out scale, fold-out pedestal, hex key, WAF 6, in carton

Specifications

Power consumption: 1 600W
Idle engine speed: 1 400 - 3 600min⁻¹
Saw blade diameter: 260.00mm
Cutting depth 90°/90°: 305 x 88mm
Cutting depth at 45°/90°: 215 x 88mm
Special cutting depth 90°/90°: 60 x 120mm
Crown moulding diagonal cut 45°/90°: 168.00mm
Inclination angle: 47/47°
Mitre angle: 50/60°
Dimensions (W x D x H): 713 x 500 x 470mm
Cable length: 3.50m
Dust extraction connection diameter: 27/36mm
Special cut. depth 45°/90° (left): 40 x 120mm
Special cutting depth 45°/90° (right): 20 x 120mm
Cutting depth 50°/90° (left): 196 x 88mm
Cutting depth 60°/90° (right): 152 x 88mm
Cutting depth 45°/45° (left): 215 x 5 mm
Cutting depth 45°/45° (right): 215 x 35mm
Crown moulding diagonal cut at 90°/90°: 168.00mm
Work height: 900.00mm
Product weight without accessories: 24.30kg
Drive type: Mains
