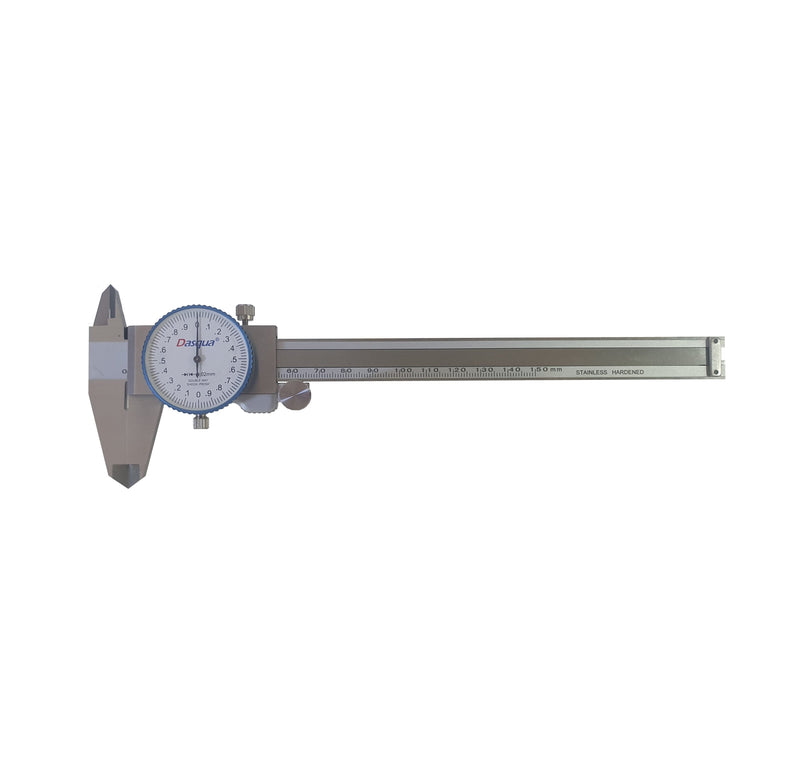

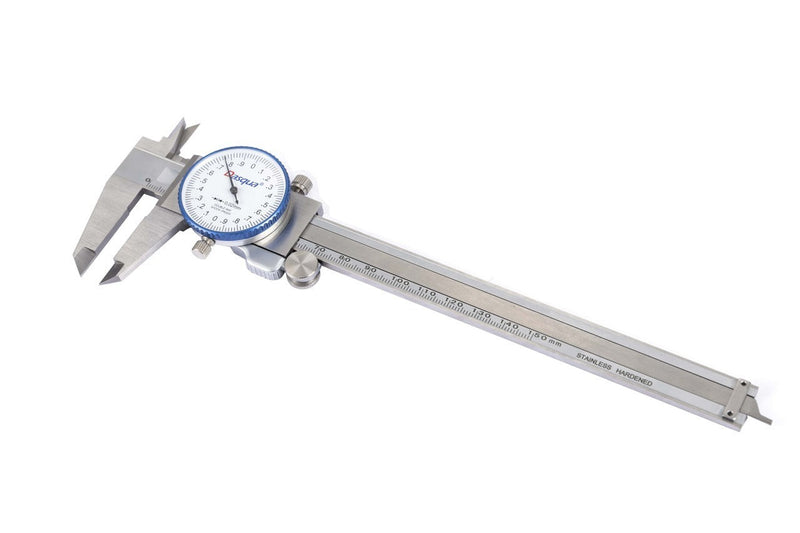

Dasqua | Vernier Calliper 150mm 02 Dial Double Shock Proof Gearing

Mechanical Dial Vernier Caliper 0-150mm Double Shock-Proof

EMG Precision Endorsed Dasqua Mechanical Dial Vernier Calipers With Stainless Steel Construction And Featuring A Measurable Range From 0-150mm. Tough Double Shock-Proof Gearing And Large Clear Read Dial.

About The Tough 1331 Series..

The Dasqua Series 1331 Mechanical Dial Gauge Vernier Calipers are part of our Touch, Heavy Duty range engineering inspection equipment. This particular model is available in 4 sizes, 100, 150, 200 & 300mm. It is also available with metric or imperial graduations including a choice between 0.01 (1350) & 0.02mm (1331) in metric and 0.001" imperial (1332). The 1331 Series brothers are sisters are notably the 1350 & 1332 Series as reference above in brackets.

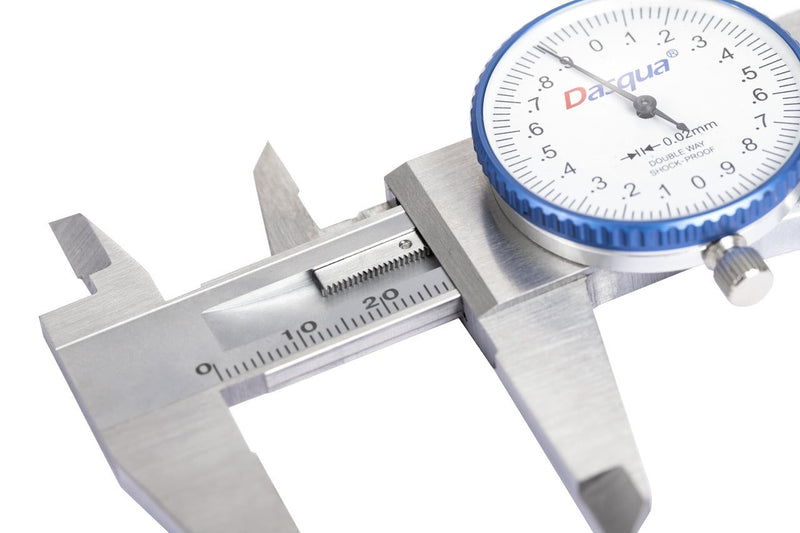

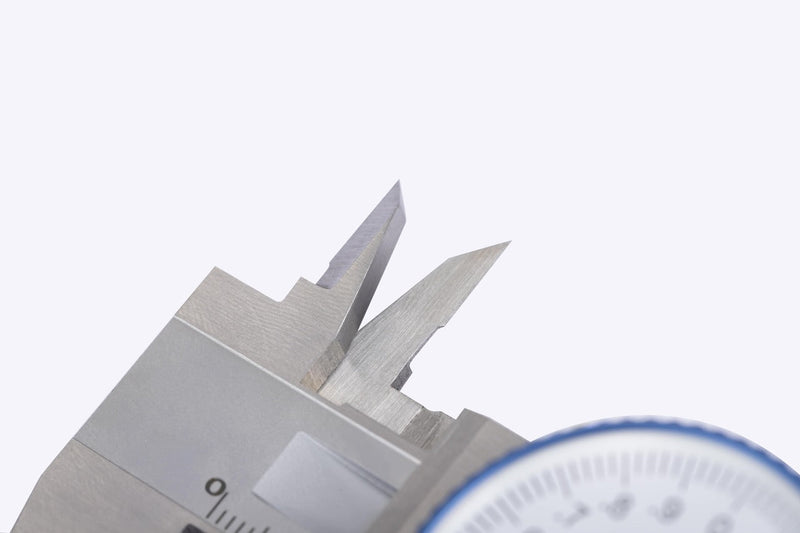

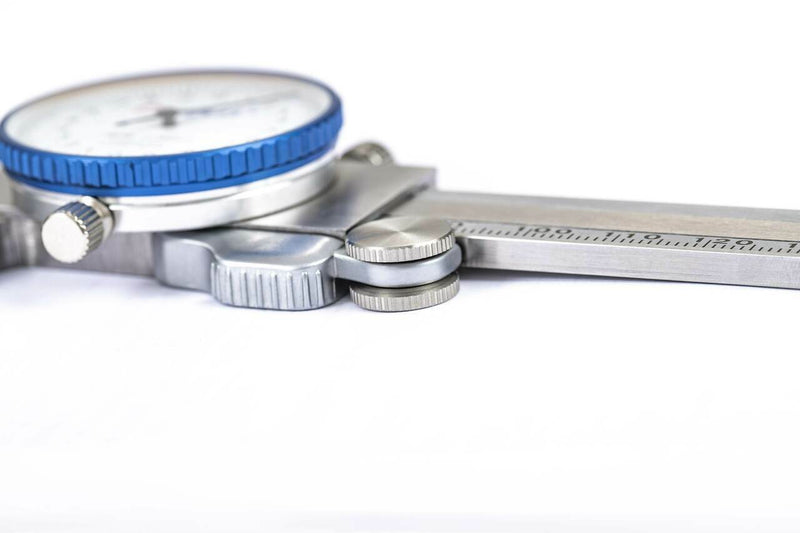

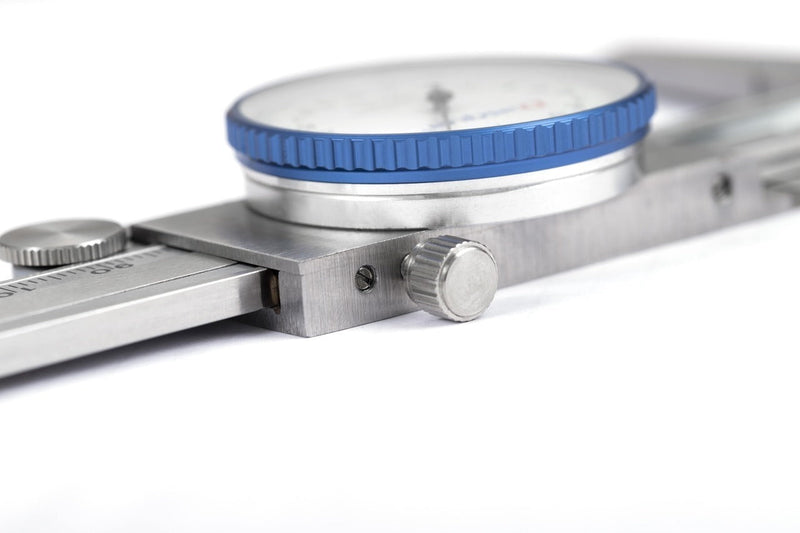

These three Series are designed in strict accordance with DIN862 and feature a tough, double shock-proof gearing system. They are suitable for measuring outside diameter, inside diameter, step and depth distances. Made of solid stainless steel and completed with distinct markings and digits laser etched onto a satin polished finish. A large dial display on a bright white background with clear, easy to read markings and a locking screw for stable reading finish off a very capable and reliable set of Dial Calipers.

• Type: Dial Vernier Caliper
• Measurement Range: 0-150mm / 0-6.0"
• Resolution: 0.02mm / 0.0001"
• Accuracy: 0.03mm / 0.0012"
• L - Overall Closed Length (mm): 236
• A - Outer Jaw Tip to Inner Jaw Tip Distance A (mm): 77
• M - Max Length Outer Jaw Reach M (mm): 40
• C - Max. Length Inner Jaw Reach C (mm): 16.5Battery: N/A
• Specification Standard: DIN862
• Intended Use: Heavy-Use Industrial Performance
• Dasqua Series: 1331
• B- Ruler Width B (mm): 16
• H - Ruler Thickness H (mm): 3.5
