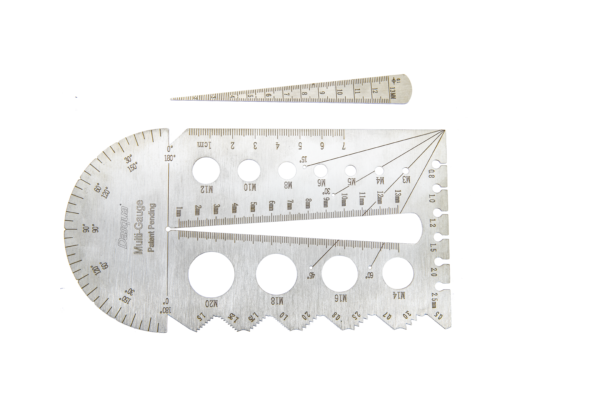

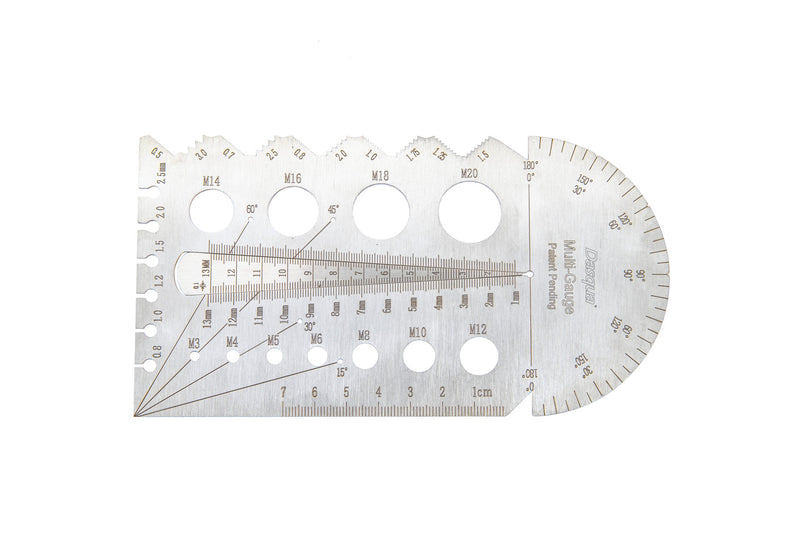

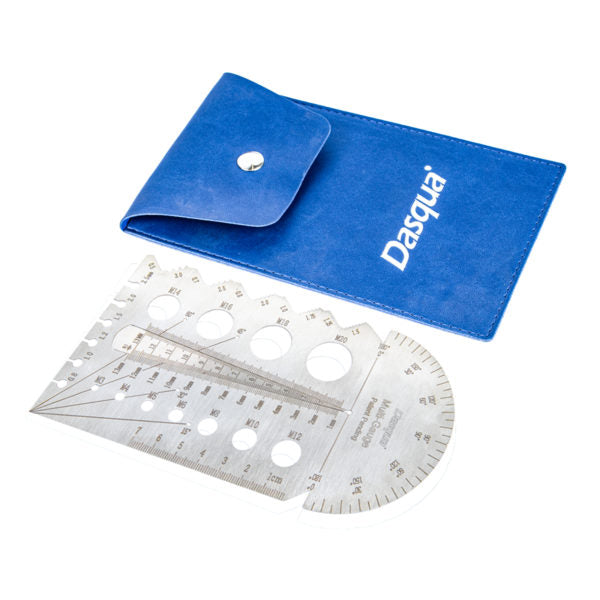

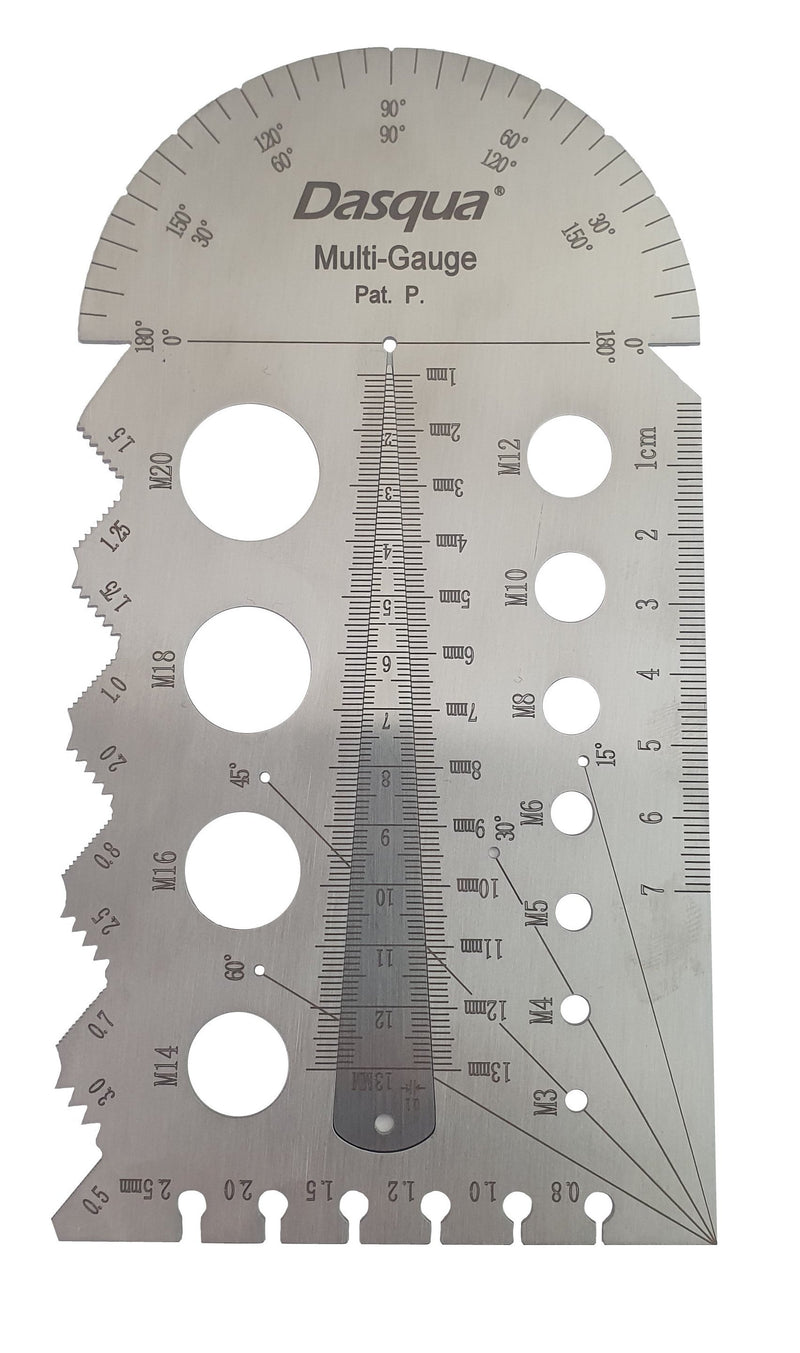

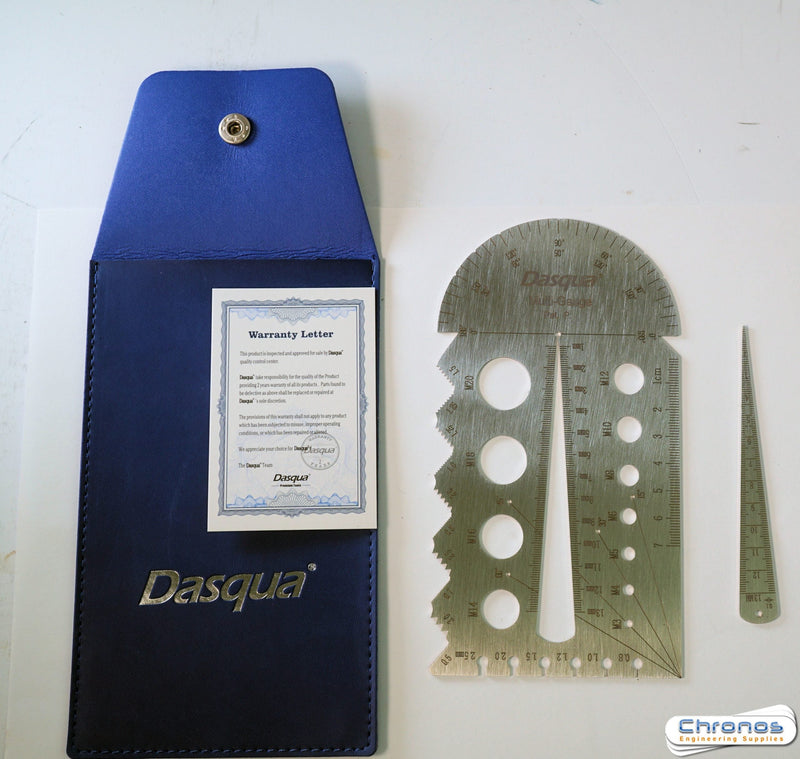

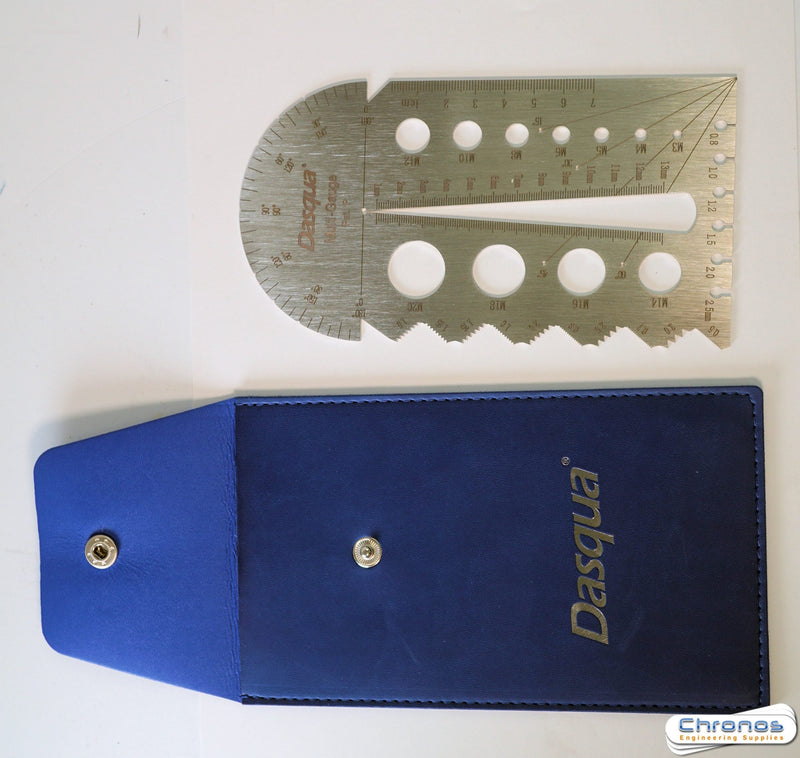

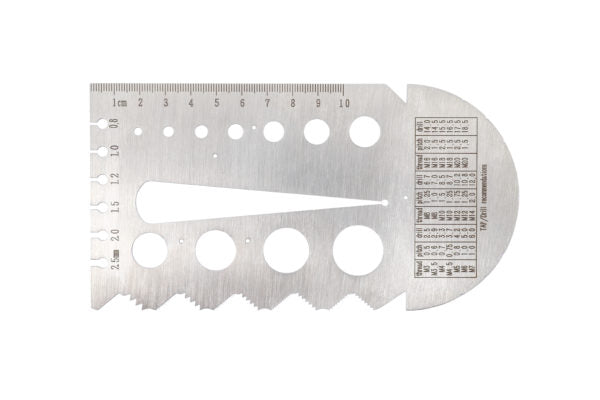

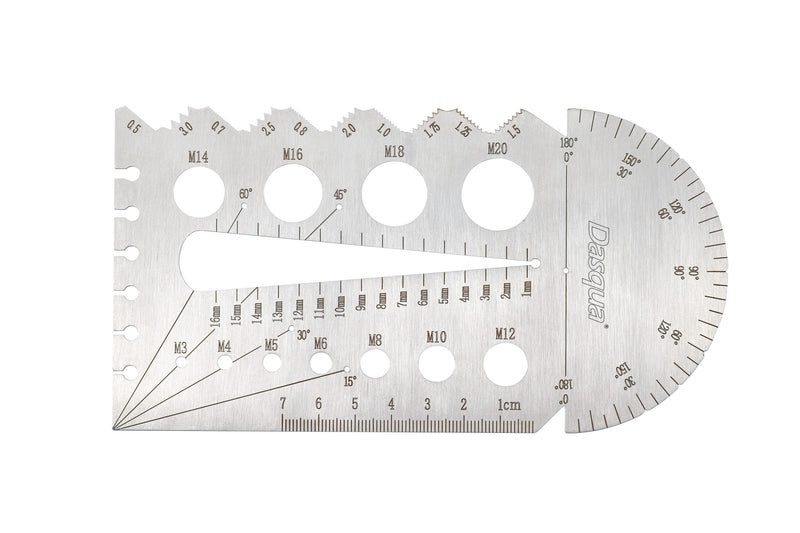

Stainless Steel Multi Function Gauge with Taper

• Made of stainless steel, polished
• Multi-function thread pitch identify
• Quick to use, very accurate and convenient sizes

Applications

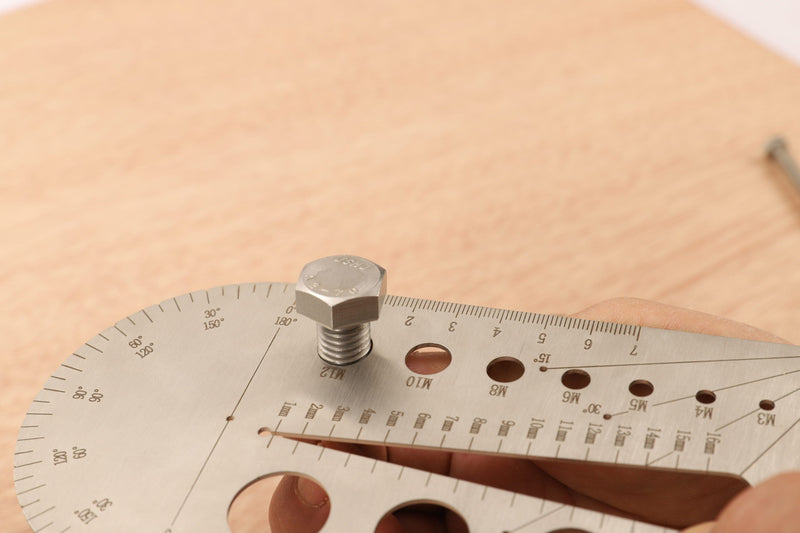

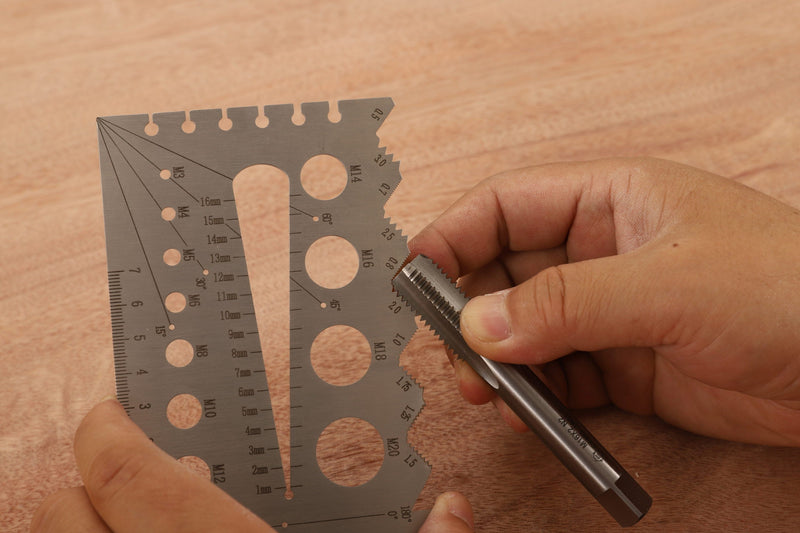

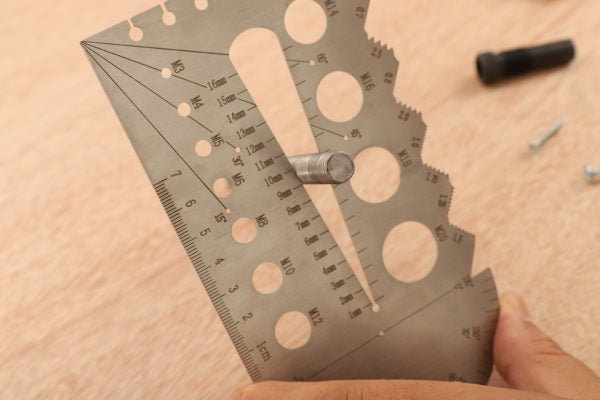

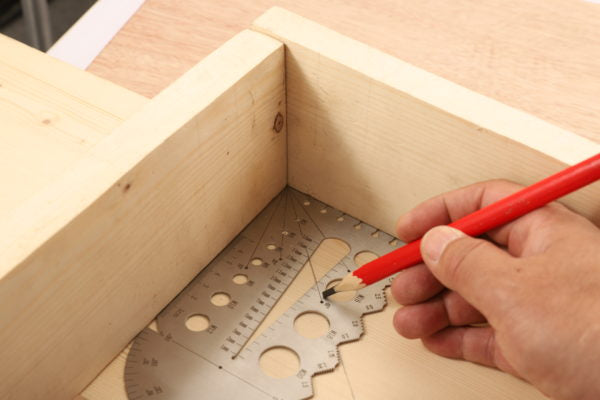

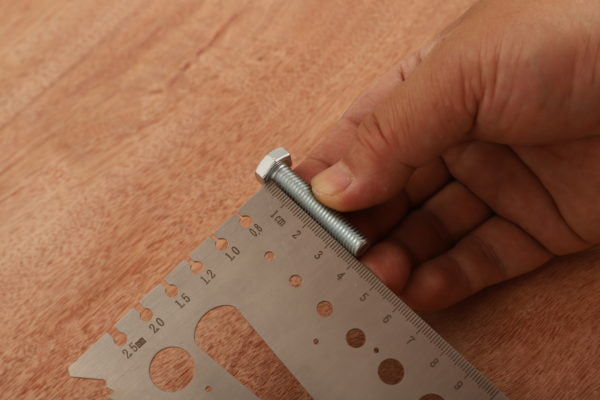

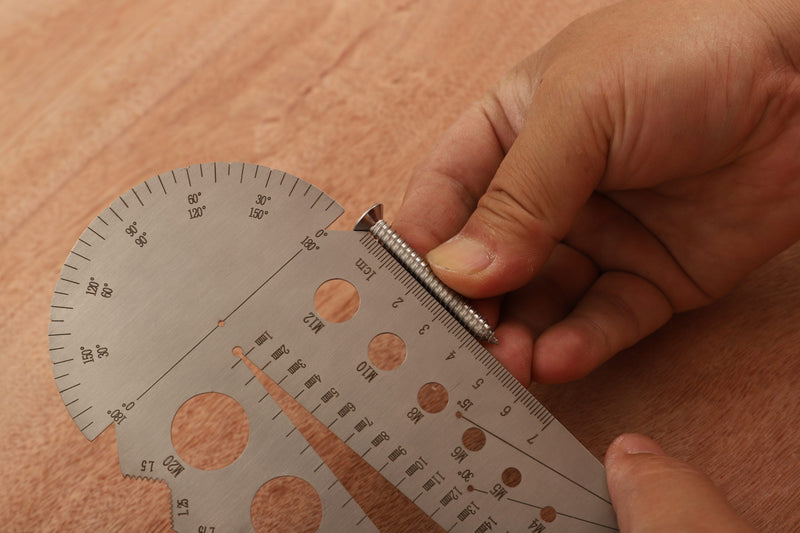

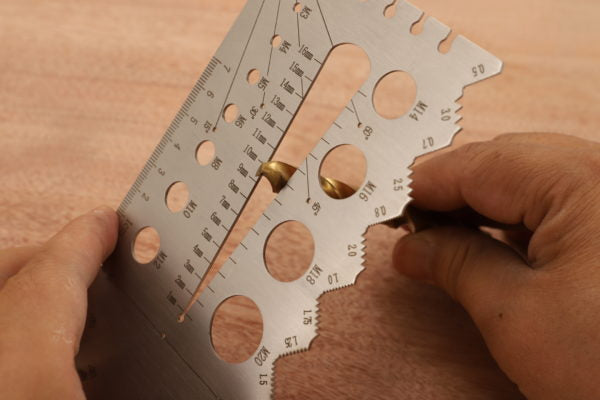

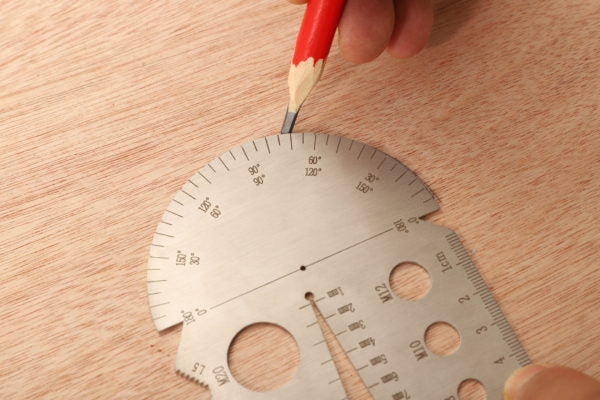

• You can use this gauge to identify the size of  a bolt, determine taps before tapping and for checking thickness of washers and diameters of electric wire, marking line, measuring angle etc.

Specification

• Size – 90 x 170mm
• Material – Stainless Steel
• Thickness – 1.25mm
• Pitches – 3.0 , 2.5 , 2.0 , 1.75 , 1.5 , 1.25 , 1.0 , 0.8 , 0.7 , 0.5mm
• Hole Diameters for Bolts – M3 , M4 , M5 , M6 , M10 , M12 , M14 , M16 . M18 , M20

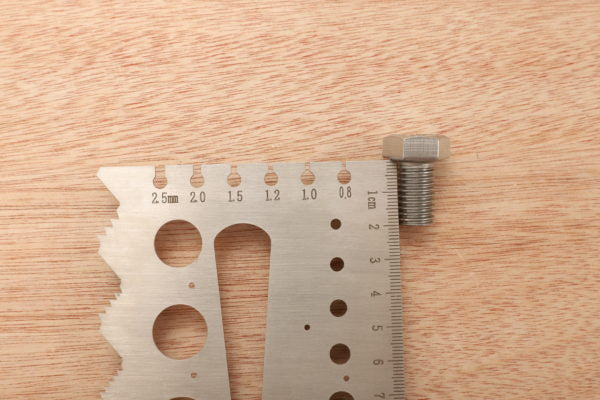

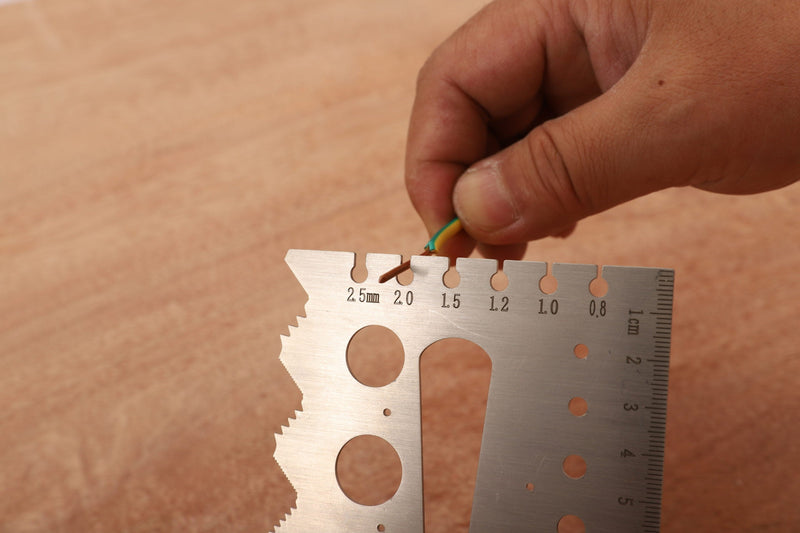

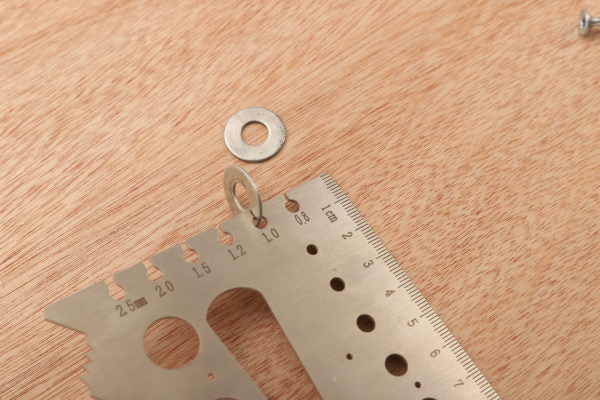

• Slots for wire and washer – 0.8 , 1.0 , 1.2 , 1.5 , 2.0 , 2.5mm
