Accud | Pitch Gauge Metric 60º 0,4-7,0Mm

ACCUD is a dedicated supplier of measuring instruments. Their product line not only includes traditional tools such as calipers, micrometers, dial gauges, digital indicators, height gauges and gauge blocks, but also high-tech measuring instruments like hardness testers, force/torque gauges to cutting edge vision-based measuring machines and much more.

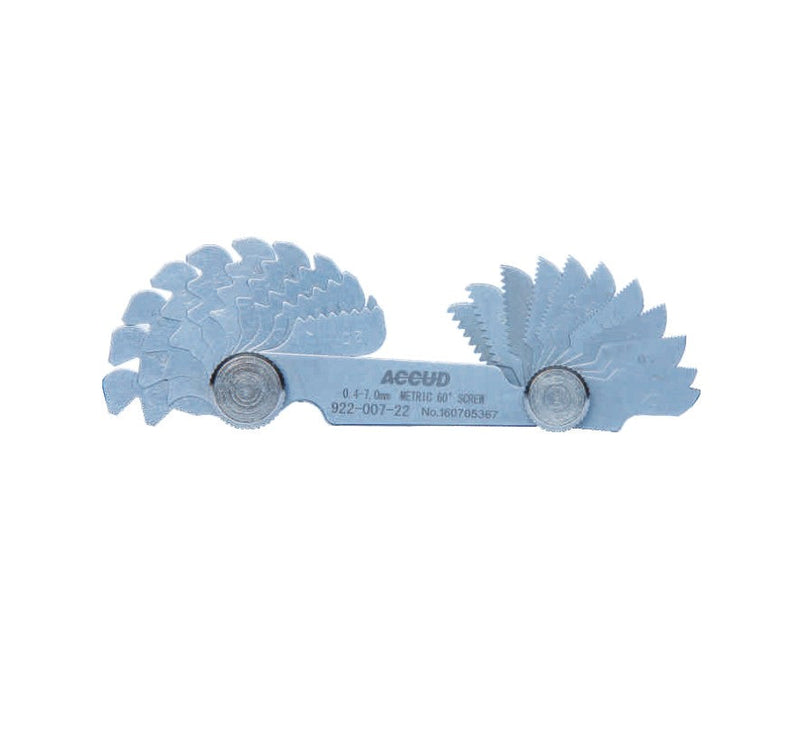

Metric 60º Pitch Gauge 0,4-7,0mm

The Accud 0,4-7,0mm 60º Metric Pitch Gauge makes determining teeth spacing/pitch of spur gears and screws quick and easy. Simply insert the teeth in between the recesses of the gear or screw to determine the pitch.

• Light and compact design
• 22 different sized gauges held securely together within the handle

Specifications

• Graduations (mm): 0,4, 0,5, 0,6, 0,7, 0,75, 0,8, 0,9, 1, 1,25, 1,5, 1,75, 2, 2,5,
  3, 3,5, 4, 4,5, 5, 5,5, 6, 6,5 & 7mm
• Number of gauges: 22
• Thread: 60º
• Range: 0,4-7,0mm
• Accuracy: ±0,07mm
