18|BX Bandsaw

(Display model)

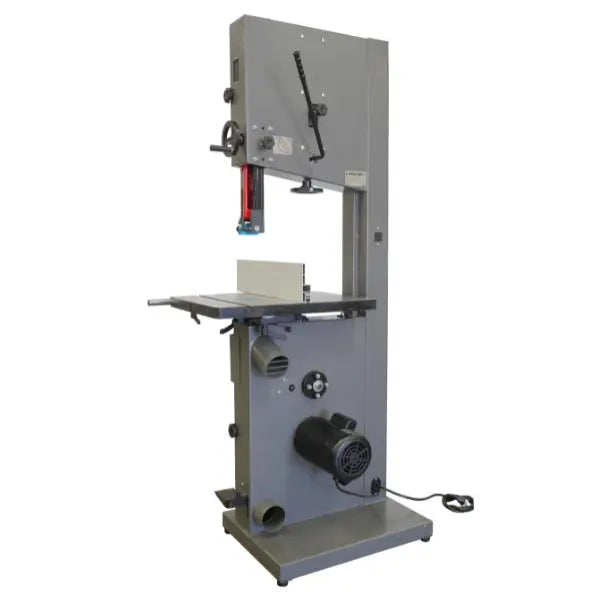

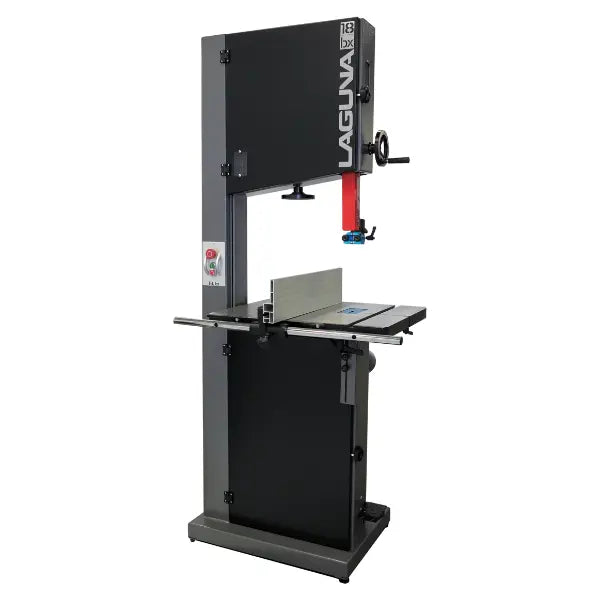

The 18|BX Bandsaw follows in the traditions of high-performance and reliability established by the widely-used Laguna Tools 14|12 and 14|bx models. The 18|bx is built around a 3HP, 220V motor and 145″ (368cm) blade for consistent results, cut-after-cut, regardless of wood material.

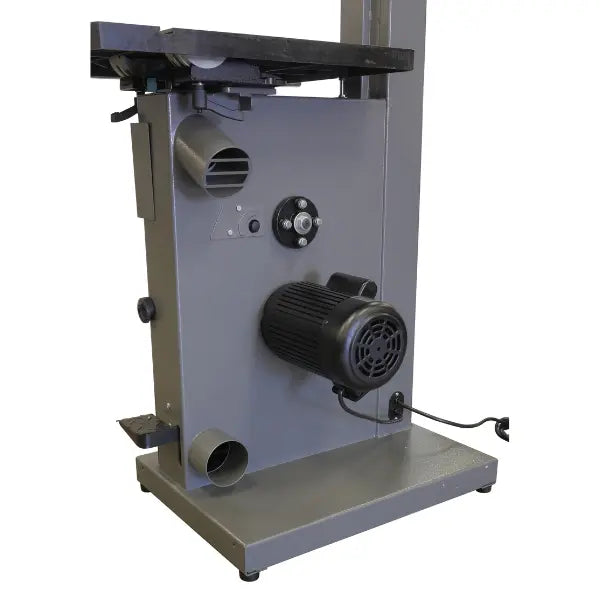

• Motor: 3HP 220 Volt
• Resaw Height: 16″ (406mm)
• Fence: Hi/Low Fence, 5-3/4″ x 22-1/2″ (146mm x 572mm)
• Foot Break: Disc Break
• Table: Cast Iron, 20″ x 26″ (508mm x 660mm)

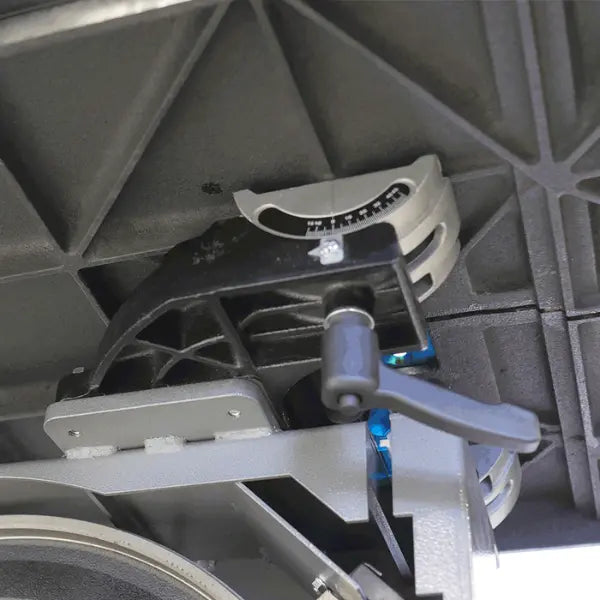

• Tilt: +45° Right/ -6° Left
• Mitre Slot: 3/8″ x 3/4″ (10mm x 19mm)
• Blade Length: 145″ (3683mm)
• Guides: Laguna Ceramic Guides

Specifications

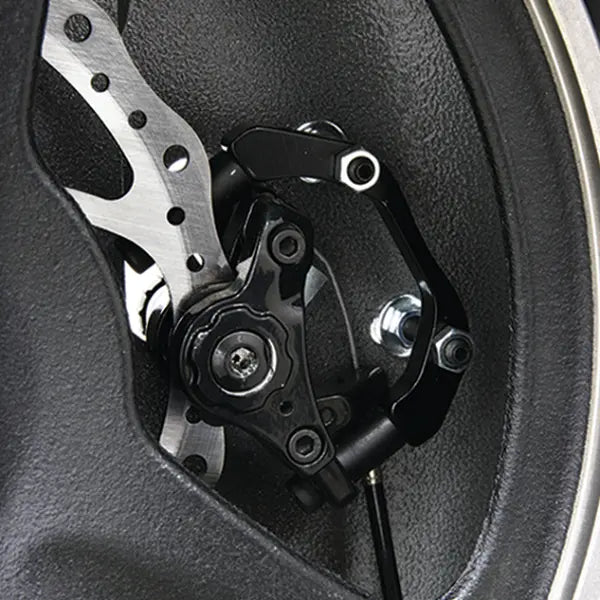

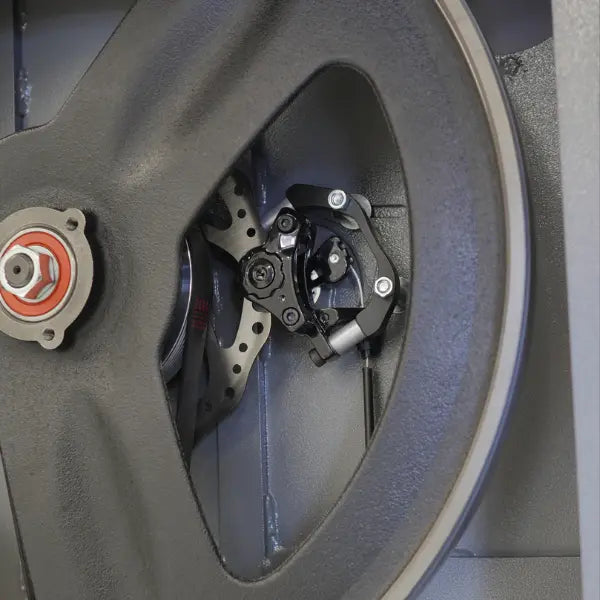

• Disc-Brake with Micro Switch
• 220V Outlet on back for light
• Window for Tension
• Magnetic Blade Tension Guide

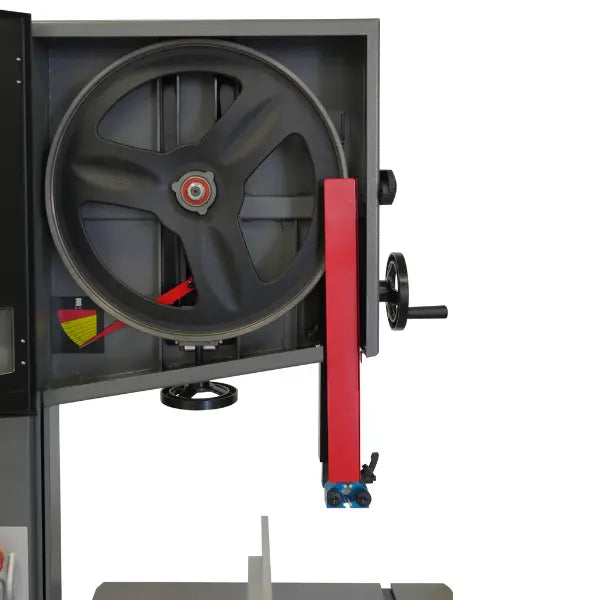

• Worm Gear & Pinion Upper Guide

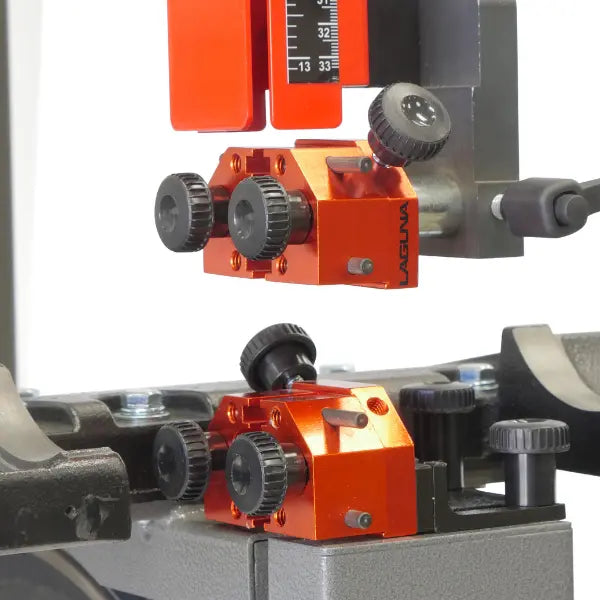

• 10 Point Laguna Ceramic Guides
• Flat Poly-Groove Drive Belt
• Premium Anodized Insert with Micro Adjustment

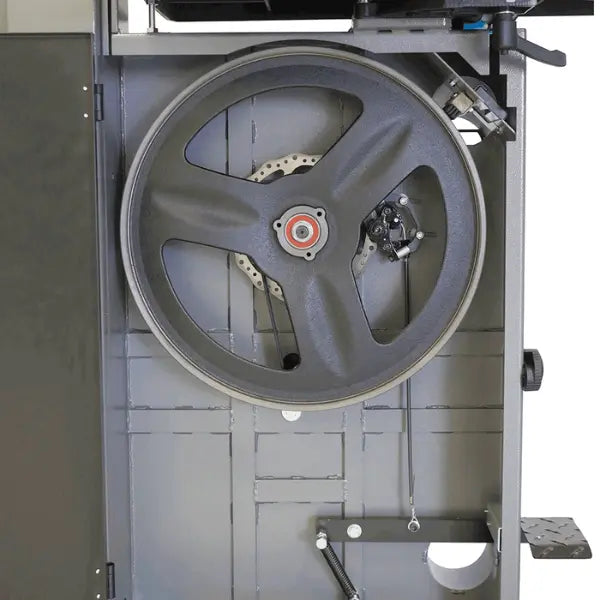

• Dynamically Balanced Cast Iron Wheels
• Urethane Single Piece Snap-On Tire
• Cast Table Size: 20″ x 26″ (508mm x 660mm)
• Table Tilt: -6°, +45°
• Quick-Release Tension
• Hi/Low Anodized Aluminum Fence: 22-½″ x 5-¾″ x ½″ (572mm x 146mm x 13mm)
• Table Height: 38″ (965mm)
• Dust Ports: 4″ x 2 (102mm)
• Overall Height: 77-¾″ (1975mm)
• Dimensions (Base): 27″ x 20″ (686mm x 508mm)
• Dimensions Overall: 36″ x 30″ (914mm x 762mm)

The 18|BX Bandsaw follows in the traditions of high-performance and reliability established by the widely-used Laguna Tools 14|12 and 14|bx models.

NB: This bandsaw is NOT supplied with a blade.
